Quick Details
-
Model Number:
-
YQS175
-
Frequency:
-
50/60Hz
-
Usage:
-
lift machine
-
Speed:
-
2850RPM
-
Application:
-
submersible pump
-
Winding:
-
100% Cooper Wire
-
Voltage:
-
380V/660V/3000V/6000V/10000kV
-
Protection class:
-
IP68
-
material:
-
stainless Steel
-
Color:
-
Silver
-
Poles:
-
2P/4P
-
Name:
-
High voltage NEMA standard water proof submersible electric motors
-
Certification:
-
CCC, ce
Quick Details
-
AC Voltage:
-
380V/400V/660V/3000V/6000V/10kV
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Jinaote
-
Model Number:
-
YQS175
-
Frequency:
-
50/60Hz
-
Usage:
-
lift machine
-
Speed:
-
2850RPM
-
Application:
-
submersible pump
-
Winding:
-
100% Cooper Wire
-
Voltage:
-
380V/660V/3000V/6000V/10000kV
-
Protection class:
-
IP68
-
material:
-
stainless Steel
-
Color:
-
Silver
-
Poles:
-
2P/4P
-
Name:
-
High voltage NEMA standard water proof submersible electric motors
-
Certification:
-
CCC, ce

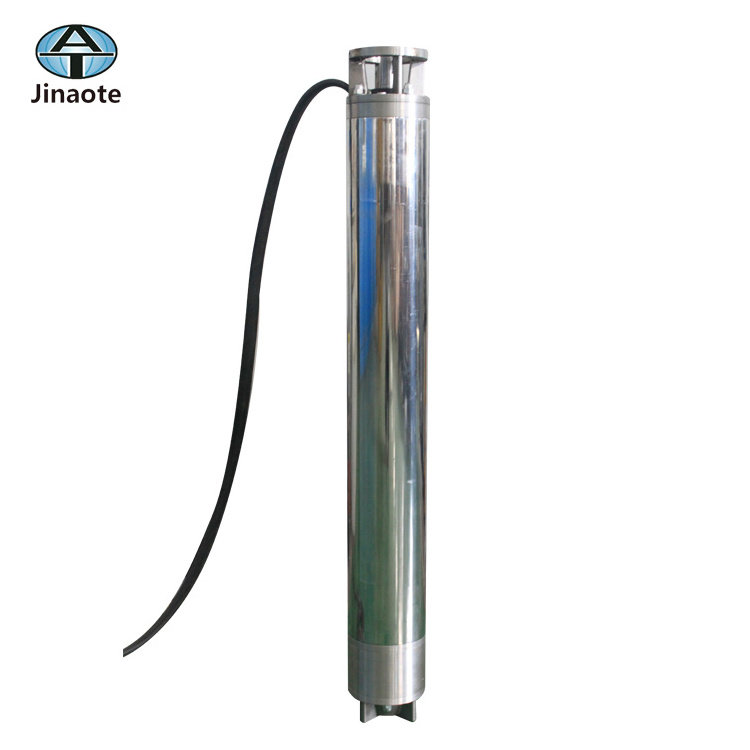

High voltage NEMA standard water proof submersible electric motors
High voltage NEMA standard submersible electric motors are water-filling and sealed 3-phase asynchronous motors . They are mainly used in deep well to drive submersible pumps, so as to lift underground water for production and living usage for plants , mines , farm and resident. High voltage submersible motor have advanced technology , long service life and easy maintenance , are presently the most ideal water lifting equipment for deep well.
| Product name | Submersible electric Motor (NEMA Standard) |
|---|---|
| Working Principle | Submersible |
| Driver | Electric |
| Outer diameter | 6inch, 7inch, 8inch, 10inch, 12inch, 14 inch, 16inch. 18inch up |
| Voltage | 220V/380V/400V/460V/660V/3000V/6000V/10000V |
| Frequency | 50hz/60hz |
| Max Temperature | 130°C |
| Material | Cast iron,Stainless steel 304, 316, 316L, 416 L or bronze |
| Shaft seal type | Mechanical seal, shaft sealing ring |
| Installation | Vertical or horizontal |
| Main applications | Submersible Pump,Borehole pump, Openwell pump, Water supply, Mining and Industry. |
| Feature | Water filled,Three phase,Water-proof, Explosion Proof motor, High voltage, Low voltage motor |
| Maximum Power | 6000KW(8000HP) |
Technical Parameters:
|
|
Rated Capacity(HP/KW) |
Rated voltage(V) | Rated current(A) | Efficiency (%) | Power Factors |
|
YQS175-7.5 |
10/7.5 |
380 |
18.4 |
77.5 | 0.80 |
| YQS175-9.2 |
12.5/9.2 |
22.1 |
78 | 0.81 | |
| YQS175-11 |
15/11 |
26.5 |
79 | 0.81 | |
| YQS175-13 |
17.5/13 |
30.1 |
80.0 | 0.82 | |
| YQS175-15 |
20/15 |
34.5 |
80.0 | 0.82 | |
| YQS175-18.5 |
25/18.5 |
42.3 |
80.5 | 0.82 | |
| YQS175-22 |
30/22 |
49.4 |
81.0 |
0.83 |
|
| YQS175-25 |
35/25 |
55.8 |
81.0 |
0.83 |
|
| YQS175-30 |
40/30 |
65.4 |
83.0 |
0.84 |
|
| YQS175-37 |
50/37 |
80 |
83.0 |
0.84 |
|
| YQS175-45 |
61/45 |
96 |
83.5 |
0.85 |
|
| YQS175-55 |
75/55 |
117 |
84.0 |
0.85 |
|
| YQS175-63 |
86/63 |
134 |
84.0 |
0.85 |
|
| YQS175-75 |
102/75 |
160 |
84.0 |
0.85 |
