Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Wheel Base:
-
4000 mm
-
Engine Rated Power:
-
194 kw/(r/min)
Quick Details
-
Weight (KG):
-
70000
-
Rated Lifting Moment:
-
2033kn.m
-
Max. Lifting Height:
-
58.1m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Wheel Base:
-
4000 mm
-
Engine Rated Power:
-
194 kw/(r/min)
Products Description

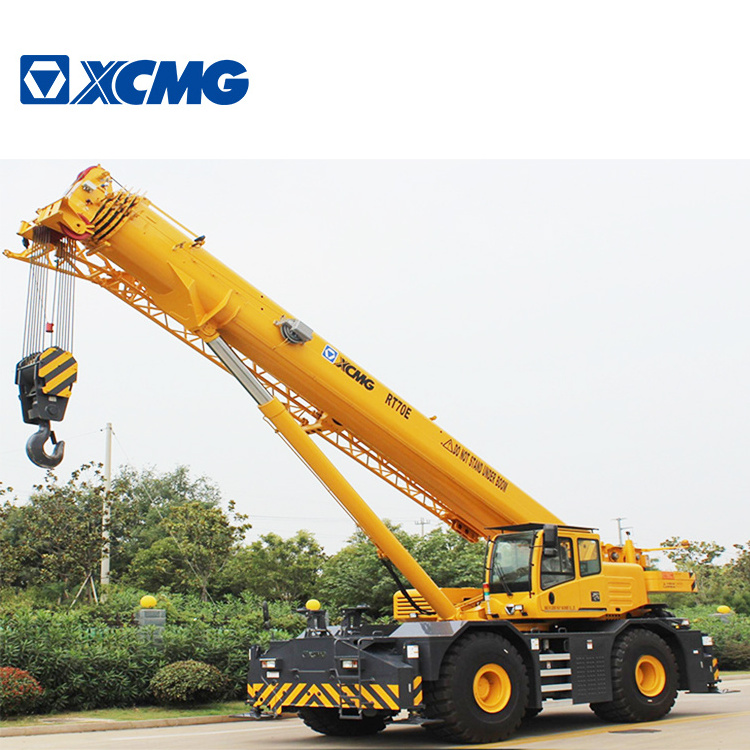

XCMG Hot Sale 70 ton Rough Terrain Crane RT70E Mobile Hydraulic Lifting Crane
RT70E is suitable for lifting operation in oilfields, mines, road and bridge construction, etc.
1. Energy-saving and environment friendly
1. Energy-saving and environment friendly
* Specialized energy-saving hydraulic system.
* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.
* Elevating control system for freefall, without additional power needed.
2. High mobility and efficiency
2. High mobility and efficiency
* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.
* Four steering modes are adopted , and the min. turning radius is 6.1m with better job site adaptability.
3. Powerful lifting capacity
3. Powerful lifting capacity
* Double-cylinder plus ropes telescoping system, stable and reliable
* 5-section boom of 43.2m and jib of 17.5m with wide operation range.
Product Paramenters
|
Project
|
Unit
|
Parameter
|
||
|
Length of Entire Vehicle
|
(mm)
|
13135
|
||
|
Width of Entire Vehicle
|
(mm)
|
3180
|
||
|
Height of Entire Vehicle
|
(mm)
|
3750
|
||
|
Wheel Base
|
(mm)
|
4000
|
||
|
Wheel Track
|
(mm)
|
2400
|
||
|
Weight Parameters
|
|
|
||
|
Gross Vehicle Weight When Driving
|
(kg)
|
49065
|
||
|
Axle Load
|
(kg)
|
(Front Axle)25032/(Rear Axle)24033
|
||
|
Kinetic Paremeter
|
|
|
||
|
Driving Parameters
|
|
|
||
|
Max Travel Speed
|
(km/h)
|
25
|
||
|
Min Travel Speed
|
(km/h)
|
2
|
||
|
Swerve
|
|
|
||
|
Min Turning Radius
|
(m)
|
12.2
|
||
|
Head Min. Turning Diameter
|
(m)
|
-
|
||
|
Max Gradeability
|
(%)
|
65
|
||
|
Min. Ground Clearance of Machine
|
(mm)
|
467
|
||
|
Approach Angle
|
(°)
|
20
|
||
|
Departure Angle
|
(°)
|
17.5
|
||
|
Braking Distance
|
(m)
|
9
|
||
|
Fuel Consumption per 100kms
|
(L)
|
-
|
||
|
Major Performance Parameters
|
|
|
||
|
Max. Rated Lifting Capacity
|
(t)
|
70
|
||
|
Min. Rated Range
|
(m)
|
2.5
|
||
|
Max. Load Moment of Basic Jib
|
(kN·m)
|
2033
|
||
|
Radius of Gyration of Turntable Tail
|
(mm)
|
4220
|
||
|
Outrigger
|
|
|
||
|
Longitudinal
|
(m)
|
7.3
|
||
|
Horizontal
|
(m)
|
7.2/5.6
|
||
|
Max. Lifting Height
|
|
|
||
|
Basic Boom
|
(m)
|
11.3
|
||
|
Longest Main Boom
|
(m)
|
43.3
|
||
|
Longest Main Boom + Auxiliary Boom
|
(m)
|
58.1
|
||
|
Boom Length of Crane
|
|
|
||
|
Basic Boom
|
(m)
|
11.32
|
||
|
Longest Main Boom
|
(m)
|
43.2
|
||
|
Longest Main Boom + Auxiliary Boom
|
(m)
|
60.7
|
||
