Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIC
-
Dimension(L*W*H):
-
2000*1000*1500mm
-
Weight:
-
600 KG, 600kg
-
Product name:
-
syrup filling capping machine
-
Suitablle for:
-
glass bottle
-
Filling nozzle:
-
2
-
Filling volume:
-
5-100ml
-
Filling speed:
-
20-30bottles/min
-
Machine material:
-
SUS304/316
-
Dimension:
-
1230*700*1400mm
-
Operator:
-
1people
-
Control:
-
button+touch screen
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water, Oil
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIC
-
Dimension(L*W*H):
-
2000*1000*1500mm
-
Weight:
-
600 KG, 600kg
-
Product name:
-
syrup filling capping machine
-
Suitablle for:
-
glass bottle
-
Filling nozzle:
-
2
-
Filling volume:
-
5-100ml
-
Filling speed:
-
20-30bottles/min
-
Machine material:
-
SUS304/316
-
Dimension:
-
1230*700*1400mm
-
Operator:
-
1people
-
Control:
-
button+touch screen
This machine is used for filling hemp oil, syrup or oral liquid into small glass or plastic bottle withe plastic or metal cap.
The main steps are: Bottle loading-Filling-Loading cap-Capping-Output, no bottle no filling, easy operation but meet high speed production.
|
Weight
|
850kg
|
|
Voltage
|
220V 50Hz
|
|
Filling volume
|
10-100ml
|
|
Air supply
|
0.6-0.8Mpa
|
|
Dimension
|
2400*1000*1500mm
|
|
Motor power
|
2KW
|
|
Filling speed
|
50-80 bpm
|
|
Air consumption
|
1.3 m³/h
|

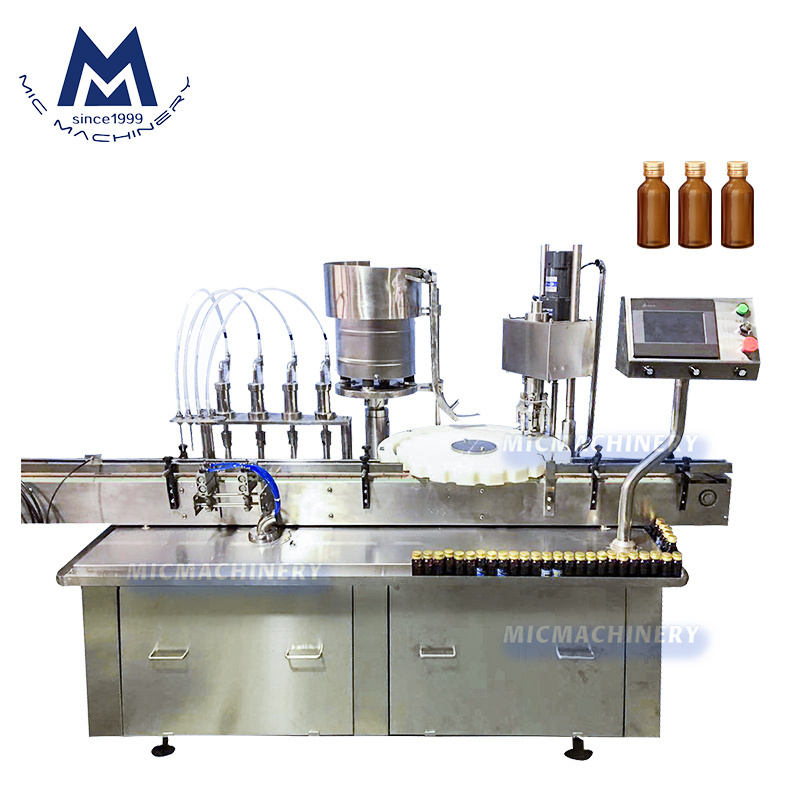

Whole machine view
This essential oil filling capping labeling machine line can be connected with bottle feeding table, filling cappingunit, labeling unit and bottle collectingtable to be a complete production line
Vibration tray for cap
After filling, the machine will load the screw cap automatically.
Filling nozzle
This filling nozzle is suitable for liquid syrup, oral liquid filling
volume will customized According customer need filling accuracy, Filling stock will be set in the machine in advance
Cap screwing head
Finally, small cap will be screwed on the bottle by this cap screwing head
