Quick Details
-
Production Rate:
-
≤300
-
Feeding Length:
-
±0.01±9999.99
-
Wire Feed Speed:
-
0-135m/min
-
Cam Setting Value:
-
±0.1°-359.9°
-
Wire Feed Servo Motor:
-
1.5KW
-
Cam Servo Motor:
-
1.5KW
-
Power AC:
-
380V±10%V50HZ
-
Dimensions:
-
1360mmX750mmX1800mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Wire Diameter:
-
0.3-1.06mm
-
Outside Diameter:
-
Max 32mm
-
Production Rate:
-
≤300
-
Feeding Length:
-
±0.01±9999.99
-
Wire Feed Speed:
-
0-135m/min
-
Cam Setting Value:
-
±0.1°-359.9°
-
Wire Feed Servo Motor:
-
1.5KW
-
Cam Servo Motor:
-
1.5KW
-
Power AC:
-
380V±10%V50HZ
-
Dimensions:
-
1360mmX750mmX1800mm

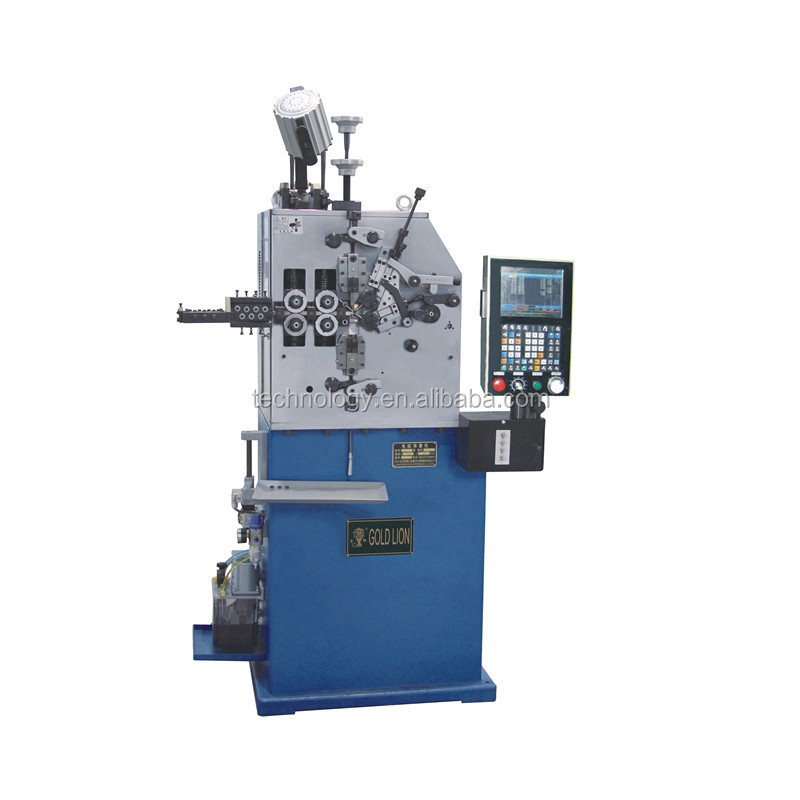

| Model | CK316 |
| Wire Diameter(mm) | Φ0.3-Φ1.6 |
| Outside diameter(mm) | MaxΦ32 |
| Production Rate(pcs/min) | ≤300 |
| Feeding length(mm) | ±0.01±9999.99 |
| Wire Feed Speed | 0-135m/min |
| Cam Setting Value | ±0.1°-359.9° |
| Wire Feed Servo Motor | 1.5KW |
| Cam Servo Motor | 1.5KW |
| Pitch Servo Motor | 0.4KW |
| Power AC | Three phase 380V±10%V50HZ |
| Dimensions(L×W×H)(mm) | 1050×880×1600 |
| Machine Weight | 550KG |
+
Zhejiang Shengzhou ChuangYu Machinery Co.,Ltd. covers an area of 68000 square meters, has 380 employee, and own development research center. The produce has the feature of "fast debugging, precise and accurate, stable and reliable, easy operation".
The machine is enjoyed by Tianjin JL Railway Transport Equipment Ltd., South Huiton Co.,Ltd., China Jianzhong Nuclear Fuel Co., Ltd., Inner Mongolia First Machinery Group Corporation and so on. Combined with social new technology, new material and new equipment constantly emerging, product update and specification extension, making the CNC spring machinery for higher precision, more complex spring and higher automation degree.
| Packaging | In plywood case or according to your request |
| Shipment | Within 4 weeks after receving your deposit |
-
Can you send me some spring samples for checking?
- Sure. Before you place the order, samples can be sent to you for checking. What's more, overseas installation and the consequent training is available.
-
What payment is acceptable?
- Your payment can be made via L/C,D/A,D/P,T/T,Western Union, Paypal. If you have other preference, please negotiate.
