Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16/19/22/25A
-
Diameter:
-
16/19/22/25mm
-
Switch Combination:
-
1NO1NC/2NO2NC
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red/Green/Yellow/Blue/White/Orange
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/5A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-

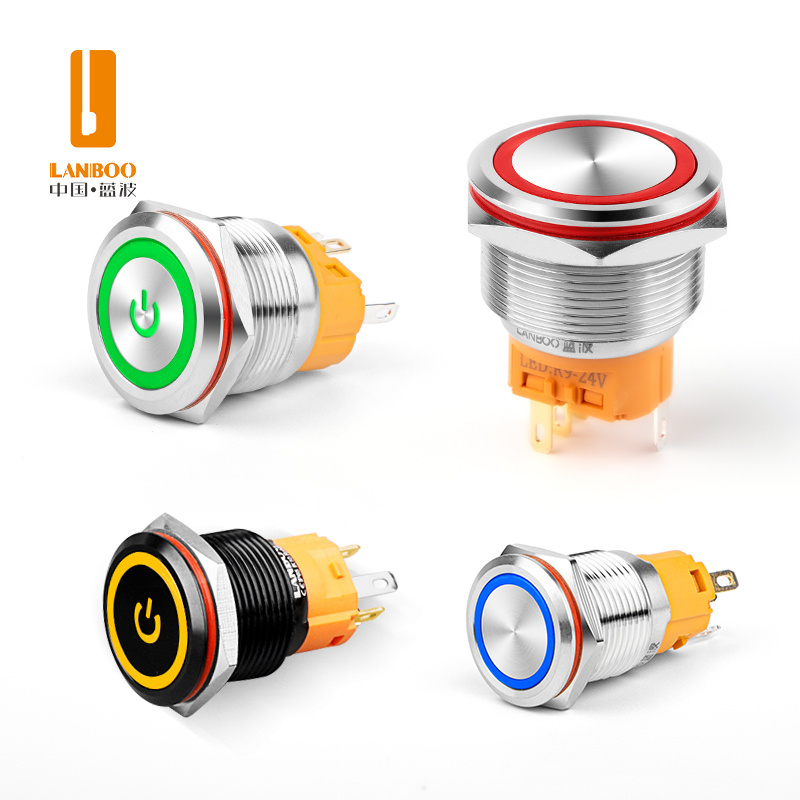

Metal push button switch
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16/19/22/25A
-
Diameter:
-
16/19/22/25mm
-
Switch Combination:
-
1NO1NC/2NO2NC
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red/Green/Yellow/Blue/White/Orange
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/5A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
Metal push button switch
| Mounting Aperture | 16mm/19mm/22mm/25mm |
| Serial Number | Type A metal push button switch |
| Head shape | Flat Head / High Head |
| Switch combination | Self-locking / Self-recovering |
| Action form | 1NO1NC/2NO2NC Independent Pin |
| Waterproof level | Customized IP67, Anti-collision IK10 (refer to GB/T 20138) |
| Heating current | Ith: 5A, 250VAC |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Resistive load | AC-15: 110V:1A,220V:0.5A, DC-13: 12V/24V:1A |
| Inductive load | AC-15: 110V/220V:0.2A, DC-13: 110V:0.2A |
| Glowing shape | Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol |
| Glow color | Red, Green, Blue / Customized: Yellow, White |
