Quick Details
-
Product name:
-
swing barrier
-
Material:
-
304 Stainless Steel
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Working environment:
-
Temperature: -10 ~ +60
-
Passage Width:
-
550mm-1000mm
-
Passage Direction:
-
Bi-drectional
-
Communication Interface:
-
RS485/Relay Signal
-
Color:
-
Customized Color
-
Application:
-
Security Access Control Management
-
Warranty:
-
Life Time Technical Support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINYUN
-
Model Number:
-
XY-B168A
-
Product name:
-
swing barrier
-
Material:
-
304 Stainless Steel
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Working environment:
-
Temperature: -10 ~ +60
-
Passage Width:
-
550mm-1000mm
-
Passage Direction:
-
Bi-drectional
-
Communication Interface:
-
RS485/Relay Signal
-
Color:
-
Customized Color
-
Application:
-
Security Access Control Management
-
Warranty:
-
Life Time Technical Support

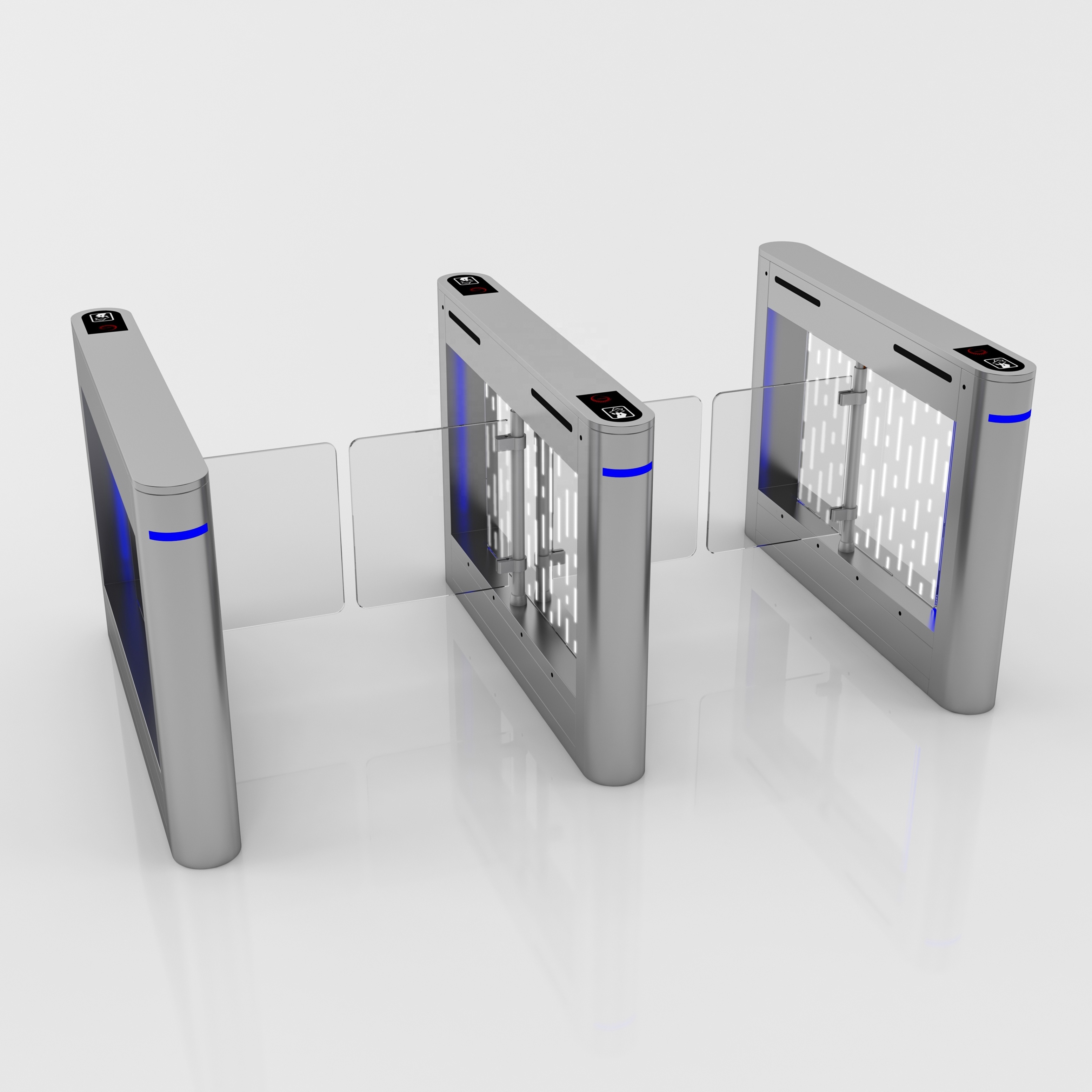

Luxury Security Remote Access Control System Rfid Scanner Qr Code Reader Barrier Swing Turnstile
|
1. Material |
304stainless steel, thickness:1.26mm(full thickness) |
|
2. Dimension |
L1400*W168*H1000mm. |
|
3. Channel width |
≤550mm |
|
4. arm material |
Stainless steel / transparent acrylic optional |
|
5. Infrared |
standard 6 pairs |
|
6. Environmental requirements |
waterproof model, which can be used indoors and outdoors(canopy). |
|
7. Communication Interface |
RS485, Dry contact |
|
8.Passage Direction |
Single directional/Bi-directional |
|
9 . Motor |
Dc brushless, encounter resistance rebound, anti-impact |
|
10 . Power of the whole machine |
180W. |
|
9. Traffic speed |
≥ 30 people per minute |
|
1 1 .Opening mode support |
swiping card, QR code, ESD, fingerprint, face recognition,etc. |
Product feature
1. The whole machine can be customized for high-end glaze plating, with a variety of colors to match each hue environment.
2. The machine cover is high-grade black cotton covered with anti-condensation.
3. Special structure design, arm swing is not limited by the fuselage, and can adapt to the scene with wide channel.
4. Standard 92mm fan negative pressure exhaust, effective cooling, dehumidification, reducing failure rate.
5. Each channel defaults to 6 pairs of infrared radiation protection.
6. Standard air switch.
7. main and auxiliary controller, standard on-line wire and expansion screw
