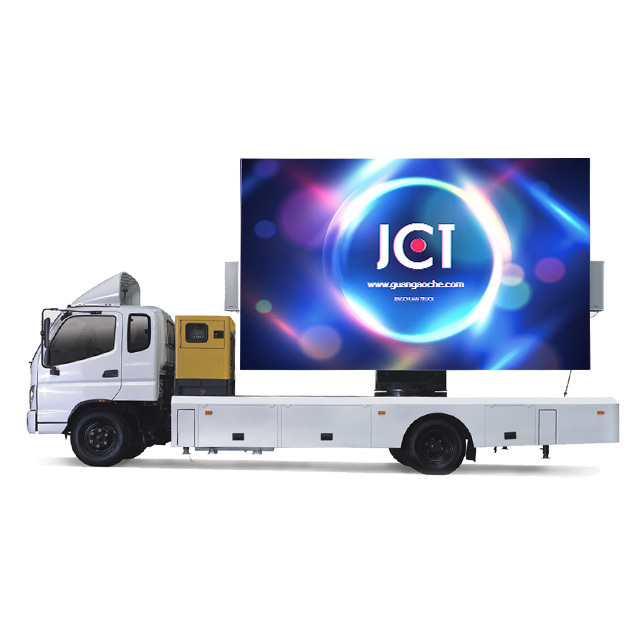

Integrate support and lifting system, make sure LED screen visual range is 360 degree, widely used for downtown, rallies, and other outdoor sporting events and live crowded occasions, the equipment running more stable, media show more outstanding.
- Product Details
- {{item.text}}
Quick Details
-
Panel Size:
-
4800*2400mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
E-R360
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Animation and Graphics and Videos
-
Pixels:
-
6mm and others
-
Screen Dimension:
-
4800mm(W)*2400mm(H)
-
Pixel Pitch:
-
6mm
Quick Details
-
Application:
-
Outdoor Advertising
-
Brand Name:
-
JCT
-
Color:
-
Black, Black and others
-
Panel Size:
-
4800*2400mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
E-R360
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Animation and Graphics and Videos
-
Pixels:
-
6mm and others
-
Screen Dimension:
-
4800mm(W)*2400mm(H)
-
Pixel Pitch:
-
6mm
Product Description
The perfect visual range , stable performance
|
Model
|
E-R360
|
|
|
|||
|
Chassis
|
|
|
|
|||
|
Brand
|
Fonton Ollin
|
External Dimension
|
8170mm(L)×2220mm(W)×3340mm(H)
|
|||
|
Power
|
Cummins
|
Total Weight
|
9995KG
|
|||
|
Seat
|
Single row 3seats
|
Curb Weight
|
9000KG
|
|||
|
LED SCREEN
|
|
|
|
|||
|
Screen size(Left)
|
4800mm(W) x 2400mm(H)
|
Dot Pitch
|
6 mm and others
|
|||
|
Average Power Consumption
|
400w/㎡
|
Brightness
|
≥7500cd/ m²
|
|||
|
Max Power Consumption
|
680w/㎡
|
Lifespan
|
100,000hours
|
|||
|
Silent Generator Group
|
|
|
|
|||
|
Brand
|
Ouma
|
Power
|
16KW
|
|||
|
Demention
|
1350mm x 800mm x 688mm
|
|
|
|||
|
Number of cylinders
|
Water-cooled inline 4-cylinder
|
|
|
|||
|
Power parameter
|
|
|
|
|||
|
Power System
|
220V,25AH
|
Input Voltage
|
220V
|
|||
|
Average power consumption
|
0.5kwh/㎡
|
Output Voltage
|
220V
|
|||
|
Multimedia Control System
|
|
|
|
|||
|
Monitor
|
Support 8-way signal input
|
|
|
|||
|
Media player
|
with various kinds of common used video connector, be available for PC, camera and etc.
|
|
|
|||
|
Sound
|
120W
|
Speak
|
200W
|
|||
|
Optional configuration
|
LED Screen&expansion tank&Voltage& other mechanical transmission is optional
|
|
|
|||
Related Products
Detailed Images
Our Company
About JCT:
Taizhou Jingchuan Electronics Technology Co.,Ltd,which named Shanghai Jingxiang Advertisement Communication Co.,Ltd ,was founded in 2007.We are the first culture and technology company who specialized in the LED advertising vehicle R&D, production and sales,as well as on-board commercial operation.
R&D SUPPORT:
Products involving mobile LED trucks,mobile LED trailers,mobile LED stage trucks,mobile LED container,mobile LED bus and other customization,total more than 30 models.
FAQ
1. Q: Why should we choose you?
A: Speciality: We focused on developing and producing outdoor LED mobile vehicles since 2007. Already got more than 30 products patents;
B: High-end: We always use the good quality accessories and leading technologies for supporting the best quality;
C: Support best solution: We support customization according to your requirements, so that the vehicles will have high performance cost ratio and best advertising effect!
2. Q: How about your after-sale service:
A: We support you original spare parts. Besides, we can give assistance in the following days by e-mail , telephone, video.
B: 24 months whole vehicle warranty
C: We are looking for the local service in overseas ,it is selected from our customers and developed as our dealers.
3. Q: What's your payment method?
A: T/T 30% deposit paid in advance, 70% of the balance before delivery;
B: LC 30days;
C: Western union;
4.Q: Where are you?
A: We and our factory are in Linhai,Taizhou city,it is near from Shanghai/Hangzhou/Ningbo,it is convenient to visit us by train from these cities.
5. Q: Can you provide the ISO9001 certificate or some others related?
A: Yes. We have rich experience for exporting to different countries such as Europe , South America, African, Russia and others This helps you importing successfully.
