- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Kaisteel
-
Model Number:
-
12mm Lead Glass
-
Weight:
-
4.2-4.8g/cm2
-
Dimensions:
-
2Pb,2.5Pb,3Pb,4Pb,4.5Pb
-
Product name:
-
12mm Lead Glass
-
Keyword:
-
Lead Glass
-
Shape:
-
Square Rectangle
-
Thickness:
-
12mm,15mm,18mm,20mm
-
Pb Equivalent:
-
2Pb,2.5Pb,3Pb,4Pb,4.5Pb
-
PAYMENT:
-
TT LC
-
Packing:
-
Customer's Requriements
-
Delivery time:
-
8-14 Days
-
Sample:
-
Freely Supplied
-
Application:
-
X-Ray Room.CT
Quick Details
-
Pb (Min):
-
99.994%
-
Powder Or Not:
-
Not Powder
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kaisteel
-
Model Number:
-
12mm Lead Glass
-
Weight:
-
4.2-4.8g/cm2
-
Dimensions:
-
2Pb,2.5Pb,3Pb,4Pb,4.5Pb
-
Product name:
-
12mm Lead Glass
-
Keyword:
-
Lead Glass
-
Shape:
-
Square Rectangle
-
Thickness:
-
12mm,15mm,18mm,20mm
-
Pb Equivalent:
-
2Pb,2.5Pb,3Pb,4Pb,4.5Pb
-
PAYMENT:
-
TT LC
-
Packing:
-
Customer's Requriements
-
Delivery time:
-
8-14 Days
-
Sample:
-
Freely Supplied
-
Application:
-
X-Ray Room.CT
Product Description

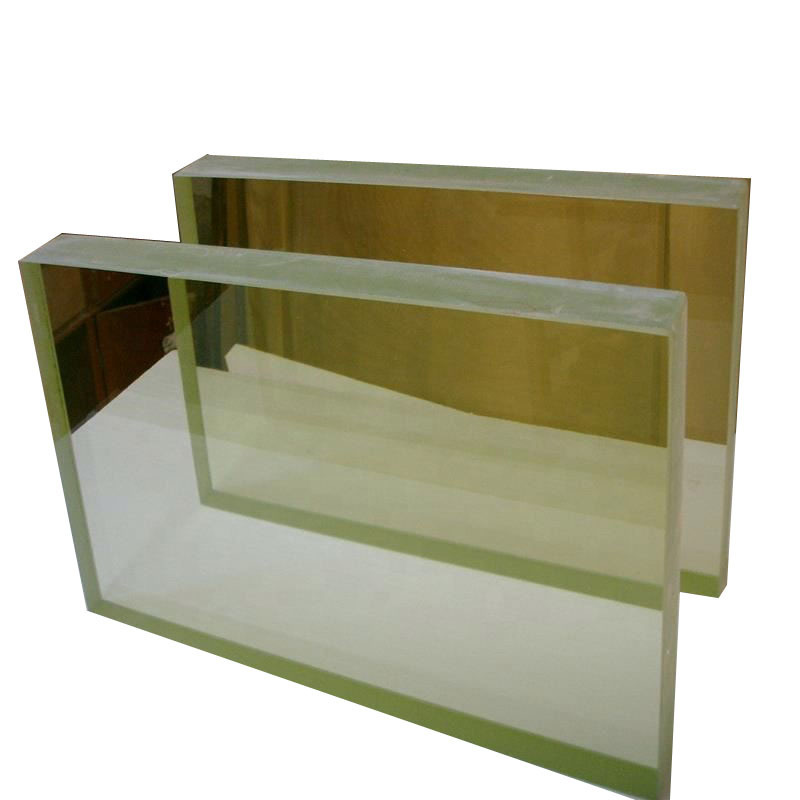

Ct Room Shielding Glass Window,Lead Window,X-Ray 12mm Lead Glass
composition:
In addition to glass forming materials such as silicon dioxide and boron trioxide, glass containing a large amount of lead oxide.
Used in the manufacture of optical glass, electric vacuum glass, low-temperature sealing glass, anti-radiation glass, lead crystal glass, flint-type optical glass, low melting glass, delay line glass, high refraction bead glass and artware glass, etc.
Measure lead shield: 1.0mmPb, 2.0mmPb, 3.0mmPb, 4.0mmPb, 5.0mmPb
Thickness: 8-25mm
|
Size(mm)
|
Thickness(mm)
|
|
600*400
|
8/10/12/15/18/20
|
|
1000*800
|
8/10/12/15/18/20/25
|
|
1200*1000
|
8/10/12/15/18/20/25
|
|
800*600
|
8/10/12/15/18/20/25
|
|
1500*1200
|
8/10/12/15/18/20
|
|
2000*1000
|
8/10/12/15/18/20/25
|
The role of lead glass
1. The main performance of lead glass is optically clear, transparent protective shielding and a low-quality protective glass plate with specified attenuation performance. Its attenuation performance is 0.22mmpb per millimeter.
2. The scope of application can be installed in the protective windows of the observation window laboratory of X-ray inspection and CT scanning, the lenses of goggles, the X-ray screens of airport security inspection and the protective windows for industrial flaw detection.
Precautions
1. Lead glass is a brittle material with a large specific gravity, so be sure to handle it gently when displacing it.
2. During installation, the surrounding glass must be staggered with the protective material of the wall to prevent radiation leakage at the joint. 3. Because lead glass is rich in lead and barium, lead glass is easily polluted by acid and alkali, and it is not easy to install or store in sour gas or humid environment.
4. The surface of lead glass is more easily scratched than ordinary glass and must be handled carefully.
Packing & Delivery
The lead glass is packaged in plastic and separated by plastic foam, and packaged in a carton and wooden box for external protection.
