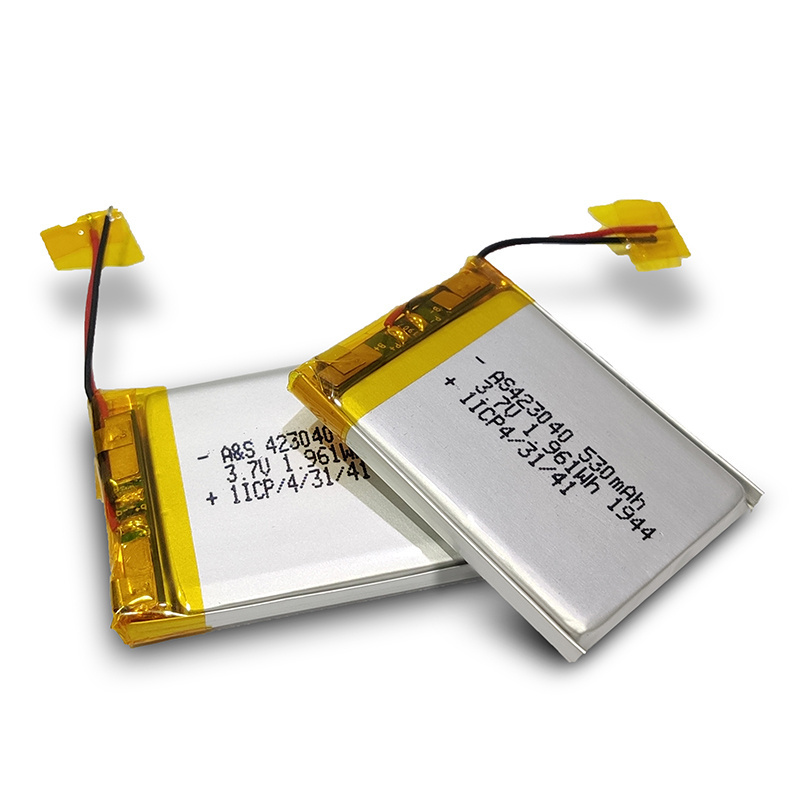

KC/CB/UL/UN38.3 Rechargeable lithium battery 423040 3.7V 530Mah li po battery for Tractor

Item

Rating

Note

3.1    Capacity

Typical

530mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell

Minimum

500mAh

3.2    Nominal Voltage

Average  3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell

3.3    AC Impedance Resistance

≤125mΩ

3.4    Discharge Cut-off Voltage

3.00V

3.5    Charge Current

106.0 mA

Standard Charge

3.6    Charge Voltage

4.2V

3.7    Max. Charge Voltage

4.23V

3.8     Storage humidity

< 75%RH

Hygrometer

3.9    Max. Charge Current

530mA

1.0CmA

3.10   Max. Discharge Current

530mA

1.0 CmA

3.11   Weight

Approx 11.3g

3.12  Operating

Temperature

Charge

0~+45°C

Discharge

-20~+60°C

3.13  Storage

Temperature

less than 1 month

-20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months

-20~+35°C
