Quick Details
-
Output Signal:
-
4-20mA
-
Minimum detection size:
-
0.3mm
-
Sn(rated detecting distance):
-
100mm
-
Installation method:
-
diffuse reflection
-
Certificate:
-
CE,ISO9001
-
Waterproof grade::
-
IP66
-
Working temperature::
-
-15°C~+55° C
-
Supply power:
-
10-30V
-
Waterproof grade:
-
IP67
Quick Details
-
Use:
-
Position Sensor
-
Place of Origin:
-
Hunan, China
-
Name:
-
Photoelectric Laser Break Beam Photoswitch Sensor
-
Output Signal:
-
4-20mA
-
Minimum detection size:
-
0.3mm
-
Sn(rated detecting distance):
-
100mm
-
Installation method:
-
diffuse reflection
-
Certificate:
-
CE,ISO9001
-
Waterproof grade::
-
IP66
-
Working temperature::
-
-15°C~+55° C
-
Supply power:
-
10-30V
-
Waterproof grade:
-
IP67

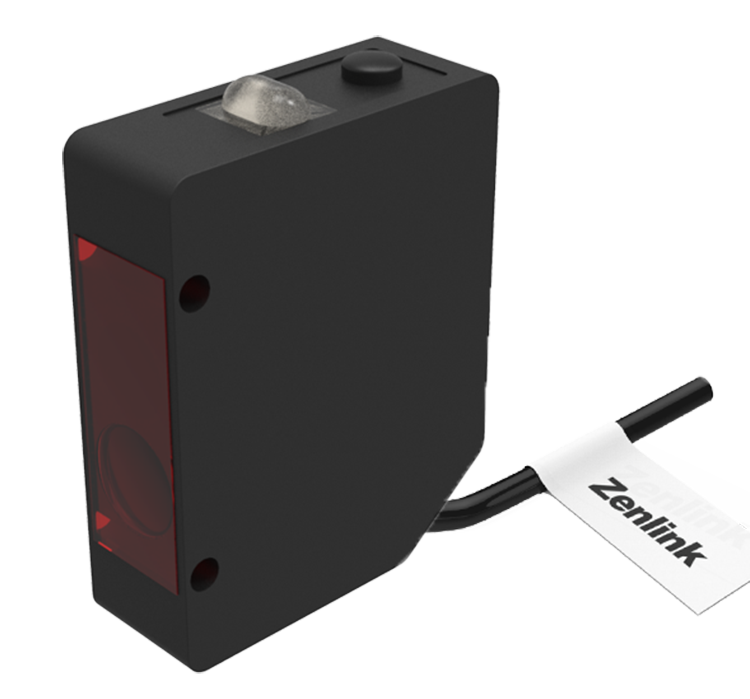

Photoelectric Laser Break Beam Photoswitch Sensor
Feature
(1) Long Sensing Distance,can detect objects more than 10 m away.
(2) Virtually No Sensing Object Restrictions,can be used to detect virtually any object, including glass, plastic, wood, and liquid.
(3) Fast Response Time
The response time is extremely fast because light travels at high speed and the Sensor performs no mechanical operations because all circuits are comprised of electronic components.
(4) High Resolution,enable detecting very small objects, as well as precise position detection.
(5) Non-contact Sensing
There is little chance of damaging sensing objects or Sensors because objects can be detected without physical contact.
(6) Color Identification
The rate at which an object reflects or absorbs light depends on both the wavelength of the emitted light and the color of the object.
(7) Easy Adjustment
Positioning the beam on an object is simple with models that emit visible light because the beam is visible.
Technical data
| Outlook | Square |
| Size | 44*34.5*13mm(Customized) |
| Installation method | diffuse reflection |
| Dark and white color detection difference | 20% |
| ON/OFF switch function | press button for 10 seconds |
| Feature | 2mm light spot |
| Application | Long distance detection,tiny object detection |
| Minimum detection size | 0.3mm |
| Spot size | spot light 3mm |
| Sn(rated detecting distance) | 500mm(5M distance is customizable) |
| Output signal | 4-20mA |
| Supply power | 10-30V |
| Consumption current | <30mA |
| Control output | Max 100mA,40V, Rest 1V |
| Protection | reverse current,over-current,over-voltage |
| Ambient lighting | Max 20000lux |
| Sensitivity setting | button setting |
| Indicator | red LED (power and output);green LED(stable) |
| Working environment temperature | 0℃(no ice -20℃)-55℃ |
| Protection Grade | IP66 |
| Certificate | CE |
| Shell material | Alluminum |
| lens material | PC/glass |
| Connection method | PVC cable |
