Quick Details
-
Power:
-
50kw
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JING GONG
-
Maximum Digging Height:
-
6000mm
-
Maximum Digging Depth:
-
3380mm
-
Max Digging Radius:
-
1775mm
-
Rated Speed:
-
30km/h
-
Wheel base:
-
2600mm
-
(Length*width*height) travel position:
-
5500*2100*2850mm
-
Rated Power:
-
50KW
-
Certification:
-
ISO9001
Quick Details
-
Operating Weight:
-
6000kg
-
Bucket capacity:
-
0.2-0.3m3
-
Engine Brand:
-
YUCHAI
-
Power:
-
50kw
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JING GONG
-
Maximum Digging Height:
-
6000mm
-
Maximum Digging Depth:
-
3380mm
-
Max Digging Radius:
-
1775mm
-
Rated Speed:
-
30km/h
-
Wheel base:
-
2600mm
-
(Length*width*height) travel position:
-
5500*2100*2850mm
-
Rated Power:
-
50KW
-
Certification:
-
ISO9001

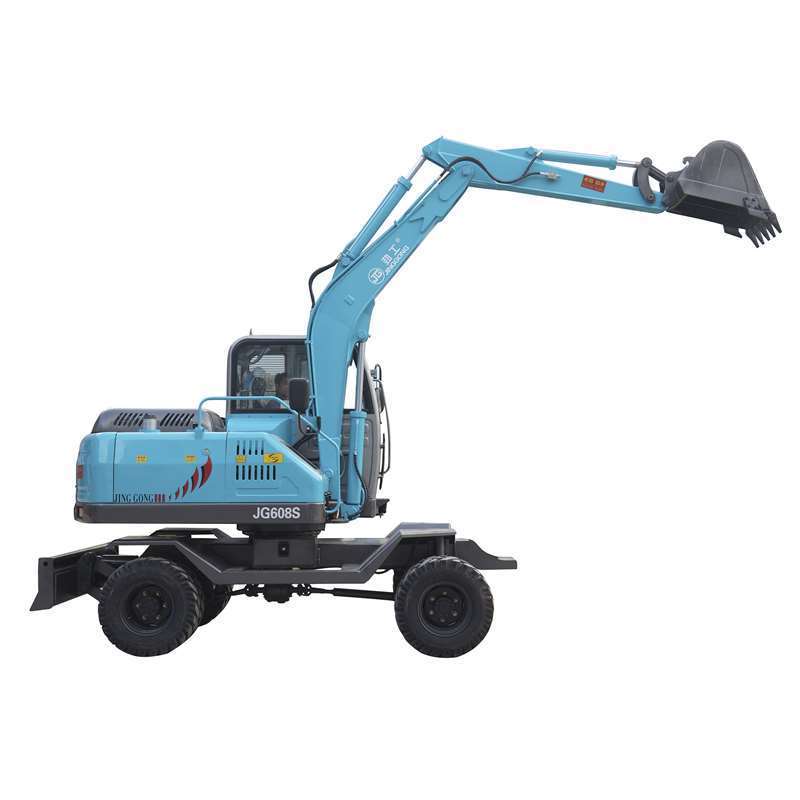

| JG608S Wheel Excavator SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3030mm | ||||||||
| Arm length | 1860mm | |||||||||
| Maximum Digging Reach | 6000mm | |||||||||
| Maximum Digging Depth | 3380mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 5800mm | |||||||||
| Maximum Dumping Height | 4300mm | |||||||||
| Back-end radius of gyration | 1775mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5500*2100*2850mm | ||||||||
| Wheel base | 2600mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 6000kg | |||||||||
| Engine model | YN36GB2/4100 | |||||||||
| Rated Power | 50KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 19.5Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 35km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 750.16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
Please see the advantages of China Jinggong excavators.
1. Use specified high-quality cylinder
2. New Integrated console makes it comfortable when operating
3. Development Patent: Grapple rotates flexibly to improve work efficiency
4. Luxury cab with air conditioner & multi-functional charging interface & comfortable seat with shock resistance, Lift cab, bright and spacious, wide vision, low noise, reduce driver's fatigue and improve work efficiency
5. Full hydraulic pilot operation, advanced and perfect operation system, light and flexible
6. The whole machine use high-quality steel, which is strong, reliable and more durable
7. Strong drive system, high carrying capacity, great tractive force to resist impact
8. Equipped with multi-way valve, hydraulic system, walking motor from South Korea, advanced and reliable
9. New condition engine with turbocharged, adopt domestic famous engine brand, which ensures low fuel consumption, strong power and high reliability
10. Inlet and outlet oil tubes are all used steel braided tubes, oil resistant and high-pressure tubes, safe and reliable
11. Use engineering cross-country tires, strong anti friction
