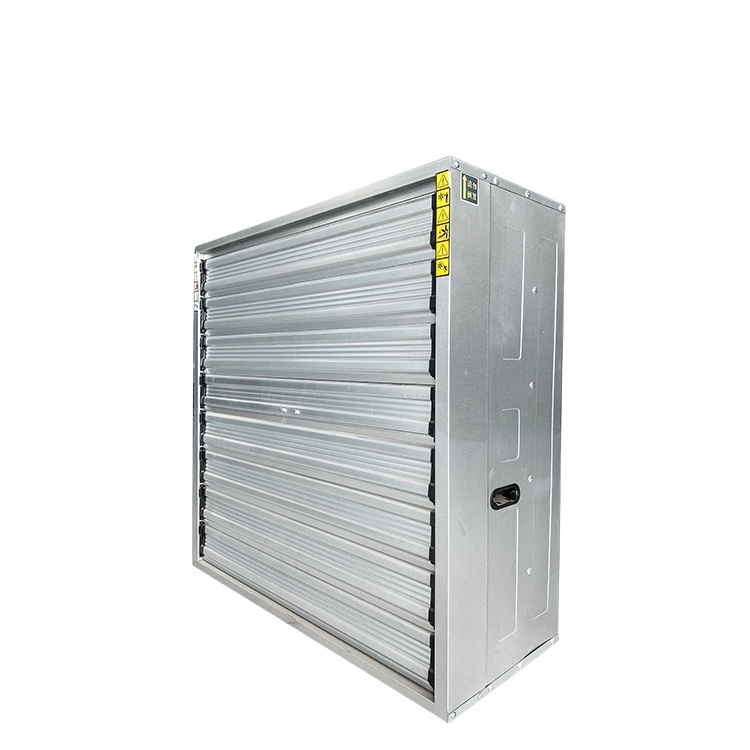

QiluRunte 1100 Wall Mount Agriculture Greenhouse Chicken House Ventilation Cooling System Industrial Exhaust Fan

QiluRunte 1100 Wall Mount Agriculture Greenhouse Chicken House Ventilation Cooling System Industrial Exhaust Fan

FOB Reference Price: Get Latest Price

≥1 Sets

US $107

≥100 Sets

US $104

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Free spare parts

Place of Origin:: Shandong, China

Brand Name:: QiluRunte

Model Number:: 1100

Voltage:: 380, 220, 415, as required

Product name:: Ventilation Cooling System Industrial Exhaust Fan

Keywords:: Chicken House Cone Ventilation Fan

MOQ:: 1 Set

Drive:: Belt drive

Model:: 1100

Motor:: Siemens

Size:: 1100*1100*450mm

Blade speed:: 513 RPM

Quick Details

Applicable Industries:: Hotels, Building Material Shops, Farms, Restaurant, workshop, factory, greenhouse

Electric Current Type:: AC

Mounting:: Wall Fan

After-sales Service Provided:: Free spare parts

Place of Origin:: Shandong, China

Brand Name:: QiluRunte

Model Number:: 1100

Voltage:: 380, 220, 415, as required

Product name:: Ventilation Cooling System Industrial Exhaust Fan

Keywords:: Chicken House Cone Ventilation Fan

MOQ:: 1 Set

Drive:: Belt drive

Model:: 1100

Motor:: Siemens

Size:: 1100*1100*450mm

Blade speed:: 513 RPM

Products Description

Product Application

Centrifugal Push-Pull Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Good Selling Wall Exhaust Ventilation Poultry Farming Shed Ventilating Fan Shutter Cone 50 Inch Greenhouse Fan

Technical Parameter

Model	Blade diameter	Frequency	Motor Speed	Air Flow	Input Power	Rated voltage	Height (mm)	Width (mm)	Thickness (mm)
RT-800	610	50	≥1400	15000	370	380	800	800	450
RT-1000	900	50	≥1400	25000	750	380	1000	1000	450
RT-1100	1000	50	≥1400	29000	750	380	1100	1100	450
RT-1380	1270	50	≥1400	44000	1100	380	1380	1380	450
RT-1530	1400	50	≥1400	55800	1500	380	1530	1530	450

Main Features

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust. 2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally 3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured. 4) Wall-Mounting fan , easy installation and maintenance 5) Belt Drive, Big airflow

Details Images

Frame

1. Frame: Hot Galvanized sheet with zinc thickness of 450g/㎡, anti-corrosion

performance 2. Galvanize Handle, easy to carry , Convenient to operate

Advantage

RUNTE MACHINERY has the advanced Complete CNC machine and Cutting machine. The accuracy of the hole is 95%, easy to assemble.

Belt Pulley

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability

Advantage

Light weight, Low vibration ,attractive appearance.

Bearing

Imported double-row bearing with

special waterproof design.

Advantage

High strength, low noise, free maintenance

and long service life.

Centrifugal System

America Legal brand motor
German Siemens brand motor
Chinese Nosch brand motor

Advantage

It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

Fan Blades

1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm

Adantage

Large air flow, no deformation, no fracture, no dust, attractive and durable.

Belt

Brand: Mitsuboshi belt Type: B type, B88

Advantage

B type belt is 3 times longer service life than A type belt, maintenance free.

Shutters

1. Material: Hot Galvanized sheet with zinc

thickness of 275g/㎡ 2. Shutter Fixed Parts: High quality nylon.

Advantage

High anti-corrosion performance, open flexibly, long service life, no deformation , no rust, running stable.

Motor

1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor 2. Motor Protection Grade: IP55 3. Isulation Class: F grade

Advantage

Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
