SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZHONGBANGREN
-
Voltage:
-
380V/50HZ/CUSTOMIZED
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2400*1500*1000mm
-
Weight:
-
1100 kg, 1100 Kg
-
Features:
-
Easy Operation
-
Raw materials:
-
Quartz Sand
-
Product name:
-
Concrete T beam machine
-
Finished products:
-
T beam
-
Use:
-
for beam
-
Capacity:
-
500 sqm/day
-
Certificate:
-
CE / ISO9001:2015
-
Color:
-
red
-
After the warranty:
-
12months
-
Control system:
-
semi-automatic
Quick Details
-
Application:
-
Building materials machinary
-
Production Capacity:
-
1.3-2.5m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGBANGREN
-
Voltage:
-
380V/50HZ/CUSTOMIZED
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2400*1500*1000mm
-
Weight:
-
1100 kg, 1100 Kg
-
Features:
-
Easy Operation
-
Raw materials:
-
Quartz Sand
-
Product name:
-
Concrete T beam machine
-
Finished products:
-
T beam
-
Use:
-
for beam
-
Capacity:
-
500 sqm/day
-
Certificate:
-
CE / ISO9001:2015
-
Color:
-
red
-
After the warranty:
-
12months
-
Control system:
-
semi-automatic
Product Overview
Floor base Prestressed precast concrete T beam to T beam making machine block machine
T-beam is a load-bearing structure of reinforced concrete, with a t-shaped cross section. The top of thet-shaped cross section serves as a flange or compression member in resisting compressive stresses. The web (vertical section) of the beam below the compression flange serves to resist shear stress and to provide greater separation for the coupled forces of bending.
FEATURES AT A GLANCE
COMPACT DIMENSIONS

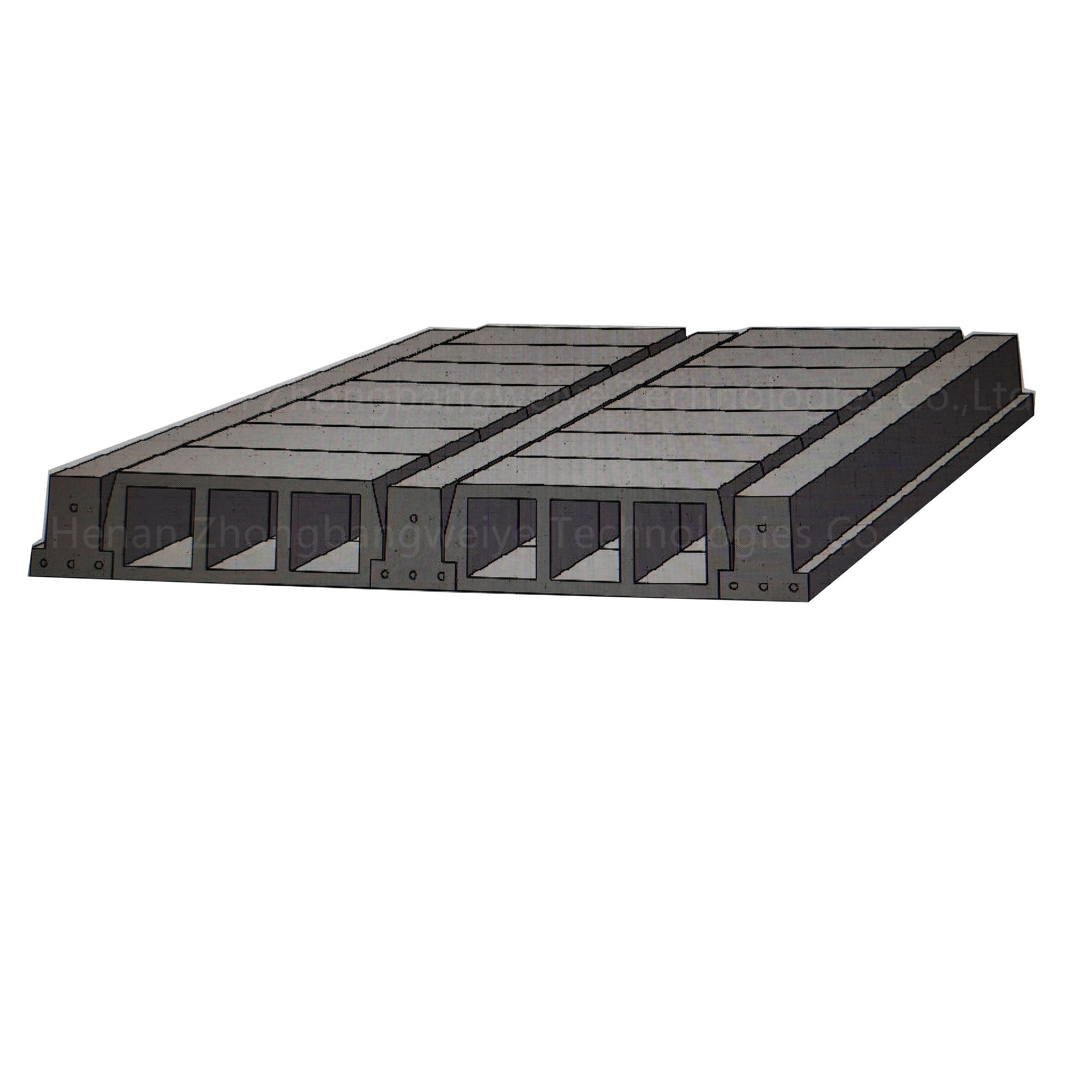

Reinforced concrete T-beams
Concrete alone is brittle and thus overly subject to the shear stresses a T-beam faces where the web and flange meet. This is the reason that steel is combined with concrete in T-beams. A problem of shear stress can lead to failures of flanges detaching from webs when under load. This could prove catastrophic if allowed to occur in real life; hence, the very real need to mitigate that possibility with reinforcement for concrete T-beams. In such composite structures, many questions arise as to the particulars of the design, including what the ideal distribution of concrete and steel might be: “To evaluate an objective function, a ratio of steel to concrete costs is necessary”. This demonstrates that for all aspects of the design of composite T-beams, equations are made only if one has adequate information. Still, there are aspects of design that some may not even have considered, such as the possibility of using external fabric-based reinforcement, as described by Chajes et al., who say of their tested beams, “All the beams failed in shear and those with composite reinforcement displayed excellent bond characteristics. For the beams with external reinforcement, increases in ultimate strength of 60 to 150 percent were achieved”. When it comes to resistance to shear forces,external reinforcement is a valid option to consider. Thus, overall, the multiple important aspects of T-beam design impress themselves upon the student of engineering.
T beam making machine introduction
The machine is making the T beam through mechanical squeezing. It use the vibrator to compaction the beamand make the cement, sand and stone etc. fastening together.
We are having many types of the Beam or Slabs Forming Machine, different model can produce different kinds of beam to make different building.
We are having many types of the Beam or Slabs Forming Machine, different model can produce different kinds of beam to make different building.
PRODUCT SPECIFICATIONS
|
model
|
thickness (mm)
|
width(mm)
|
electric motor (KW)
|
vibrator motor(KW)
|
molding speed(m/min)
|
Wire dia (mm)
|
|
TWT100*130-4
|
100
|
130
|
7.5
|
1.5
|
1.4
|
5
|
|
TWT119*150-4
|
150
|
119
|
7.5
|
2
|
1.4
|
5
|
|
TWT115*150-4
|
150
|
115
|
7.5
|
1.5
|
1.4
|
5
|
