- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Continuous
-
Voltage:
-
Can be customized
-
Power:
-
19.25KW
-
Weight:
-
8300 KG
-
Dimension(L*W*H):
-
800*200*230cm
-
Year:
-
2022
-
Product Name:
-
tobacco leaf drying machine
-
Function:
-
High Efficiency Drying vegetable and fruit
-
Keywords:
-
fruit and vegetable dehydrator
-
Color:
-
Silver/White
-
Product Type:
-
Hot Air Circulating Dryer
-
Advantage:
-
Low Consumption High Efficiency
-
Fuel:
-
Steam Gas,Electric,Wood,Coal.etc.
-
Application Material:
-
Food, Fruit, Vegetable,herb,hemp,flower.etc.
-
Name:
-
cassava dryer
-
Usage:
-
dried cassava chips machine
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guoxin
-
Type:
-
Continuous
-
Voltage:
-
Can be customized
-
Power:
-
19.25KW
-
Weight:
-
8300 KG
-
Dimension(L*W*H):
-
800*200*230cm
-
Year:
-
2022
-
Product Name:
-
tobacco leaf drying machine
-
Function:
-
High Efficiency Drying vegetable and fruit
-
Keywords:
-
fruit and vegetable dehydrator
-
Color:
-
Silver/White
-
Product Type:
-
Hot Air Circulating Dryer
-
Advantage:
-
Low Consumption High Efficiency
-
Fuel:
-
Steam Gas,Electric,Wood,Coal.etc.
-
Application Material:
-
Food, Fruit, Vegetable,herb,hemp,flower.etc.
-
Name:
-
cassava dryer
-
Usage:
-
dried cassava chips machine
Product Description

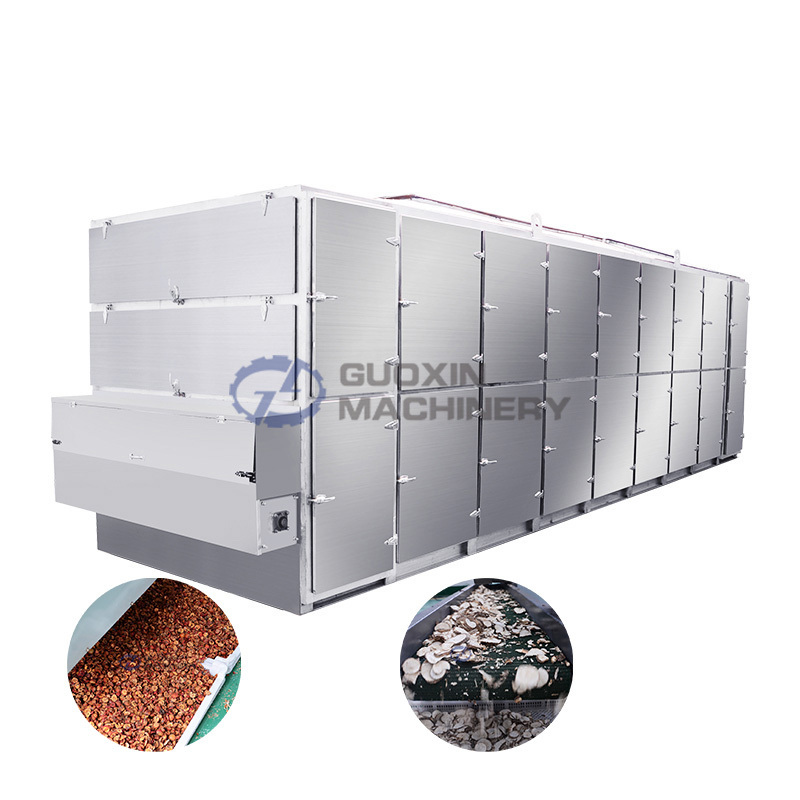

Continuous processing dried cassava chips machine cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator
As a professional
fruit and vegetable dehydrator
manufacturer, Guoxin Machinery has provided comprehensive drying solution and complete set of food drying equipment to global clients over the last 20 years.
* Our
dried cassava chips machine cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator
are customizable
Structure of
dried cassava chips machine cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator
1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7.Electricicy Control Panel
1.Heat Exchange Furnace
2.Induced Draft Fan
3.Feeding Conveyor
4.Distribute Device
5.Dryer Body
6.Discharge Device
7.Electricicy Control Panel
Working Principle of
dried cassava chips machine cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator
The fruit and vegetable dehydrator utilize the hot air produced by the heat furnace as the drying medium.
Through the hot air distribution unit, the hot air is transported to the mesh belt.
The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.
The cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.
The fruit and vegetable dehydrator utilize the hot air produced by the heat furnace as the drying medium.
Through the hot air distribution unit, the hot air is transported to the mesh belt.
The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.
The cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator not only according to heat to dry, but also according to strong air, the air volume can reach 40000 cube meters per hour.
|
Model
|
GX-8
|
GX-9
|
GX-10
|
GX-12
|
||||
|
Layer
|
4 layers,5 layers, 6layers
|
|
|
|
||||
|
Material thickness
|
10-70mm
|
|
|
|
||||
|
Drying temperature
|
40-120°C
|
|
|
|
||||
|
Moisture reduce
|
75% to 8%(Customized)
|
|
|
|
||||
|
Drying time
|
0.5-5hours
|
|
|
|
||||
|
Moisture reduce
|
75% to 8%(Customized)
|
|
|
|
||||
|
Main machine motor
|
1.5kw
|
1.5kw
|
2.2kw
|
3kw
|
||||
|
Hot air draft fan
|
15kw
|
15kw
|
22kw
|
22kw
|
||||
|
Discharing conveyor
|
B500(0.12kw)
|
B500(0.12kw)
|
B500(0.12kw)
|
B500(0.12kw)
|
||||
|
The above parameters are for reference, we can according to customer required provide best solution.
|
|
|
|
|
||||
Advantages of
dried cassava chips machine cassava dryer tobacco leaf drying machine fruit and vegetable dehydrator
1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.
4.Bidiretional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.
1.Adopt multilayered structure, large area of drying, it can continuously produce in large quantities.
2.Heat exchange furnace adopt new fireproofing and highly quality steel, although the strict calculation of construction completion, easy construction and operation, easy maintenance.
3.The air blow to the material is pure, will not pollute the materials.
4.Bidiretional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.
Customer Case
Related Product
Our Services
Why Choose Us
Packing&Shipping
FAQ
1. Ask: What is the voltage of your machine?
Answer: The voltage can be customized.
2. Ask: Can I get a best price?
Answer: Quality is the heat of one company.We can not promise the lowest price,but we promise the best quality and most reasonable price.On the other hand, bigger order you placed, cheaper price you will get.
3. Ask: How can we arrange the shipping?
Answer: We cooperated with some reliable shipping companies for several years,we can be responsible for the shipping to your country. If you have shipping forwarders in china,we can also cooperate with them.
4. Ask: Can we visit your company?
Answer: We are in Gongyi City, Henan Province, and near from Xinzheng International Airport. Warmly welcome you visit us.
