Quick Details
-
Brand Name:
-
Supereal
-
Product name:
-
silicon carbide cyclone
-
Shape:
-
tube
-
Color:
-
Black
-
Density:
-
≥3.02g/cm3
-
working temperature:
-
1380℃
-
Open Porosity:
-
<0.1%
-
Bending Strength 20℃:
-
250MPa
-
Bending Strength 1200℃:
-
280 MPa
Quick Details
-
Material:
-
Silicon Carbide
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Customer's Requirements
-
Brand Name:
-
Supereal
-
Product name:
-
silicon carbide cyclone
-
Shape:
-
tube
-
Color:
-
Black
-
Density:
-
≥3.02g/cm3
-
working temperature:
-
1380℃
-
Open Porosity:
-
<0.1%
-
Bending Strength 20℃:
-
250MPa
-
Bending Strength 1200℃:
-
280 MPa

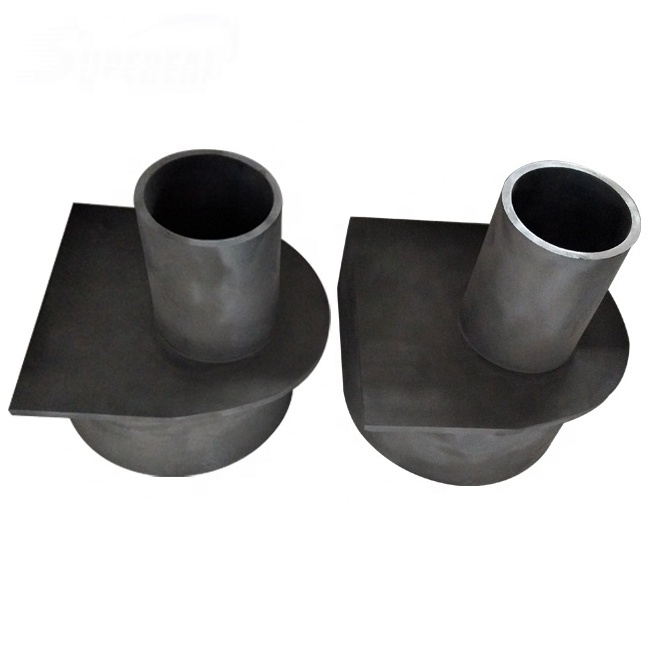

High Abrasion Resistant SISIC SIC Silicon Carbide Cyclone Cone Liner /Lining Cyclone /Cyclone Sleeve
Product Description
High Abrasion Resistant SISIC SIC Silicon Carbide Cyclone Cone Liner /Lining Cyclone /Cyclone Sleeve
with high strength,high wear resistance are widely used in paper making, chemical, electronics, pharmaceutical and other ink jet, lithium battery materials, electronic pulp nano-ceramic sanding machines.
Property:
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
Specification
|
ITEM
|
UNIT
|
DATA
|
|
|
Name
|
High Abrasion Resistant SISIC SIC Silicon Carbide Cyclone Cone Liner /Lining Cyclone /Cyclone Sleeve
|
|
|
|
Temperature
|
℃
|
1380
|
|
|
Density
|
g/cm³
|
≥3.02
|
|
|
Open Porosity
|
%
|
<0.1
|
|
|
Moh's Scale of Hardness
|
|
13
|
|
|
Bending Strength
|
MPa
|
250 (20℃)
|
|
|
|
MPa
|
280 (1200℃)
|
|
|
Modulus of Elasticity
|
GPa
|
330 (20℃)
|
|
|
|
GPa
|
300 (1200℃)
|
|
|
Thermal
Conductivity
|
W/m.k
|
45 (1200℃)
|
|
|
Coefficient of thermal expansion
|
k-1×10-6
|
4.5
|
|
|
Acid Alkaline -proof
|
|
Excellent
|
|
Silicon carbide oil sands separator
The body of the separator is provided with a through oil pipe, the upper joint is connected to the upper end of the body, the lower end is the lower joint, the sandwich between the body and the through oil pipe is the sand storage chamber, the outlet of the through oil pipe is the inner closing structural nozzle, the front end is covered with a diversion cover, a ring-shaped oil injection channel is formed between the diversion cover and the through oil pipe. After the oil is turned by the diversion cover, it is sprayed into the sand storage chamber through the oil injection channel. Due to the different specific gravity of the oil sands, the sand particles settle into the sand storage chamber, and the crude oil is then turned back to the upper joint to complete the separation of crude oil and sand particles.The separator adopts a diversion hood, a nozzle through the oil pipe and a sand storage chamber structure to greatly increase the flow rate of crude oil. After two reverse conversions, the oil sands can be separated more thoroughly. The detachable upper and lower joint structure makes the sand cleaning work more convenient and easy. The device has a simple structure and easy operation, which greatly improves the service life of the oil pump.
APPLICATION
The reaction bonded silicion carbide ceramic ( RBSIC) is an ideal wear resistant material, which is especially suitable for the strong abrasive, coarse particles, classification, concentration, dehydration and other operations. Due to the above properties, the
High Abrasion Resistant SISIC SIC Silicon Carbide Cyclone Cone Liner /Lining Cyclone /Cyclone Sleeve
can effectively protect the part from high wear so as to prolong the service life of the equipment.
Packing & Delivery
To better ensure the safety of
High Abrasion Resistant SISIC SIC Silicon Carbide Cyclone Cone Liner /Lining Cyclone /Cyclone Sleeve
, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Besides the silicon carbide material, we can also customize high alumina ceramic wear liners for desander and cyclones as customers' requirements.
