Quick Details
-
Brand Name:
-
Guangchun
-
Model Number:
-
YYW-160
-
Product name:
-
Motorcycle Crankshaft Dynamic Balancing Machine
-
Usage:
-
Balancing Machine
-
Output power:
-
3 KW Frequency conversion
-
Packing Length:
-
1700mm
-
Packing Width:
-
750mm
-
Packing Height:
-
1950mm
-
Packing Gross Weight:
-
660kg
-
Power Supply:
-
380V or Custom
-
Delivery time:
-
within 20 days
-
Site:
-
www.gcphj.com
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Guangchun
-
Model Number:
-
YYW-160
-
Product name:
-
Motorcycle Crankshaft Dynamic Balancing Machine
-
Usage:
-
Balancing Machine
-
Output power:
-
3 KW Frequency conversion
-
Packing Length:
-
1700mm
-
Packing Width:
-
750mm
-
Packing Height:
-
1950mm
-
Packing Gross Weight:
-
660kg
-
Power Supply:
-
380V or Custom
-
Delivery time:
-
within 20 days
-
Site:
-
www.gcphj.com
Product Description

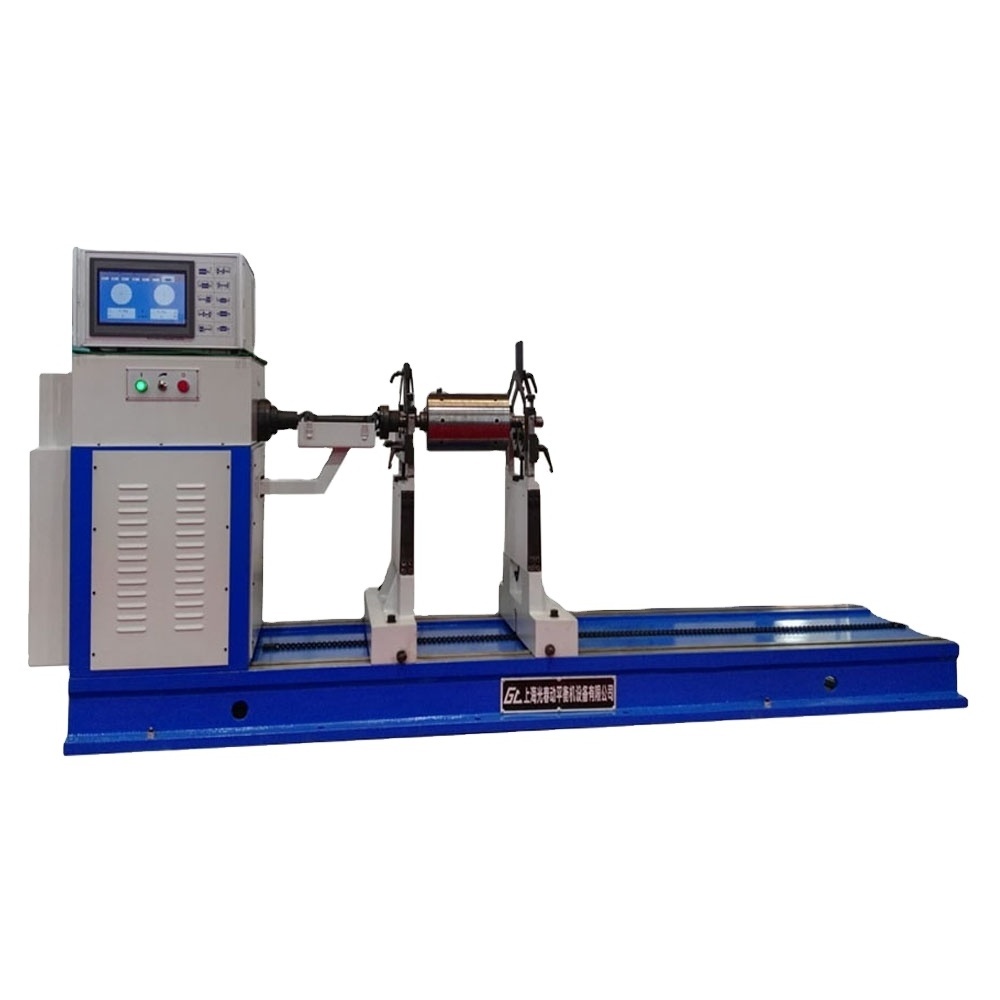

Motorcycle Crankshaft Dynamic Balancing Machine
1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface
7.YYW series are applicable for blower, large-sized motor, pump, centrifuge, rubber roller, drying cylinder, internal-combustion engine etc
|
Technical Parameters
|
YYW-160
|
YYW-300
|
YYW-500
|
||
|
Maximum weight of workpiece(kg)
|
160
|
300
|
500
|
||
|
Maximum diameter of workpiece(mm)
|
1000
|
1200
|
1500
|
||
|
The distance between two bearing pedestals(mm)
|
Min60
|
|
|
||
|
Distance from coupling flange of drive shaft to center of farthest bearing(mm)
|
1500
|
|
|
||
|
Journal diameter on roller arriages(mm)
|
10~75 or 75~140
|
15~75 or 75~180
|
|
||
|
Spindle speed(r/min)
|
Variable frequency stepless speed regulation
|
|
|
||
|
Motor power(kw)
|
3
|
|
4
|
||
|
Universal coupling torque(N.m)
|
60
|
|
|
||
|
Minimum achievable Rsidual(emar)
|
≤1g.mm/kg
|
|
|
||
|
Unbalance reduction ratio(%)
|
≥90%
|
|
|
||
Detailed Images
Measuring System
