Quick Details
-
Size:
-
4.5*5.3*5m
-
Material:
-
stainless
-
Warranty:
-
1 year
-
power supply:
-
AC380V/50Hz
-
Water consumption:
-
230-300L
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
mattias
-
Model Number:
-
M-GC800Z
-
Size:
-
4.5*5.3*5m
-
Material:
-
stainless
-
Warranty:
-
1 year
-
power supply:
-
AC380V/50Hz
-
Water consumption:
-
230-300L
Mattias

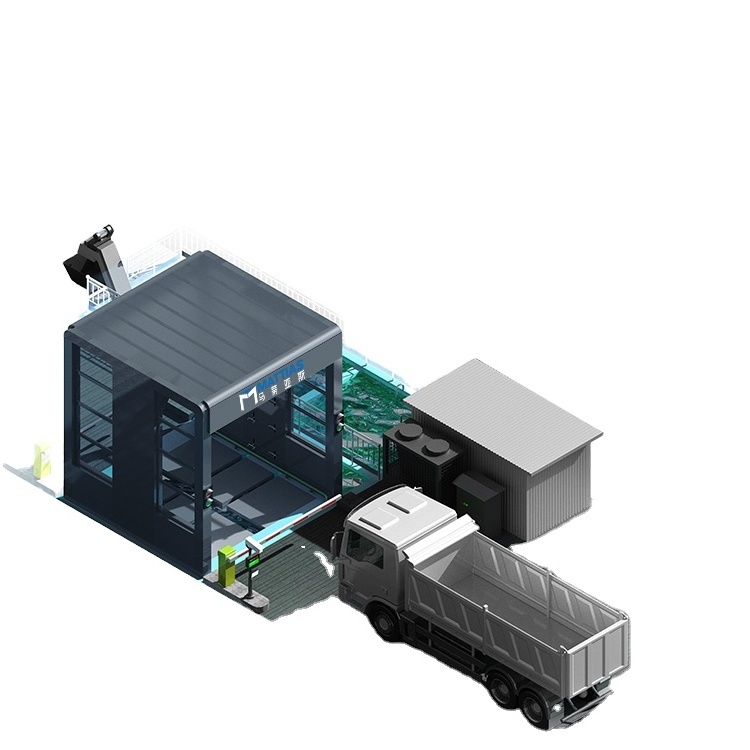

M-GC800Z Gantry Engineering Car Wash
Product Features:
1.Smart sensing system 24-hour auto car washing
2.360 degrees swing-type high pressure flushing
3.Auto car recognition with ground sensing technology 4.Anti splash with closed gantry structure
5.Fault self-checking system
2.360 degrees swing-type high pressure flushing
3.Auto car recognition with ground sensing technology 4.Anti splash with closed gantry structure
5.Fault self-checking system
|
Dimension
|
Machine dimensions
|
W:3.7m H:3.25m L:2.5m
|
|
|
Guide rail dimensions
|
W:3.29m L:9.5m
|
|
|
Swingarmsize(H)
|
3.2m
|
|
Installation
|
Installation dimensions
|
W:4m H:>4m L:10m
|
|
|
working air pressure
|
0.6-0.8Mpa
|
|
Power
|
Total power
|
29.41kW
|
|
|
Maximum operating power
|
22.36kW
|
|
|
Top brush
|
0.75kW*1
|
|
|
Side brush
|
0.75kW*2
|
|
|
Rocker panel brush
|
0.37kW*2
|
|
|
Mobile motor
|
0.18kW*2
|
|
|
Water pump
|
2.2kW*1
|
|
|
Blower
|
5.5kW*4
|
|
|
Lifting motor
|
0.75kW*2
|
|
|
Opening and closing of measuring brush
|
0.18kW*2
|
|
|
Water consum ption
|
150~200L
|
|
Car Wash
|
Washable vehicle
|
Ordinarycar, taxi,leisurecar,freight
|
|
|
Washable vehicle
|
W:2.1m H:2.1m L:5.3m
|
|
|
Washing mode
|
Four
|
|
|
Car wash fluid consumption
|
l5ml
|
|
|
Water wax consumption
|
l5ml
|
|
|
Estimated washing time
|
2.5-5min
|
Product packaging
We Build Our Projects With Your
Dreams And Ideas.
IoT Enabled - All Set For Future!
Automatic Car Wash Machines
Mattias's
lineup of car wash machines makes the most of the techniques and quality that the company has accumulated over the years as a manufacturer of material handling systems. From tunnel-type car washes for passenger vehicles to drive-throughs, gate-type car washes, and large-scale car washes for trucks, buses, and semi-trailers, Mattias offers a wide variety of car wash machines and products to service stations, car dealerships, maintenance shops, transportation companies, and coin-operated car washes.
As one of the world's leading manufacturers of fully automated car wash equipment, we help car wash operators grow their business every day at more than 13,000 locations in more than 40 countries, and we've been doing it for more than 20 years.
Mattias
is a market leader in the design, manufacture and marketing of vehicle wash and care solutions. With over 25 years' experience, Mattias harnesses innovation and the latest technology to provide products and services that generate high returns for the car wash business in various sectors, while also offering a positive, convenient and fast experience for users of car wash installations. Inspired by technological progress and in a constant state of evolution, we created Mattias Smartwash universe. We invite you to find out all about it.
We provide you with the latest automatic and jet wash technology, and all care accessories, plus all devices for water treatment and recycling. You can also rely on our full range of services for maintenance and spare parts, chemical products, connectivity and marketing to make your wash area management easier and more cost-effective.
