Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
STC
-
Model Number:
-
Y10
-
Working Length (mm):
-
60-120mm
-
surface:
-
bright finish
-
Application:
-
Drilling Holes
-
Product name:
-
center drill
-
Color:
-
rn Request
-
Size:
-
1-20mm
-
Packing:
-
Plastic Box
-
Shank:
-
Straight
-
Process:
-
Fully Ground
-
Feature:
-
with flat surface
Quick Details
-
Type:
-
Center Drill Bit, Countersink Drill Bit
-
Use:
-
Metal Drilling
-
Finish:
-
Plain
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
STC
-
Model Number:
-
Y10
-
Working Length (mm):
-
60-120mm
-
surface:
-
bright finish
-
Application:
-
Drilling Holes
-
Product name:
-
center drill
-
Color:
-
rn Request
-
Size:
-
1-20mm
-
Packing:
-
Plastic Box
-
Shank:
-
Straight
-
Process:
-
Fully Ground
-
Feature:
-
with flat surface

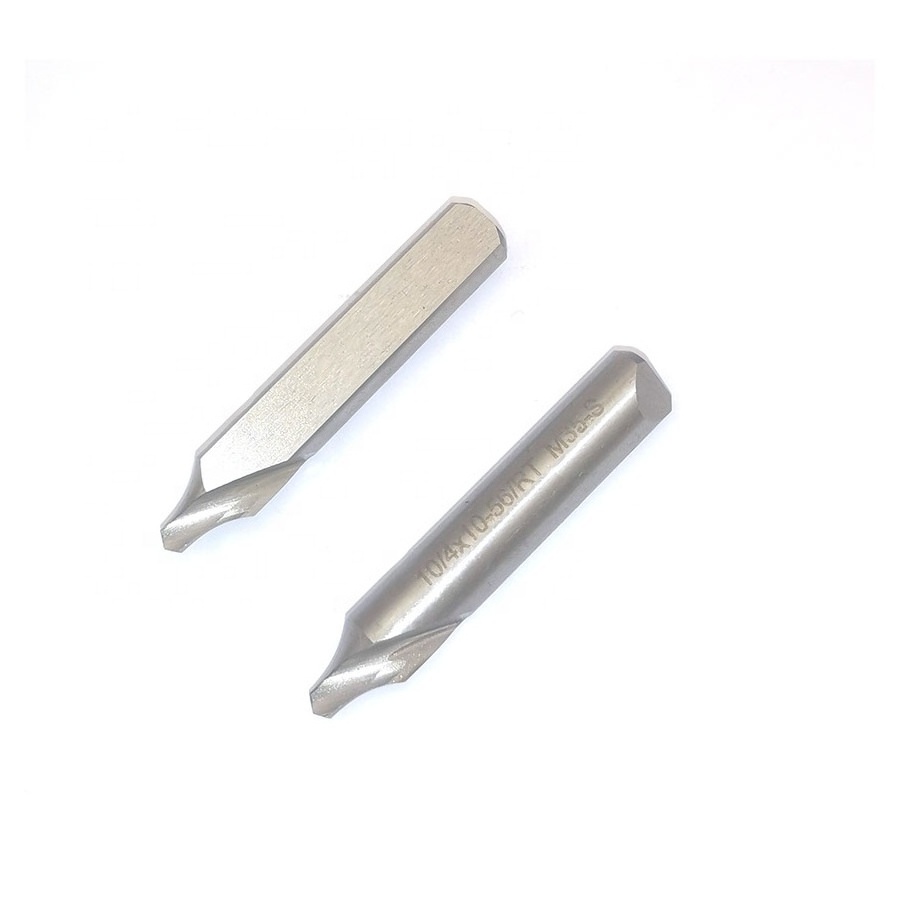

CUSTOM TOOLS HSS CENTER DRILL BIT WITH FLAT
- Material: HSS, HSSCO.
- Din 333 Form A, B, R, Plain type, bell type and radius type.
- Ground,bright finish.
- Size: 1-6.3mm; 3/64"-25/64"
- Countersink angle: 60 °12 0 °
- Center Drill with Flat for using with automatic center drilling machine.
Metric size
| Drill Dia. | Body Dia. | Overall Length |
| 1.0mm | 4 | 60 |
| 1.0mm | 4 | 120 |
| 1.5mm | 5 | 60 |
| 1.5mm | 5 | 120 |
| 2.0mm | 6 | 80 |
| 2.0mm | 6 | 120 |
| 2.5mm | 8 | 80 |
| 2.5mm | 8 | 120 |
| 3.0mm | 8 | 80 |
| 3.0mm | 8 | 120 |
| 3.0mm | 10 | 100 |
| 3.0mm | 10 | 120 |
| 4.0mm | 10 | 100 |
| 4.0mm | 10 | 100 |
| 4.0mm | 12 | 120 |
| 4.0mm | 12 | 120 |
