Quick Details
-
Dimensions(L*W*H):
-
17550*3300*3200mm
-
Weight:
-
27200 KG
-
Product name:
-

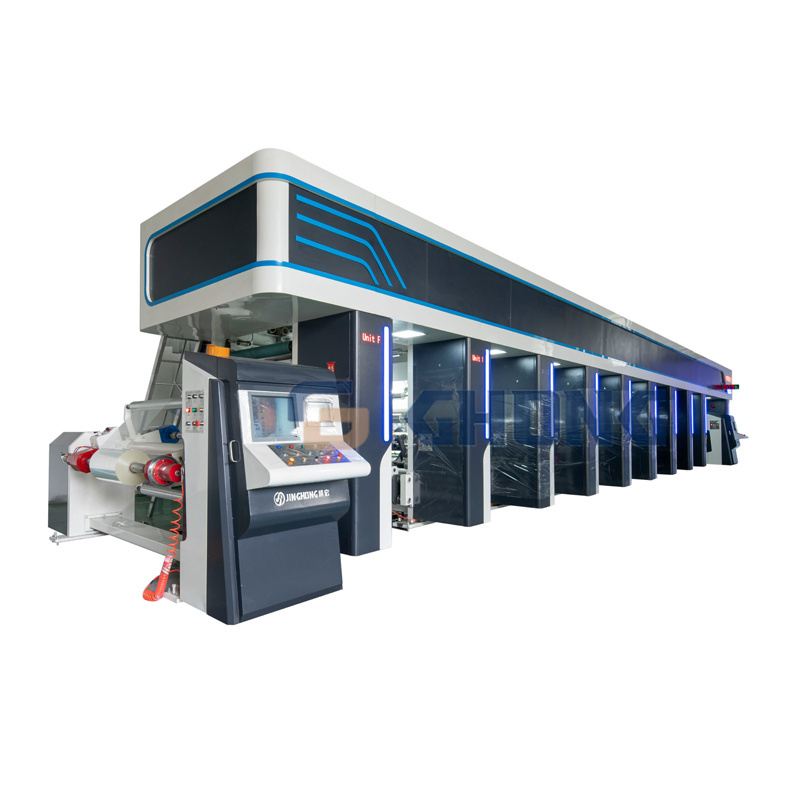

Rotogravure Printing Press
-
Print Material:
-
BOPP. PET. PVC. PE. Aluminum Foil
-
Printing colors:
-
1-10 Colors
-
Service:
-
Engineers
-
Drying method:
-
Electric Heating
-
Printing speed:
-
70-350m/min
-
Register Precision:
-
0.05mm
-
Diameter Of Unwind / Rewind:
-
600mm, 800mm, 1000mm
-
Keyword:
-
rotogravure printing machines satin ribbon printer gravure
-
Printing width:
-
650-2050mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHONG
-
Voltage:
-
380V
-
Dimensions(L*W*H):
-
17550*3300*3200mm
-
Weight:
-
27200 KG
-
Product name:
-
Rotogravure Printing Press
-
Print Material:
-
BOPP. PET. PVC. PE. Aluminum Foil
-
Printing colors:
-
1-10 Colors
-
Service:
-
Engineers
-
Drying method:
-
Electric Heating
-
Printing speed:
-
70-350m/min
-
Register Precision:
-
0.05mm
-
Diameter Of Unwind / Rewind:
-
600mm, 800mm, 1000mm
-
Keyword:
-
rotogravure printing machines satin ribbon printer gravure
-
Printing width:
-
650-2050mm
wide format fabric rotogravure printing machines satin ribbon printer gravure printing machine
Application
This machine is suitable for
continuous ,multi-color printing or rolling material in good printing performance such as tobacco packing,paper,non woven,PP woven,aluminum foil,BOPP,PET,NYLON,PVC,PE and so on.
Features
1. The whole set is in permutation and combination style, possible to add and reduce color class and add on reverse printing mechanism as required by customers.
2.Seven motors tension system automatic control for complete machine, steady tension control.
3. Pneumatic back-pressure moving erasing knife, non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate changing.
4. Adopting control method of auto permanent tension and magnetic powder brake for unreeling.
5. Adopting pneumatic elements for control of all printing pressure roll drawing pressure roller and open & close of oven.
6. Sealed type lengthened oven, fast drying with less energy consuming, and auto constant temperature control system.
7. Printing ink circulating system, inflatable type shaft draw in and draw out.
8. High-accuracy gear transmission box, adopting patented technique.
9. Reeling and unreeling reel by tumbling dual-station mechanism, realizing material change without machine halt.
10.Adopting aluminum alloy guide roll after anode oxidation processing and in balance.
11. Full automatic computer registering devices and computer still examining graphics.
12. Diesel oil air-stove system is available for stove heating.
2.Seven motors tension system automatic control for complete machine, steady tension control.
3. Pneumatic back-pressure moving erasing knife, non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate changing.
4. Adopting control method of auto permanent tension and magnetic powder brake for unreeling.
5. Adopting pneumatic elements for control of all printing pressure roll drawing pressure roller and open & close of oven.
6. Sealed type lengthened oven, fast drying with less energy consuming, and auto constant temperature control system.
7. Printing ink circulating system, inflatable type shaft draw in and draw out.
8. High-accuracy gear transmission box, adopting patented technique.
9. Reeling and unreeling reel by tumbling dual-station mechanism, realizing material change without machine halt.
10.Adopting aluminum alloy guide roll after anode oxidation processing and in balance.
11. Full automatic computer registering devices and computer still examining graphics.
12. Diesel oil air-stove system is available for stove heating.
Specifications
|
Model
|
JHAY-EAH-650
|
JHAY-EAH-850
|
JHAY-EAH-1050
|
|
No.of colors
|
1-12
|
1-12
|
1-12
|
|
Printing cylinder diameter
|
100-320mm
|
100-320mm
|
100-320mm
|
|
Printing width
|
600mm
|
800mm
|
1000mm
|
|
Rewind &Unwind diameter
|
600mm
|
600mm
|
600mm
|
|
Printing speed
|
100-320m/min
|
100-320m/min
|
100-320m/min
|
|
Dry form
|
electric heating
|
electric heating
|
electric heating
|
|
Total power
|
288kw
|
292kw
|
298kw
|
|
Dimension
|
18500*3150*2880mm
|
18500*3350*2880mm
|
18500*3550*2880mm
|
|
Weight
|
40000kg
|
42000kg
|
44000kg
|
