Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
11.0KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3700*2200*1650mm
-
Power (kW):
-
11
-
Weight (KG):
-
1500
-
Product name:
-
2030 5 axis bridge saw cutting machine
-
Working size:
-
2000*3000mm
-
Controller:
-
Mach 3 controller system
-
Spindle:
-
11kw host motor
-
Transmission:
-
Helical Rack and opinion
-
Motor and Driver:
-
1.5kw Servo motor and driver
-
Work Table:
-
Wooden working table
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Color:
-
White and Gray(Customized)
Quick Details
-
Working Table Size(mm):
-
2000×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
11.0KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3700*2200*1650mm
-
Power (kW):
-
11
-
Weight (KG):
-
1500
-
Product name:
-
2030 5 axis bridge saw cutting machine
-
Working size:
-
2000*3000mm
-
Controller:
-
Mach 3 controller system
-
Spindle:
-
11kw host motor
-
Transmission:
-
Helical Rack and opinion
-
Motor and Driver:
-
1.5kw Servo motor and driver
-
Work Table:
-
Wooden working table
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Color:
-
White and Gray(Customized)

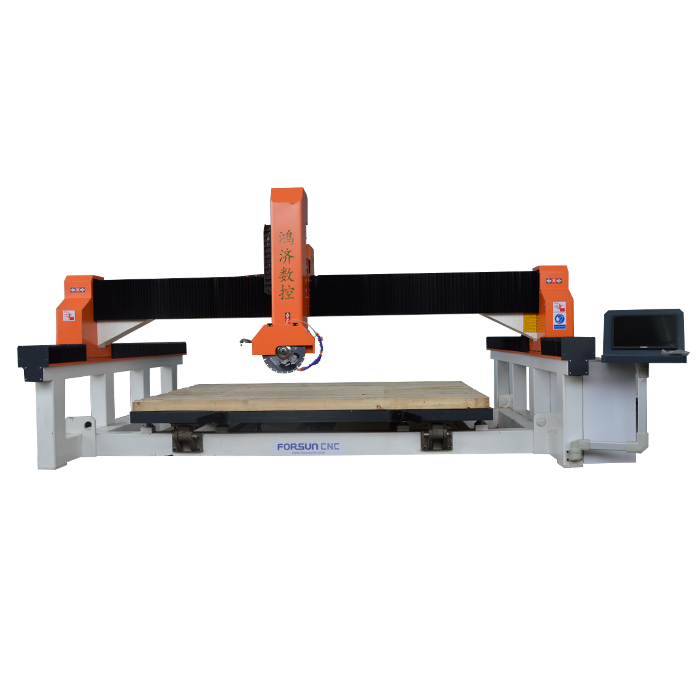

27% Discount 2023 Newset Sale 5 axis bridge saw type cnc stone cutting machine for marble granite quartz kitchen table
What is the feature of our 5 axis Bridge Saw Cutting Machine?
Ø Effective working area: 2000*3000mm*200mm
Ø 11kw host motor
Ø 11kw Taiwan Delta inverter
Ø Mach 3 controller system
Ø 1.5kw Servo motor
Ø Double Sets Vacuum & T-slot working table
Ø Taiwan TBI Ball Screw,Helical Rack and Pinion
What is the advantage of our 5 axis Bridge Saw cutting Machine?
|
Spindle |
11kw host motor
|
|
Inverter |
Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
|
Motor |
1.5kwServo motor. high working efficiency and stable running promised |
|
Control system |
Mach3 controller system
|
|
Working table |
T-slot and Vacuum Table
|
|
Tool magazine |
Linear 10 PCS Tool Magazine The use of an 10 Tool linear tool changes assuring faster cycle times increasing production throughput. |
| T echnical Data of CNC Wood Router Carpentry Machine | ||
|
NO |
Description |
Parameter |
|
1 |
Positioning Accuracy |
±0.03/300mm |
|
2 |
Max. Rapid Travel Rate |
80000mm/min |
|
3 |
Max. Working Speed |
45000mm/min |
|
4 |
Spindle Speed |
0-24000RPM |
|
5 |
Command Language |
G Code |
|
6 |
Flash Memory |
512M |
|
7 |
Collet |
ER32 |
|
8 |
X,Y Resolution |
<0.03mm |
|
9 |
Running Environment Temperature |
0 - 45 Centigrade |
|
10 |
Relative Humidity |
30% - 75% |
|
11 |
Packing Size |
3520*2280*2100mm |
|
12 |
N.W. |
1800KG |
|
13 |
G.W. |
2000KG |
What is the benefit of our ATC CNC Wood Router Carpentry Machine ?
1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,
artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
How do we package our CNC Wood Router Carpentry Machine?
What services are provided for our CNC Wood Router Carpentry Machine?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Customer visiting our factory
FAQ
What do customer usually ask about CNC Wood Router Carpentry Machine ?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
