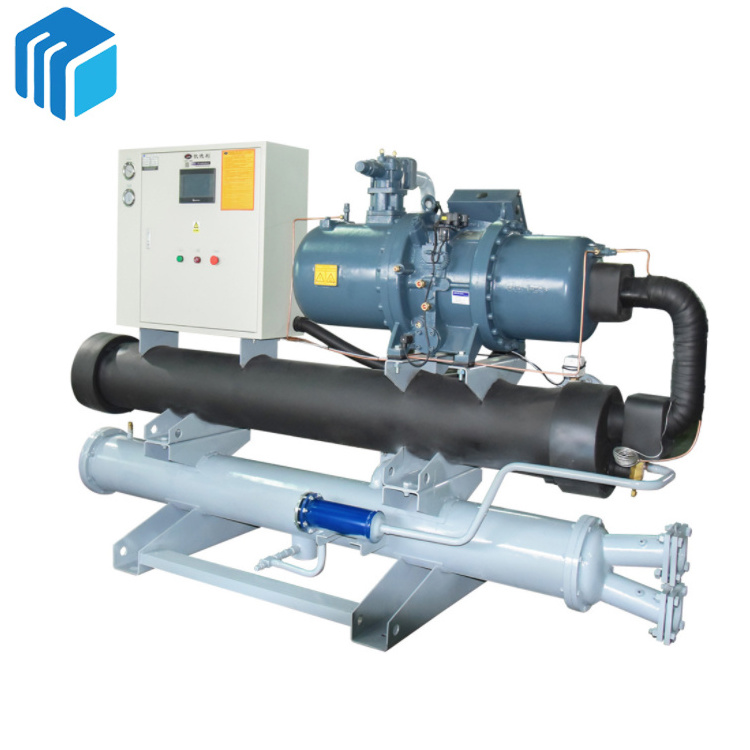

Customized Industrial Large Screw Water Chiller water cooled Chiller for Electronics/Food/Architecture Industry

Customized Industrial Large Screw Water Chiller water cooled Chiller for Electronics/Food/Architecture Industry

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥2 Sets

US $7800

≥3 Sets

US $7500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V 3P 50Hz/60Hz(200V/415V/400V)

Dimension(L*W*H):: 2770x1100x1950mm

Weight:: 2430 KG

Power:: 469.2kw

Way to control:: Expansion valve

Compressor Type:: Hermetic scroll type or piston

Refrigerant:: R220/R404A/R507(or other)

Condenser Form:: Efficient brass setscorrugated aluminm fin

Evaporator:: Shell and Tube

Pump brand:: FCNP/Muchuan

Key words:: chiller,cold water,small water chiller

After Sales Service:: 18 months warranty, free spare parts, remote technical guidance

Compressor:: Screw Smei-hermetic

Maximum Running Current:: 182.5A

Marketing Type:: Hot Product 2022

Quick Details

Condition:: New

Place of Origin:: Jiangsu, China

Brand Name:: Eternity

Voltage:: 380V 3P 50Hz/60Hz(200V/415V/400V)

Dimension(L*W*H):: 2770x1100x1950mm

Weight:: 2430 KG

Power:: 469.2kw

Way to control:: Expansion valve

Compressor Type:: Hermetic scroll type or piston

Refrigerant:: R220/R404A/R507(or other)

Condenser Form:: Efficient brass setscorrugated aluminm fin

Evaporator:: Shell and Tube

Pump brand:: FCNP/Muchuan

Key words:: chiller,cold water,small water chiller

After Sales Service:: 18 months warranty, free spare parts, remote technical guidance

Compressor:: Screw Smei-hermetic

Maximum Running Current:: 182.5A

Marketing Type:: Hot Product 2022

Machine support Customization , 18-month Warranty and Permanent Technical Support

Products Description

Model:ETD-W510

Refrigerant Capacity:

403512 kcal ,469.2kw

Compressor :

Bitzer/Refcomp/Frascold/Hanbell

Refrigerant: R404a/R507a/R22

Power Supply :

220V/380V/415V/460V 3P/50hz/60hz

Warranty :18months

Features

1.The parameters testing according to the GB18430.1-2007 rule(cooling water in/out:30℃/35℃, cooled water in/out 12/7℃)

2.Evaporator water side scaling factor:0.018m2℃/kw,Condenser water side scaling factor:0.044m2℃/kw.

3.More models pls contact freely. dels pls contact freely.

Product acessories

Bitzer/Hanbell /Refcomp

Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories; 2. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Danfoss Expansion valve

1.High-quality in refrigeration industry, higher refrigeration efficiency and lower failure rate

2. Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer

Aviation hose

1.Instead of capillary copper tube, it is resistant to high temperature and high pressure,

2.it will not cause refrigerant due to excessive pressure.

Shell and Tube Evaporators and Condensers

1.Shell-and-tube condenser adopts high-precision external thread copper tube design

2. Large heat exchange area, higher efficiency

3. Maximize machine performance

Fully equipped with Schneider Switches

1. The panel of the socket is exquisite, flat and beautiful, simple and elegant

2. Material thickness is more intimate Schneider switch has achieved a great improvement in thickness

3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Cooling Tower

Cooling Pump

Unit maintenance

Product Technical Map

Application

Each chiller is fully assembled in the factory. After being pressed, vacuumed, injected with refrigerant, injected with oil, and tested, it can only be shipped after passing the inspection. The chiller adopts the company's latest technological achievements: microcomputer control system, fully enclosed compressor, noise control device, unique frost melting technology, polyester powder paint technology and other technologies.
