Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIDA
-
Model Number:
-
HD-3023
-
Product Name:
-
door closer
-
Door Weight:
-
25-85kg
-
Material:
-
aluminum alloy
-
Speed adjustment:
-
two stage speed adjustable
-
Backcheck:
-
without
-
Delay:
-
without
-
Service life:
-
over 500,000cycles
-
Temperature:
-
-40℃~50℃
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIDA
-
Model Number:
-
HD-3023
-
Product Name:
-
door closer
-
Door Weight:
-
25-85kg
-
Material:
-
aluminum alloy
-
Speed adjustment:
-
two stage speed adjustable
-
Backcheck:
-
without
-
Delay:
-
without
-
Service life:
-
over 500,000cycles
-
Temperature:
-
-40℃~50℃

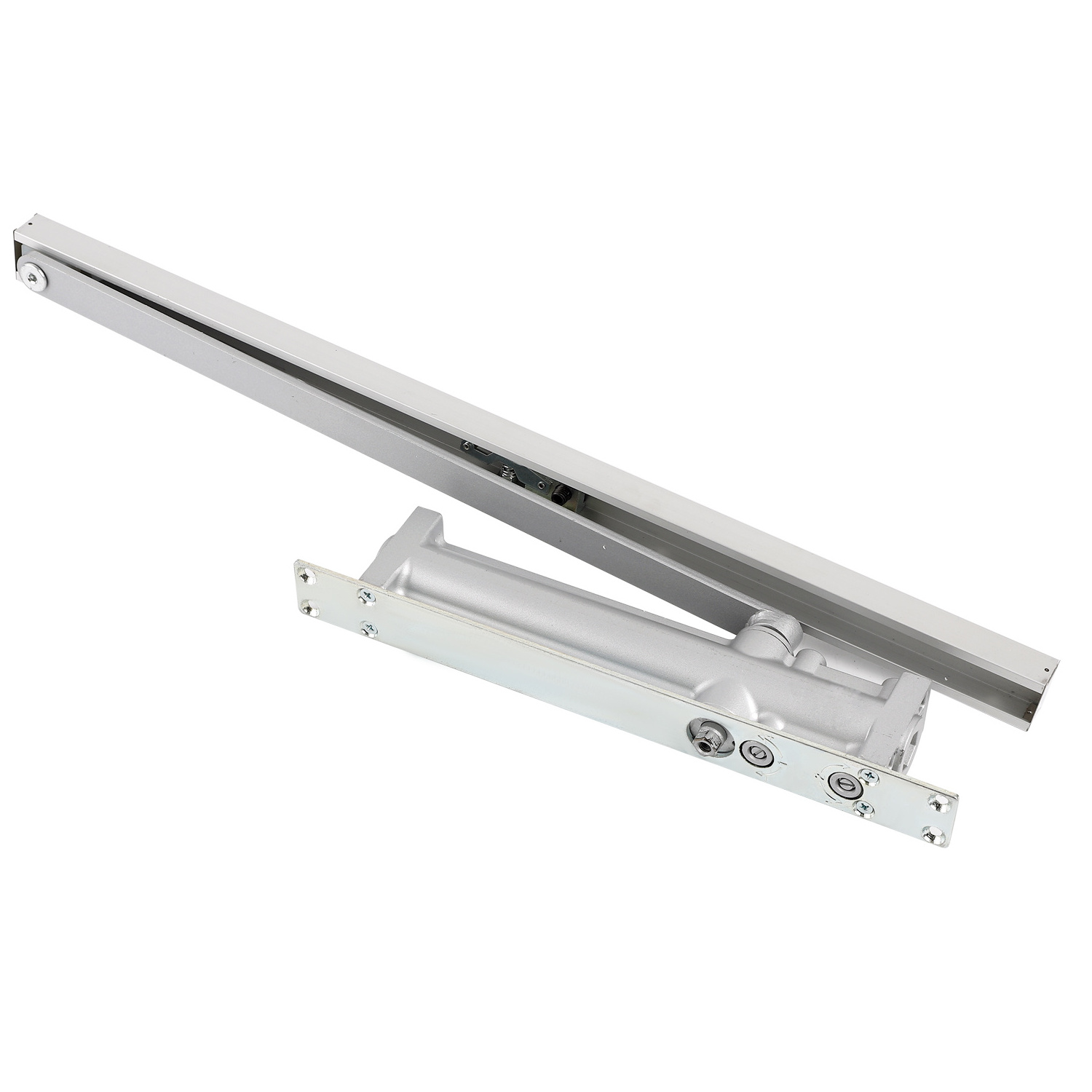

High Quality Concealed Hidden Two Stage Speed Adjustable Fire Rated Door Closer HD-3023
| Technical Parameters |
|
Model |
HD-1503 |
| Applicable Standard | EN1154&ANSI |
| Max Door With | ≤1100mm |
| Max Door Weight | 45-85kg |
| Hold-Open | optional |
| Back check | No |
| Delay | No |
| Latching Speed Adjustment | 0-15° |
| Closing Speed Adjustment | 15°-180° |
| Application Temperature | -40°-60° |
| Dimension:Length*Width*Height | 230mm*62mm*32mm |
| Color | Silver&White&Black(other colors for choosing) |
|
Warranty |
5 years |
| Service Test | Over 500,000 cycles |
| Dimension of Appearance |
| Product Features |
A. Concealed type design, special for hotel doors.
B. Two speed adjustment, closing speed adjust and latching speed adjust.
C. Hold open and non-hold open function can be adjust according to your needs.
D. White, black, golden, Silver, Dark bronze and etc. different color for optional
E.
Use anti-freezing hydraulic oil, can working under -40℃
F.
Tested over 500,000cycles without damage, 5 years warranty
| Product Details |
| Product Advantage |
