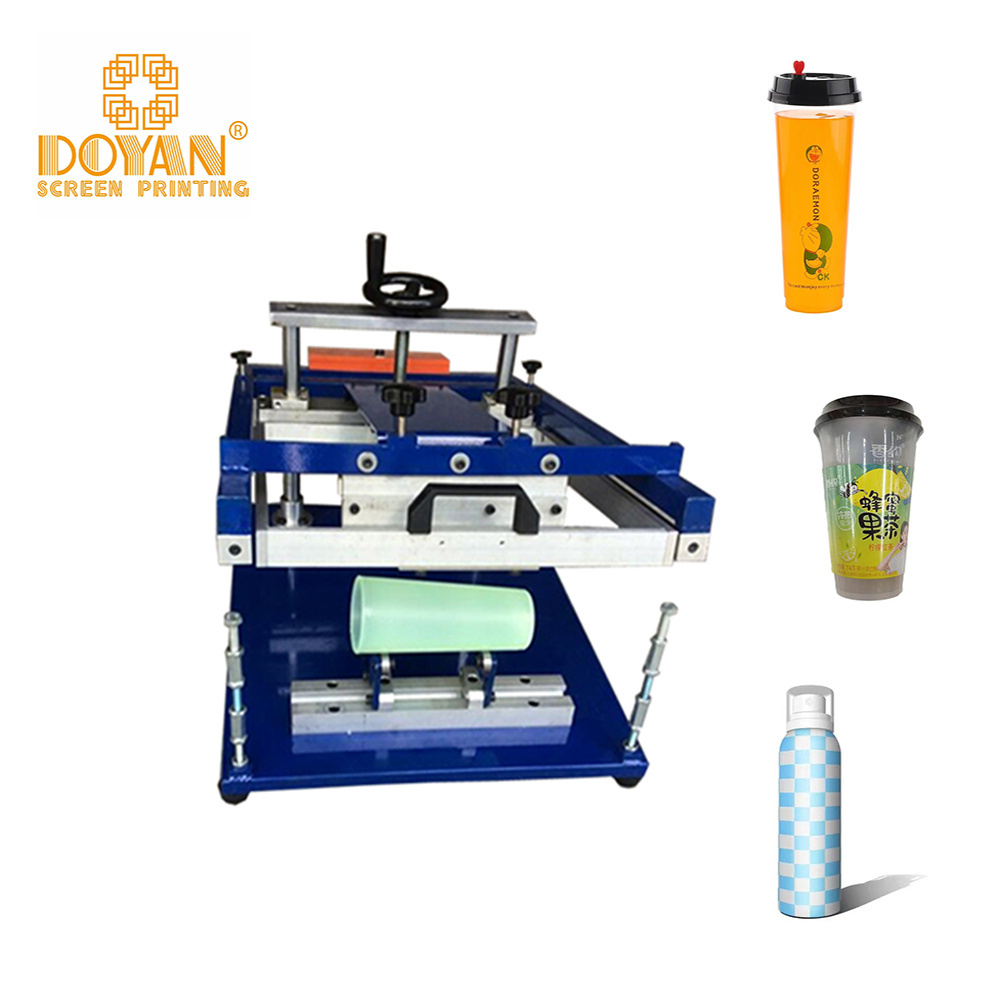

Low price manual cylinder products plastic cup screen printing machine manual

Low price manual cylinder products plastic cup screen printing machine manual

FOB Reference Price: Get Latest Price

≥1 Sets

US $280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China

Brand Name:: DY

Dimensions(L*W*H):: 70x50x35cm

Weight:: 30 KG

Certification:: ISO9001

Warranty:: 1 Year

Color:: 1 Color

frame size:: 320X370mm

printing size:: 200x240mm

perimeter:: 200

weight:: 30kg

voltage:: 0

packing size:: 680x480x350mm

After Warranty Service:: Online support

Marketing Type:: Ordinary Product

Quick Details

Condition:: New

Color & Page:: single color

Voltage:: 0v

Place of Origin:: Hebei, China

Brand Name:: DY

Dimensions(L*W*H):: 70x50x35cm

Weight:: 30 KG

Certification:: ISO9001

Warranty:: 1 Year

Color:: 1 Color

frame size:: 320X370mm

printing size:: 200x240mm

perimeter:: 200

weight:: 30kg

voltage:: 0

packing size:: 680x480x350mm

After Warranty Service:: Online support

Marketing Type:: Ordinary Product

Features:

* Simple structure
* Easy operation
* The width of worktable can be adjusted to meet different diameters

Application:
*Manual cylindric screen printer,very simple instructure and easy to operate,the wildth of worktable can be adjusted according to
different diameter,so it is suitable for printing any cylindric and round products such as bottle,pens,cups and so on,we have five
modes for your choice,every machine have different printing area according to customer's demands.

Model	DY202-S	DY202-M	DYL202-L
Max frame(mm)	320X210	320X370	460X560
Max dia(mm)	φ60	φ160	φ160
Max perimeter(mm)	200	200	200
Max printing size(mm)	100x200	200x240	240x300
Packing size(mm)	500x600mm	500x600mm	500x600mm
Weight	20kg	30kg	35kg

Application:

This machine is for cylinder items printing, suitable for small batch and many varieties ofunits, it is easy to operate, regulate the function is all ready, net frame bracket can do anyadjustment according to the substrates diameter size, before, during and after the printingsurface can be done about the approximate turn adjusting, printing products such as ballpens, cups, etc.
