Quick Details
-
Product Name:
-
Safe Electromagnetic Lock Use Magnetic Door Lock
-
Plate:
-
185Lx60Wx13H(mm)
-
Holding Force:
-
500kg(1200Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Current Draw:
-
12V/420mA 24V/210mA
-
Signal Output:
-
Dry Contact, Max Rating of Contact Current 3A
-
Surface Temp:
-
≤20°C
-
Operating Temp:
-
-10°C ~ 55°C (14°F~131°F)
-
Suitable Humidity:
-
0~90%(non-condensing)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
EL-1200S
-
Product Name:
-
Safe Electromagnetic Lock Use Magnetic Door Lock
-
Plate:
-
185Lx60Wx13H(mm)
-
Holding Force:
-
500kg(1200Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Current Draw:
-
12V/420mA 24V/210mA
-
Signal Output:
-
Dry Contact, Max Rating of Contact Current 3A
-
Surface Temp:
-
≤20°C
-
Operating Temp:
-
-10°C ~ 55°C (14°F~131°F)
-
Suitable Humidity:
-
0~90%(non-condensing)
Hot selling products

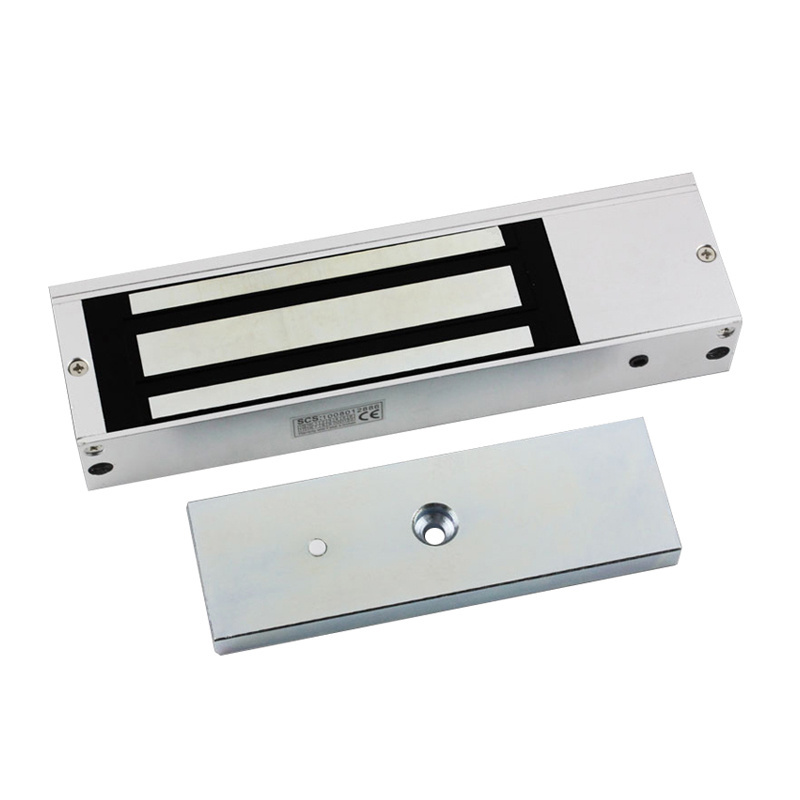

500kg Holding Force Safe Electromagnetic Lock Use Magnetic Door Lock with LED(Red
Model No.: EL-1200S
How does a magnetic lock work?
Magnetic locks use electromagnetism to control the entire locking mechanism.
When the magnet is energized, it bonds to the armature and locks the door.
To allow access or egress, a switch must be provided to de-energize the magnet.
As the electric power activates the magnet, the bolt locks the door.
|
EL-1200 |
Without indicator lights |
|
EL-1200S |
With LED (Red only) |
|
EL-1200SD |
Built-in LED and door sensor |
|
EL-1200ST |
Built-in LED, door sensor, and time delay |
|
EL-1200SZ |
LED, door sensor, and Buzzer |
|
Lock size |
265Lx72Wx40H(mm) |
|
Plate |
185Lx60Wx13H(mm) |
|
Holding Force |
500kg(1200Lbs) |
|
Voltage |
DC12V or DC24V (adjustable) |
|
Current Draw |
12V/420mA 24V/210mA |
|
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10°C ~ 55°C (14°F~131°F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
4.5kg |
|
Standard Packing |
4pcs |
