Quick Details
-
treatment of air flow:
-
2000m3/h
-
filtration area:
-
10 m2
-
voltage:
-
380v/50hz
-
Power:
-
2.2kW
-
Cleaning way:
-
Automatic blowing
-
dimensions:
-
700x800x1600 mm
-
Weight:
-
215±5Kg
Quick Details
-
Weight (KG):
-
215
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KAISEN
-
treatment of air flow:
-
2000m3/h
-
filtration area:
-
10 m2
-
voltage:
-
380v/50hz
-
Power:
-
2.2kW
-
Cleaning way:
-
Automatic blowing
-
dimensions:
-
700x800x1600 mm
-
Weight:
-
215±5Kg
Industrial double arms self-cleaning welding smoke extraction for two welding booths
Features
1. The air purifier applies to all kinds of soot purifications caused by welding, grinding, as well as recycling of rare
metals, precious materials, etc
2. For the potential of fire and molten slag particles, three protective measures are used inside purifier, to make it
a longer life, more secure and reliable.
3. Intelligent model using PLC automatic control makes operation easy; filter rotates with the use of full-automatic
cleaning in all directions, so that there is a more thorough cleaning filter surface, always to guarantee a
constant air volume absorption; Filter is made of imported microporous PTFE film , filtering with high precision
can meet GB indoor emission standards.
4. Power phase sequence instructions, short-circuit protection for lack of phase, with shutdown protection
measures when too high temperature.
5. With large air volume, low noise and better capture effect. Suction hose uses the real anti-temperature, wear-
resistant compounded materials, without crack and damage for sparks but longer life.
6. Photoelectric switch, efficient and energy-saving, with lighting fixtures cantilever cover (optional).

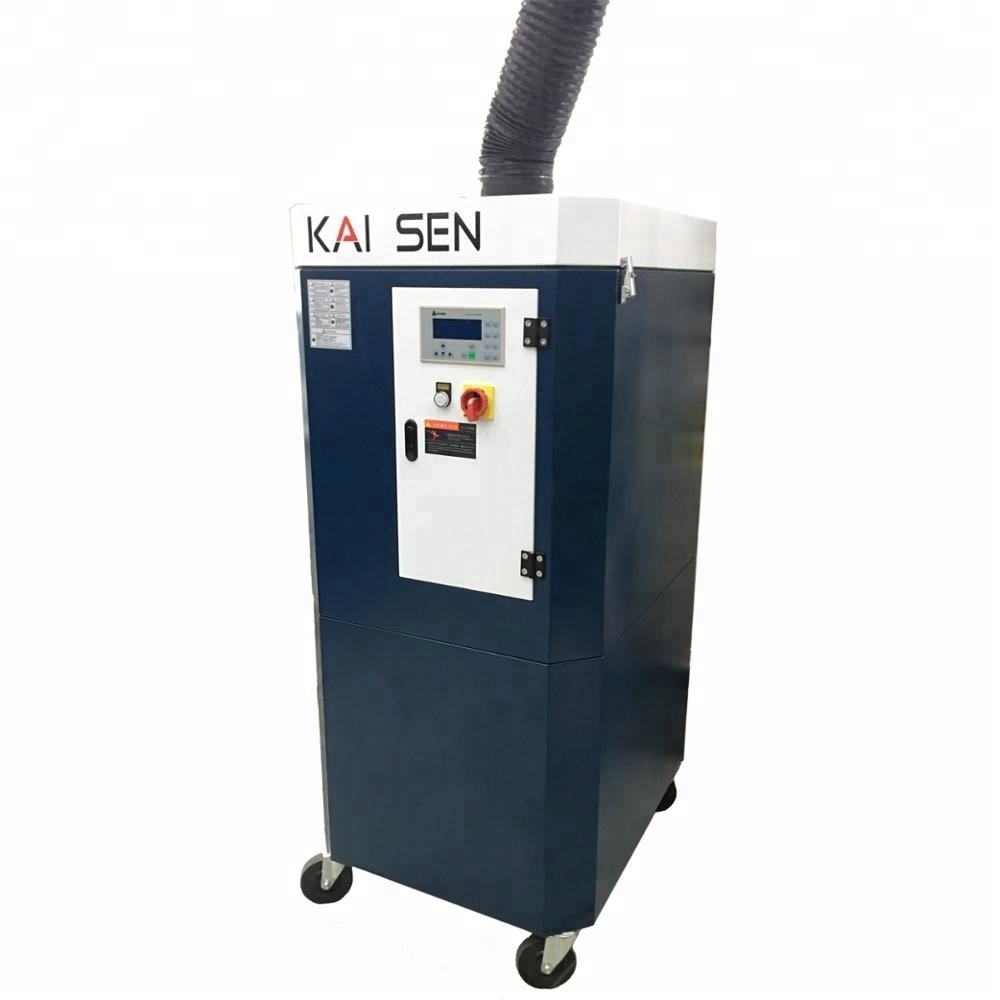

MOBILE PORTABLE WELDING FUME EXTRACTOR - WITH IMPULSE COUNTER BLOWING
1. Economic type or Intelligent type
2. Exported many years
3. Professional
4. 360 degree flexible suction arm
Parameters
|
Model |
KSZ-1.5S |
KSZ-1.5S1 |
KSZ-1.5S2 |
|
air flow |
1500 (m 3 /h) |
2000 (m 3 /h) |
2000 (m 3 /h) |
|
Motor Power |
1.5 (kw) |
2.2 (kw) |
2.2 (kw) |
|
Voltage |
380( V/50 Hz) |
380( V/50 Hz) |
380( V/50 Hz) |
|
Filtering area |
10 (m 2 ) |
10 (m 2 ) |
20 (m 2 ) |
|
Surface Cleaning Methods |
Automatic Cleaning |
Automatic Cleaning |
Automatic Cleaning |
|
Compressed Air |
0.5~0.6 (MPa) |
0.5~0.6 (MPa) |
0.5~0.6 (MPa) |
|
Filtration Efficiency |
>99.9% |
>99.9% |
>99.9% |
|
Quantity of suction arm |
1 set (φ160 3m) |
1 set (φ200 3m) |
2 sets (φ160 3m) |
|
Noise |
≤72 dB(A) |
≤74 dB(A) |
≤74 dB(A) |
|
Demission |
700×800×1600 (mm) |
700×800×1600 (mm) |
700×800×1600 (mm) |
|
Weight |
210 ± 10 (kg) |
215 ± 10 (kg) |
215 ± 10 (kg) |
