Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
E1 VoIP Media Trunking Gateway from E1 to SIP
-
Interfaces:
-
E1/T1 and SIP/SIP Subscribers
-
Concurrent calls:
-
64 or 128 concurrent calls per E1/T1 card
-
Slot:
-
Two slot for E1/T1 cards
-
E1/T1 card:
-
4E/T1 ports per card
-
Signaling:
-
ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS
-
SIP Protocol:
-
SIP 2.0 RFC3261
-
Dimension:
-
Rack Mountable 1U Chassis
-
Management:
-
Web GUI, Telnet and Console Commands
-
Voice Codec:
-
G.711, G.729, G.726, G.723, etc
Quick Details
-
Type:
-
VoIP Gateway
-
Brand Name:
-
NICEUC
-
Model Number:
-
E1 Trunking Gateway
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
E1 VoIP Media Trunking Gateway from E1 to SIP
-
Interfaces:
-
E1/T1 and SIP/SIP Subscribers
-
Concurrent calls:
-
64 or 128 concurrent calls per E1/T1 card
-
Slot:
-
Two slot for E1/T1 cards
-
E1/T1 card:
-
4E/T1 ports per card
-
Signaling:
-
ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS
-
SIP Protocol:
-
SIP 2.0 RFC3261
-
Dimension:
-
Rack Mountable 1U Chassis
-
Management:
-
Web GUI, Telnet and Console Commands
-
Voice Codec:
-
G.711, G.729, G.726, G.723, etc
Hot sale high quality E1 to Ethernet Protocol Converter Media
Product Detail
| Product Name | E1 VoIP Media Trunking Gateway from E1 to SIP |
| Interfaces | E1/T1 and SIP/SIP Subscribers |
| Concurrent calls | 64 or 128 concurrent calls per E1/T1 card |
| Slot | Two slot for E1/T1 cards |
| E1/T1 card | 4E/T1 ports per card |
| Signaling | ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS |
| SIP Protocol | SIP 2.0 RFC3261 |
| Dimension | Rack Mountable 1U Chassis |
| Management | Web GUI, Telnet and Console Commands |
| Voice Codec | G.711, G.729, G.726, G.723, etc |
| Product Keywords | E1 to Ethernet Protocol Converter,E1 to Ethernet Media Converter |
What is a VoIP Gateway?
A VoIP gateway allows you to convert between a traditional telephony connection and a modern VoIP connection using SIP.
VoIP Media Trunk Gateway/E1 to SIP VoIP Gateway is digital VoIP gateway converts signaling/voice media between digital TDM connections and VoIP connections, which brings the cost savings of VoIP to your legacy PBX with the powerful combination of Niceuc VoIP Media Gateway. The gateway acts as a bridge connecting the legacy system through a PRI interface to SIP trunks through your existing internet connection. Niceuc Gateways instantly upgrade a legacy phone system, allowing it to use a SIP trunk out to an ITSP; and connects SIP Trunking to reduce long-term telephony costs by replacing traditional phone lines.
Niceuc VoIP media gateway is a cost effective and standards-compliant VoIP Media Trunk Gateway from E1/T1 to Ethernet, which is generally called TG (Trunking Gateway) or SG (Signaling Gateway) or VoIP Voice Gateway, designed for enterprise users and ITSP (Internet Telephony Service Provider) environments.
Three models NC-MG900 / NC-MG916 / NC-MG1000 locate on the interface of PSTN / TDM and IP network, providing signaling transformation between SS7, ISDN PRI, R2/CAS, Q.SIG, V5.2, DPNSS signaling and SIP Protocol, as well as perform the conversion between PSTN / TDM and VoIP SIP.
·Signaling support: -SS7 (ITU-T Q.700 series), 24 bits/14 bits PC, ISUP/TUP; -ISDN PRI (ITU-T Q.931, Q.921); -V5.2 (ITU-T G.964, G.965); -R2/CAS; -Q.SIG; -DPNSS.
·VoIP protocol support: -SIP
RFC3326 (Reason header in SIP messages),
RFC3372 (SIGTRAN and SIP-T), RFC2327 (sdp),
RFC3398 (ISUP-SIP Mapping), RFC3261 (sip),
RFC5806 (Diversion Indication in SIP),
RFC2833 (DTMF), RFC3362 (t.38), RFC 3261(SIP 2.0),
RFC3204 (MIME media types for ISUP and QSIG Objects),
RFC3578 (Mapping of ISUP overlap to SIP).
·Codec:G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726,GSM,ARM, ILBC.
·Echo Cancellation: G.168 128 ms Network Echo Canceller.
·FAX: T30, T38 and pass through.
·Generic Voice Activity Detection (VAD), Generic Comfort Noise Generation (CNG), Calling control: Called/Calling party number translation; second stage dialing, Auto dialing with DTMF, Ring Back tone, DTMF, Caller ID, and Flexible input/output Gain Control.
·Network Protocol: IP, NAT, ICMP, ARP, HTTP, BOOTP, FTP, TFTP, DHCP, PPPOE, SNMP, Diff-Serv

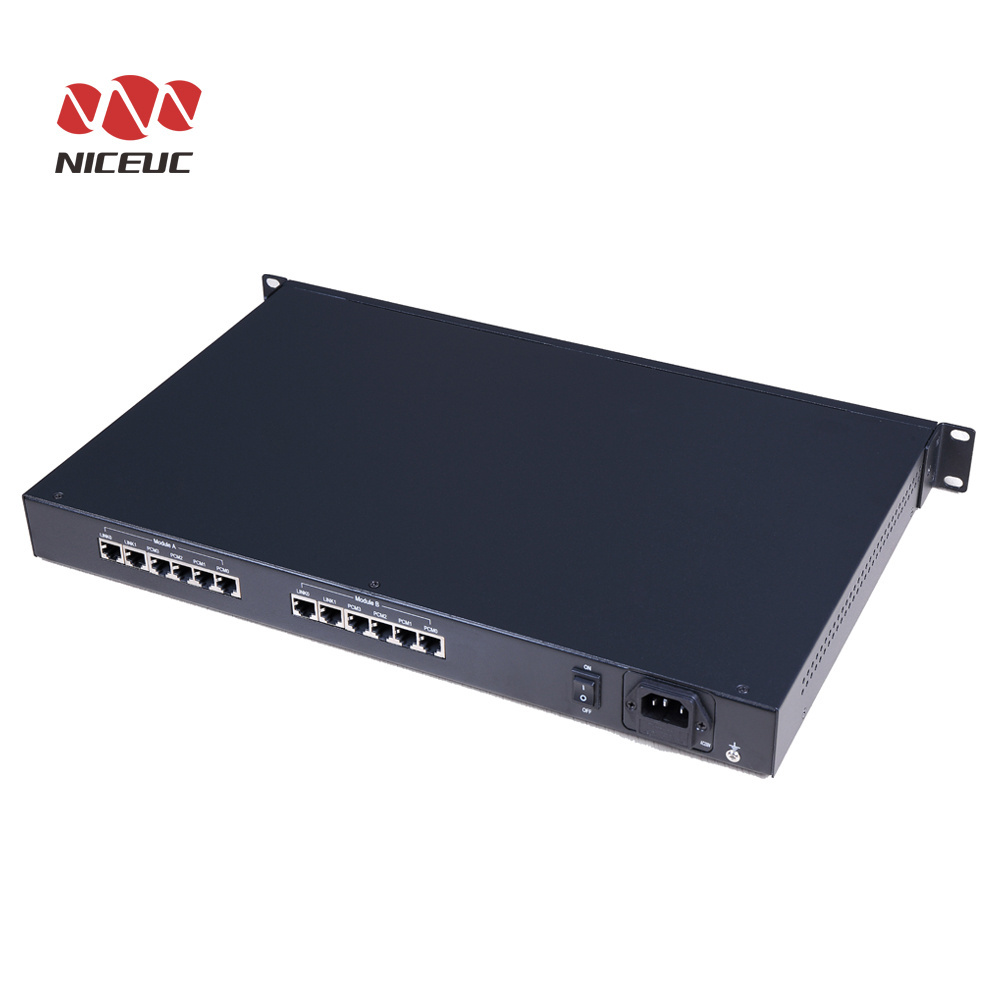

VoIP Media Trunk Gateway, we have three models:
--1U device NC-MG900 has two slots for E1 card;
--2U device NC-MG916 has four slots for E1 card;
--3.5U device NC-MG1000 has thirteen slots for E1 card;
All three models use the exactly same E1 card.
Specification of per E1 card:
-One independent IP address;
-1 to 4 E1 / T1 ports;
-2 Ethernet ports (10/100/1000M Base-T) and 1 console ports (RS232 PORT);
-128 G.711 Channels;
-64 G.723, G.726, G.729 Channels;
-32 T.38 Fax Channels, 64 Conference Bridge;
-500 SIP Subscribers (All Niceuc VoIP Trunking Gateway can also work as IP PBX at same time)
Picture of E1 card:
Which industy VoIP Media Gateway will be used in:
·IPCC(IP Call center);
·IP dispatcher;
·Unify communication;
·E1 Trunking port for operators, traditional switch, IP soft switch and for software of IPCC;
We are trying to use following diagram to describe how and where our VoIP Media Trunk Gateway will be used:
