Quick Details
-
Brand Name:
-
DP ROLLER
-
Product name:
-
Conveyor Roller
-
Shell material:
-
Steel, Stainless Steel,aluminum alloy
-
OEM:
-
Accept OEM
-
Load Capacity:
-
0-300KGS
-
Power:
-
Manual/Gravity
-
Function:
-
Conveyor Parts
-
Bearing:
-
Precision Bearing
-
Bearing house:
-
Stamped steel
-
Diameter:
-
38 - 108mm
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DP ROLLER
-
Product name:
-
Conveyor Roller
-
Shell material:
-
Steel, Stainless Steel,aluminum alloy
-
OEM:
-
Accept OEM
-
Load Capacity:
-
0-300KGS
-
Power:
-
Manual/Gravity
-
Function:
-
Conveyor Parts
-
Bearing:
-
Precision Bearing
-
Bearing house:
-
Stamped steel
-
Diameter:
-
38 - 108mm
Products Description

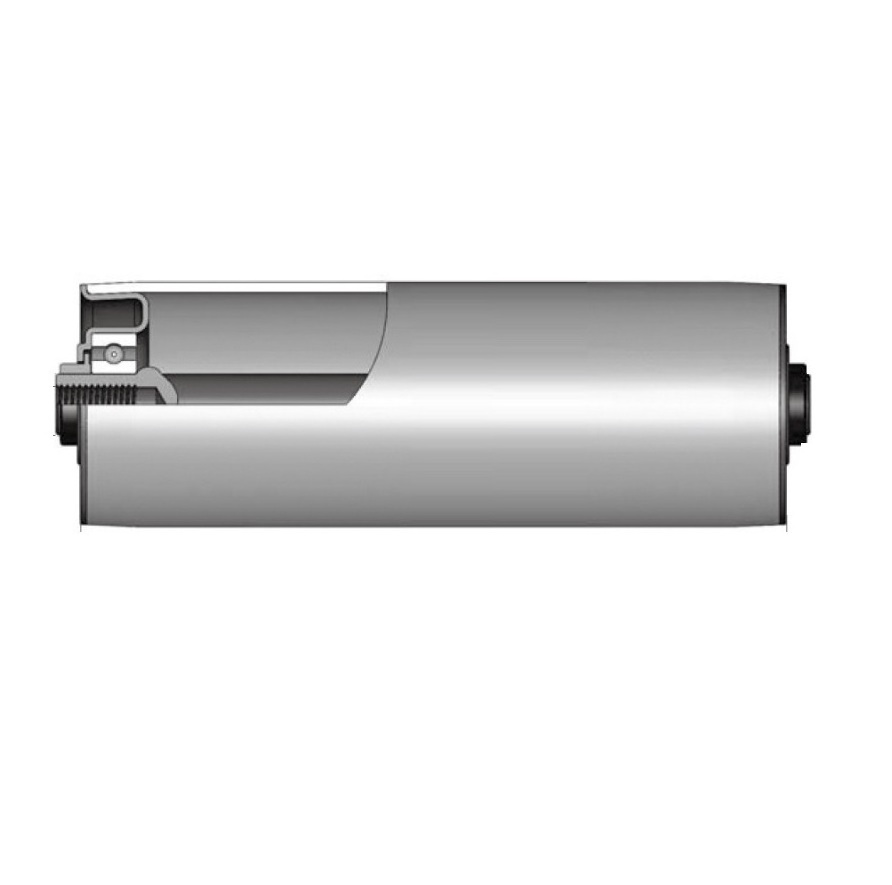

DP1300 Gravity Roller (Steel stamped Bearing housing)
Universal Conveyor Roller
Application: Gravity Roller Conveyor, Gravity Racking,Manual roller conveyor;
Application environment:Indoor(Food factory , Electronics factory,Warehouse, ……)
Conveyor Good: Carton, Turnover box, Pallet….
Products Features:
1. Low environmental requirements
They can be used in both high and low temperature applications .
2. High reliability
The roller offers a very high degree of functional dependability.
3. Lateral loading
The precision ball bearing is secured in the steel stamped bearing housing. The bearing is tight and durable.
Able to with stand greater axial forces than DP1200
4. Temperature range: -20℃ to 80℃
5. Various specifications and High load capacity
6. Anti-static treatment (specify when ordering)
4. Temperature range: -20℃ to 80℃
5. Various specifications and High load capacity
6. Anti-static treatment (specify when ordering)
General technical data
|
No.
|
Part
|
Description
|
|
1
|
Tube
|
Zinc-plated Steel, Stainless Steel,PVC, Chrome-plated Steel,Aluminium alloy
|
|
2
|
Shaft
|
Uncoated steel, zinc-plated steel, stainless steel
|
|
3
|
Bearing housing
|
Steel, Zinc-plated
|
|
4
|
Bearing
|
Precision ball bearing,2RZ,C3
|
Structure Drawing
DP1300 Series Gravity Roller
Female Thread
|
Tube Dia.(D)
|
Shaft Dia.(d)
|
|
|
|
Ø38/Ø42/Ø48
|
Ø12
|
E=W+10
|
L=W+11
|
|
Ø50/Ø57/Ø63.5
|
Ø12/Ø15
|
E=W+10
|
L=W+11
|
|
Ø60
|
Ø12/Ø15/Ø20
|
E=W+10
|
L=W+11
|
|
Ø76
|
Ø15/Ø20
|
E=W+10
|
L=W+11
|
|
Ø80/Ø89/Ø108
|
Ø20
|
E=W+10
|
L=W+11
|
|
Tube(Material)
|
Tube(Specification)
|
Shaft
|
|
|
||
|
|
|
Ø12(M8*15)
|
Ø15(M10*20)
|
Ø20(M12*25)
|
||
|
Steel,Zinc-plate
|
Ø38*1.5mm
|
√
|
|
|
||
|
|
Ø42*1.5mm
|
√
|
|
|
||
|
|
Ø48*1.5mm
|
√
|
|
|
||
|
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø50*2.0mm
|
√
|
√
|
|
||
|
|
Ø57*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
|
|
Ø60*3.0mm
|
|
√
|
√
|
||
|
|
Ø76*3.0mm
|
|
√
|
√
|
||
|
|
Ø80*3.0mm
|
|
|
√
|
||
|
|
Ø89*3.0mm
|
|
|
√
|
||
|
|
Ø108*3.0mm
|
|
|
√
|
||
|
Stainless Steel
|
Ø38*1.5mm
|
√
|
|
|
||
|
|
Ø42*1.5mm
|
√
|
|
|
||
|
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
|
|
Ø76*3.0mm
|
|
√
|
√
|
||
|
Aluminum Alloy
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
DP1300 Series Gravity Roller Spring Loading
|
Tube Dia.(D)
|
Shaft Dia.(d)
|
|
|
|
Ø38/Ø42
|
Ø12
|
E=W+10
|
L=W+30
|
|
Ø48/Ø50/Ø57/Ø63.5
|
Ø12/Ø15/11hex
|
E=W+10
|
L=W+30
|
|
Ø60
|
Ø12/Ø15/Ø20
|
E=W+10
|
L=W+30
|
|
Ø76
|
Ø20
|
E=W+10
|
L=W+30
|
|
Ø80/Ø89/Ø108
|
Ø20
|
E=W+10
|
L=W+30
|
|
Tube(Material)
|
Tube(Specification)
|
|
Shaft
|
|
|
|||
|
|
|
11hex
|
Ø12
|
Ø15
|
Ø20
|
|||
|
Steel,Zinc-plate
|
Ø38*1.5mm
|
|
√
|
|
|
|||
|
|
Ø42*1.5mm
|
|
√
|
|
|
|||
|
|
Ø48*1.5mm
|
√
|
√
|
|
|
|||
|
|
Ø50*1.5mm
|
√
|
√
|
√
|
|
|||
|
|
Ø50*2.0mm
|
|
√
|
√
|
|
|||
|
|
Ø57*1.5mm
|
√
|
√
|
√
|
|
|||
|
|
Ø60*1.5mm
|
|
√
|
√
|
|
|||
|
|
Ø60*2.0mm
|
|
√
|
√
|
√
|
|||
|
|
Ø60*2.0mm
|
√
|
√
|
√
|
|
|||
|
|
Ø76*3.0mm
|
|
|
√
|
√
|
|||
|
|
Ø80*3.0mm
|
|
|
|
√
|
|||
|
|
Ø89*3.0mm
|
|
|
|
√
|
|||
|
|
Ø108*3.0mm
|
|
|
|
√
|
|||
|
Stainless Steel
|
Ø38*1.5mm
|
|
√
|
|
|
|||
|
|
Ø42*1.5mm
|
|
√
|
|
|
|||
|
|
Ø50*1.5mm
|
√
|
√
|
√
|
|
|||
|
|
Ø60*2.0mm
|
|
√
|
√
|
|
|||
|
|
Ø76*3.0mm
|
|
|
√
|
√
|
|||
|
Aluminum Alloy
|
Ø50*1.5mm
|
√
|
√
|
√
|
|
|||
|
|
Ø60*2.0mm
|
|
√
|
√
|
|
|||
DP1300 Series Gravity Roller
Milled Flats
|
Tube Dia.(D)
|
Shaft Dia.(d)
|
|
|
|
Ø38/Ø42/Ø48
|
Ø12
|
E=W+10
|
L=W+32
|
|
Ø50/Ø57/Ø63.5
|
Ø12/Ø15
|
E=W+10
|
L=W+32
|
|
Ø60
|
Ø12/Ø15/Ø20
|
E=W+10
|
L=W+32
|
|
Ø76
|
Ø15/Ø20
|
E=W+10
|
L=W+32
|
|
Ø80/Ø89/Ø108
|
Ø20
|
E=W+10
|
L=W+32
|
|
Tube(Material)
|
Tube(Specification)
|
Shaft
|
|
|
||
|
|
|
Ø12(b/h=8/10)
|
Ø15(b/h=12/10)
|
Ø20(b/h=16/10)
|
||
|
Steel,Zinc-plate
|
Ø38*1.5mm
|
√
|
|
|
||
|
|
Ø42*1.5mm
|
√
|
|
|
||
|
|
Ø48*1.5mm
|
√
|
|
|
||
|
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø50*2.0mm
|
√
|
√
|
|
||
|
|
Ø57*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
|
|
Ø60*3.0mm
|
|
√
|
√
|
||
|
|
Ø76*3.0mm
|
|
√
|
√
|
||
|
|
Ø80*3.0mm
|
|
|
√
|
||
|
|
Ø89*3.0mm
|
|
|
√
|
||
|
|
Ø108*3.0mm
|
|
|
√
|
||
|
Stainless Steel
|
Ø38*1.5mm
|
√
|
|
|
||
|
|
Ø42*1.5mm
|
√
|
|
|
||
|
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
|
|
Ø76*3.0mm
|
|
√
|
√
|
||
|
Aluminum Alloy
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
