ceramic igniter for fire pit pellet stove

ceramic igniter for fire pit pellet stove

FOB Reference Price: Get Latest Price

≥10 Pieces

US $9.9

≥5000 Pieces

US $8

≥10000 Pieces

US $6.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: KRHX

Model Number:: KR-H1

Application:: fire pit pellet stove

Shape:: Tube

Advantage:: Energy-Saving,Superior Thermal

Working time:: 30000(h)

Flange:: Ceramic

Temperature:: 900-1000℃

Time to ignition:: 50 seconds

After Warranty Service:: Video technical support

After-sales Service Provided:: Online support

Certification:: CE ROHS

Quick Details

Material:: Ceramic

Feature:: Sustainable

Place of Origin:: Shaanxi, China

Brand Name:: KRHX

Model Number:: KR-H1

Application:: fire pit pellet stove

Shape:: Tube

Advantage:: Energy-Saving,Superior Thermal

Working time:: 30000(h)

Flange:: Ceramic

Temperature:: 900-1000℃

Time to ignition:: 50 seconds

After Warranty Service:: Video technical support

After-sales Service Provided:: Online support

Certification:: CE ROHS

Products Description

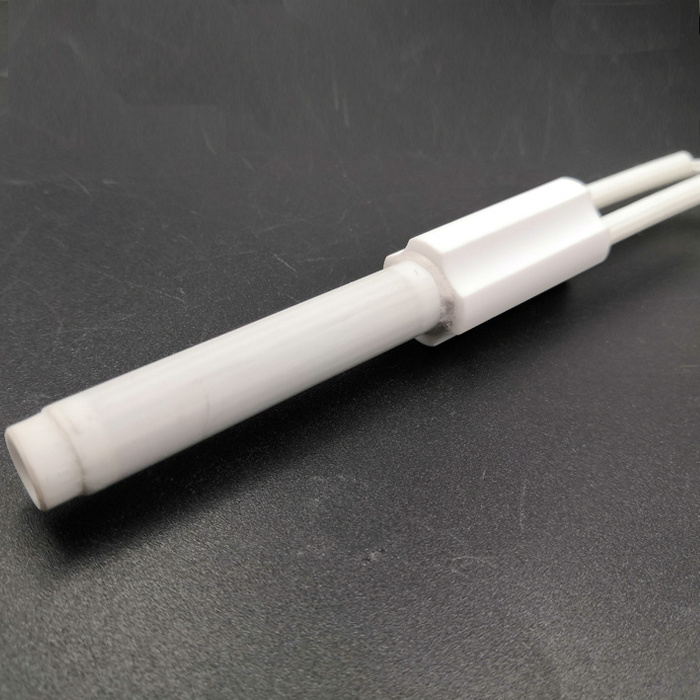

C eramic igniter for fire pit pellet stove

MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. MCH refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.

Specifications

Product Name	ceramic igniter for fire pit pellet stove
Size	Diameter: 11.55mm. Total length: 93mm. Undercut length: 62 mm.
Power	200W
Maximum temperature	970 ° C
Working Life	Tested for over 10,000 ON / OFF cycles, with fast ignition times.
Mounts on stoves	- pit grill

Detailed Images

Application

Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills. It has a high efficiency(more than 90%)of ignition and very easy to install before operating.

•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner

Related Products

φ11.5*93mm

230V 230W

φ93*71mm

12V 90W

φ11.5*93mm

230V 230W

φ11.5*106mm

120V 300W

φ 11.5*106mm

120V 300W

φ9.3*71mm

230V 230W

φ11.5*126mm

120V 250W

φ 9.3*71mm

120V 140W

φ8.8*71mm

12V 80W

* We can provide:

1. 100% on time shipment

2. 100% payment protection

3. 100% product quality protection

Packing & Delivery

Packaging Details :1000pcs/CTN, each CTN with single box, 40CTN/pallet. Export standard, 100% no damage.

Delivery Time:3-15days.

Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the best work.

Our Company

Shaanxi Kairuihongxing Electronic Co.,Ltd is a professional domestic and foreign trade, production and sales integration of companies, we produce all types of ceramic igniters, ozone generator ceramic plate and iqos heating blade.

Our company was established in 2007, have many years of history in the ceramic heating industry,it can also be in accordance with the requirements of the project put forward by your company, by our professional team which will set the stature for you do not trouble back at home of the one-stop service from designation installation and debugging to production.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Europe. At the same time we has obtained ISO9000, CE, ROHS certificate.

If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

FAQ

Q: Are you trading company or manufacturer?
A: We are a company with own factory.

Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. 3 to 7 working days for sample,7 to 12 working days for mass production goods.

Q: Do you provide samples? is it free or extra?
A: Yes , we can provide free samples , and we have different customer make their own OEM product .so we also can make product as per your requirement

Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
