UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame
UPVC PVC profile making machine/production line/extrusion plant for window and door frame

UPVC PVC profile making machine/production line/extrusion plant for window and door frame

FOB Reference Price: Get Latest Price
≥1 Sets
US $30000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Screw Speed (rpm):
36 rpm
Place of Origin:
Jiangsu, China
Brand Name:
IVIMA
Voltage:
customized
Dimension(L*W*H):
unapplicable
Power (kW):
55
Weight:
4500 KG
Motor brand:
Siemens Beide
Inverter:
ABB Brand
Electric:
Siemens brand
Temperature control:
Omron
Marketing Type:
Ordinary Product

Quick Details

Screw Design:
Double-screw
Screw L/D Ratio:
Unapplicable
Screw diameter (mm):
51/65/80/92
Screw Speed (rpm):
36 rpm
Place of Origin:
Jiangsu, China
Brand Name:
IVIMA
Voltage:
customized
Dimension(L*W*H):
unapplicable
Power (kW):
55
Weight:
4500 KG
Motor brand:
Siemens Beide
Inverter:
ABB Brand
Electric:
Siemens brand
Temperature control:
Omron
Marketing Type:
Ordinary Product
Product Overview

Machine Introduction

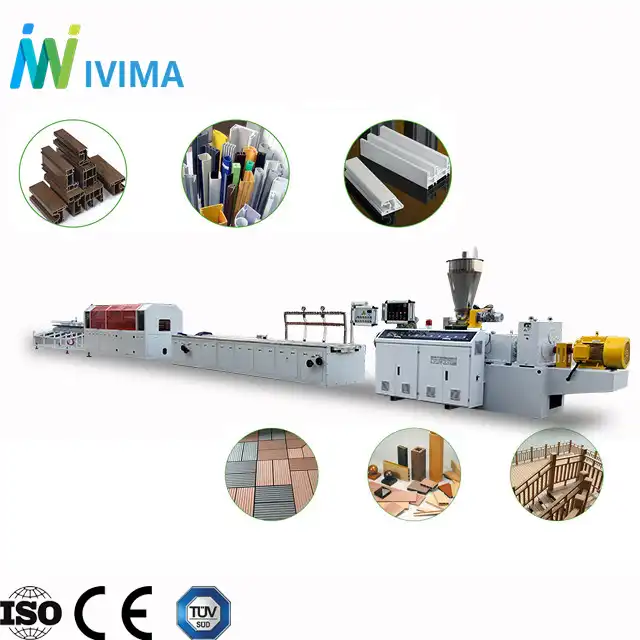

PVC profile production line is mainly used for PVC doors and Windows profiles, wide door plate, window sill plate perforated thread tube (four holes, six holes, seven holes, nine holes, etc.) extrusion. The production line can choose different specifications of conical twin-screw extruder according to different profiles and moulds,and equipped with the corresponding vacuum shaping table, tractor, cutting machine, turning over platform and other auxiliary equipment.
1.Different model Conical twin screw extruder, suitable for high speed extruding of different profile .
2.According to different moulds, the shaping table can choose 4 meters, 6 meters, 8 meters, 11 meters and other specification， Vacuum shaping adopts special increased eddy current cooling system adopts special increased eddy current cooling system to facilitate cooling and shaping to meet the needs of high-speed extrusion. 3.Traction machine adopts our company's unique lifting technology, smooth work, good reliability, large traction. 4.The moving speed of the cutting machine is synchronized with the traction speed.
PRODUCT SPECIFICATIONS
Model
YF180
YF240
YF300
YF400
YF500
YF600
Max width
180mm
240mm
300mm
400mm
500mm
600mm
Extruder
SJZ51/105
SJZ65/132
SJZ65/132
SJZ80/1156
SJZ80/156
SJZ80/156
Main power
22kw
37kw
37kw
55kw
55kw
75kw
Capacity
100-150KGH
150-200KGH
150-200KGH
250-300KGH
250-300KGH
300-350KGH
FEATURES AT A GLANCE
1.Reliable gear box
2.Bi-metallic screw and barrel
3.Oil cooling for screw and barrel
4.Fast cooling calibration mould
5.Water temperature control automatically
6. Reliable rubber block
7. protection film wrapping on line
8. Hot blade cutting
9. cutting length control automatically
10.Siemens brand motor and electrical part
Main extruder
mould
calibration table
hall off and cutter
stacker
final profile
PRODUCT CONFIGURATION
Siemens motor optional
hard teeth gear box
Bi-metallic screw and berral
Siemens electric part
Siemens smart PLC
ABB inverter
Our factory
Successful Project
Project in Kenya
Project in Saudi
Project in China
Recommend Products

hot and cooling cooling unit

Usage:for pvc resin and other additive material mixing.

waste pvc pipe crusher

Usage:to crush the pvc profile and get pvc scraps for recycling using.

pvc pulverizer

Usage: for waste pvc pipe recycling, to mill the pvc scraps and get pvc powder.

FAQ:

What about the payment way?
●TT,L/C at sight or Alibaba trade assurance.

If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.

If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.

If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.

If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free .
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

The voltage,if you can design according to our request?
●Yes.

If you support Alibaba trade assurance pay?
●Yes.100% support.
