- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
COVNA
-
Number of Ways:
-
2 Way Solenoid Valve
-
Valve Operation Type:
-
Normally Closed (NC) or Normally Open (NO)
-
End Connection:
-
BSPP, BSPT, NPT
-
Sealing Material:
-
NBR, EPDM
-
Pressure:
-
0 to 1.0MPa
-
Coil Voltage:
-
DC12~24V (±10%), AC110~220V, 50/60Hz
Quick Details
-
Port Size:
-
1/2"~2", DN15~DN50
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HK11-4 Solenoid Valve
-
Brand Name:
-
COVNA
-
Number of Ways:
-
2 Way Solenoid Valve
-
Valve Operation Type:
-
Normally Closed (NC) or Normally Open (NO)
-
End Connection:
-
BSPP, BSPT, NPT
-
Sealing Material:
-
NBR, EPDM
-
Pressure:
-
0 to 1.0MPa
-
Coil Voltage:
-
DC12~24V (±10%), AC110~220V, 50/60Hz
Dimension:
Coils Parameters:
Specification of Timer:
Timer
Voltage: 24V~240V AC/DC, 50Hz/60Hz
Absorption Current: 4mA Max
Working Temperature: -10°C~50°C
Switch Capacity: 1A
Duty Cycle: 100%ED
IP Rating: IP65
Time ON: 0.5 to 10s
Time OFF: 0.5 to 45min
Connector: DIN43650A
Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.

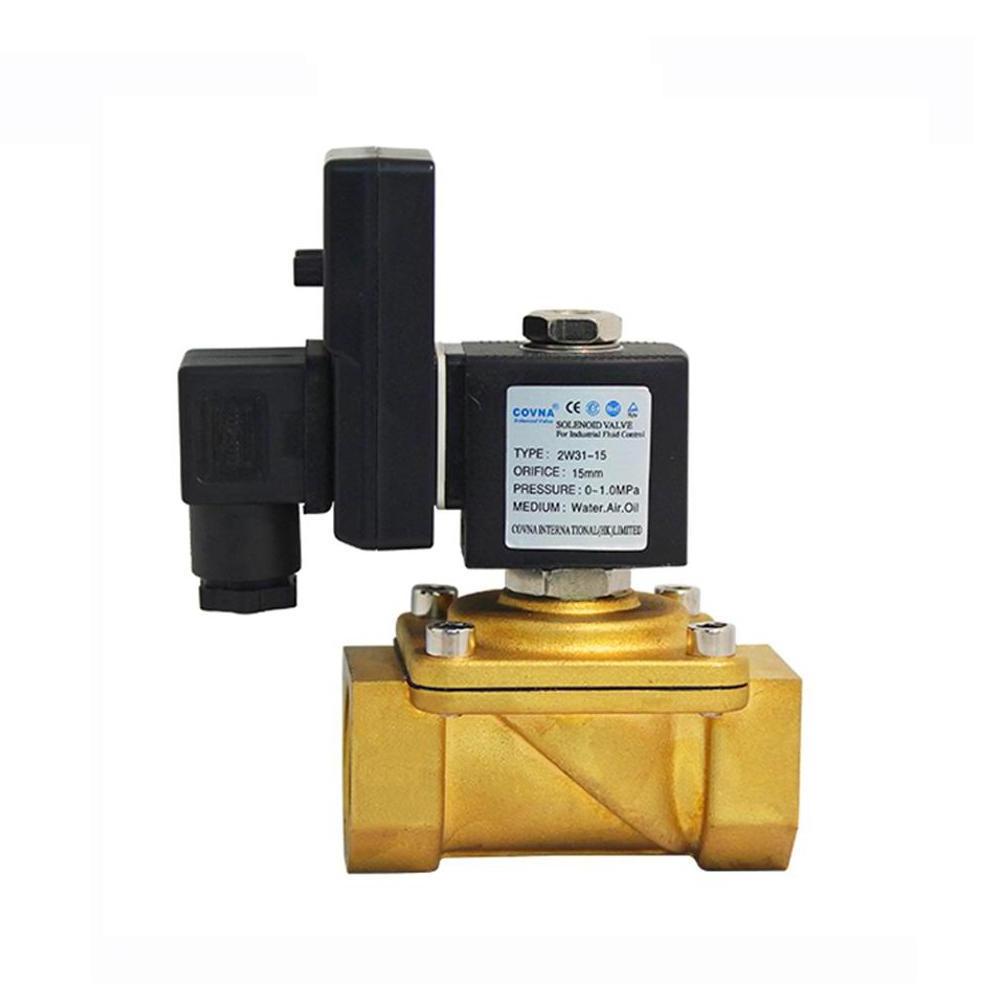

Packing: COVNA 1/2 inch 12V 2 Way Mini Brass Timer Auto Drain Solenoid Valve packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
