Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PEGASUSWINGS
-
Model Number:
-
ceramic fiber board
-
Product name:
-
thermal insulation refractory ceramic fiber board
-
Color:
-
pure white
-
Density(kg/m3):
-
280~350
-
Certificates:
-
CE/ROHS/REACH, ISO9001:2008
-
Package:
-
CARTON
-
Water content(%):
-
<=1
-
Organic content(%):
-
<=5
-
MOQ:
-
10 piece
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PEGASUSWINGS
-
Model Number:
-
ceramic fiber board
-
Product name:
-
thermal insulation refractory ceramic fiber board
-
Color:
-
pure white
-
Density(kg/m3):
-
280~350
-
Certificates:
-
CE/ROHS/REACH, ISO9001:2008
-
Package:
-
CARTON
-
Water content(%):
-
<=1
-
Organic content(%):
-
<=5
-
MOQ:
-
10 piece
| Description |

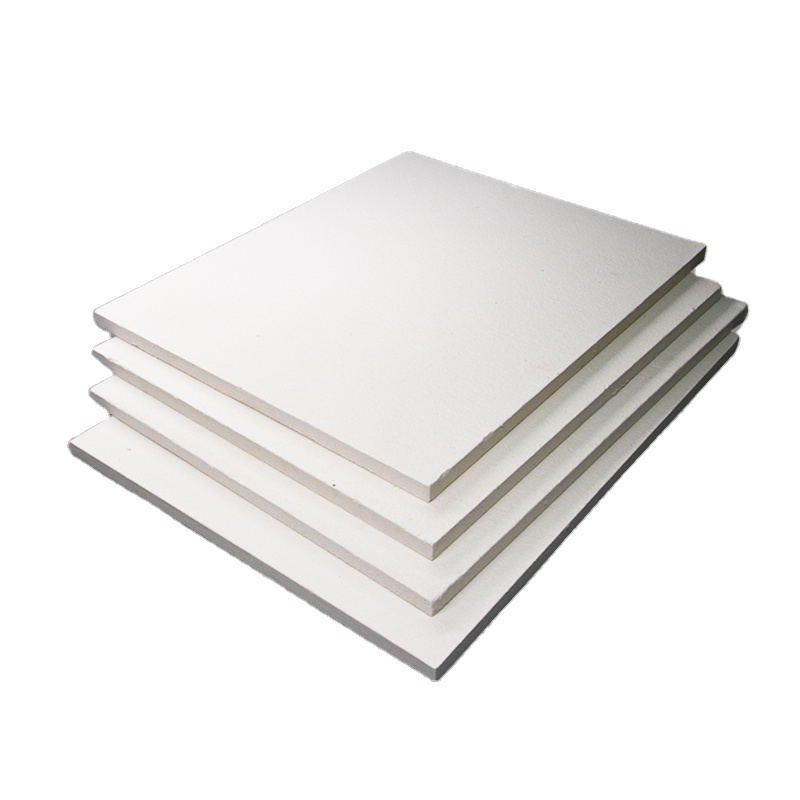

Ceramic fiber board is high performance insulation product manufactured from ceramic fiber and binders, with unique shot removing and vacuum forming process. |
| Characteristics |
Low heat storage and low thermal conductivity Excellent heat stability and thermal shock resistance Structure homogeneity and easy maching |
| Typical Application |
Industrial furnace wall lining high temperature pipe insulation material oven, stove, boiler insulation lining high temperature electrical equipment thermal insulation |
|
Type |
Common |
Standard |
High Pure |
High aluminum |
Zircon |
|
|
Classification temperature (°C) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
|
Working temperature (°C) |
≤1000 |
1050 |
1100 |
1200 |
1350 |
|
|
Color |
White |
Pure White |
Pure White |
Pure White |
Pure White |
|
|
Density (kg/m3) |
260
|
260
|
260
|
260
|
260
|
|
|
Shrinkage on heating (%)(Temperature 24 hours, density as 320kg/m3) |
-4
|
-3
|
-3
|
-3
|
-3
|
|
|
Thermal conductivity of various temperatures (w/m.k) (density 285kg/m3) |
0.085
(400°C)
(800°C)
(1000°C) |
0.085
(400°C)
(800°C)
(1000°C) |
0.085
(400°C)
(800°C)
(1000°C) |
0.085 (400°C) 0.132
(800°C)
(1000°C) |
0.085
(400°C)
(800°C)
(1000°C) |
|
|
Compressive strength (Mpa) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Chemical composition
|
AL2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
|
AL2O3+SIO2 |
96 |
97 |
99 |
99 |
- |
|
|
AL2O3+SIO2+ZrO2 |
- |
- |
- |
- |
99 |
|
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
|
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
|
Dimensions (mm) |
Common Specifications: 600*400*10-50; 900*600*10-50 1200*500*10-50; 1200*1000*10-50;
1000*600*10-50
|
|||||
Package: Cartons or pallet
