Product Main Features:
1, Automatically Release: Power on to release lock, door bounce out automatically to disconnect power;
2, Work mode: Power off to lock, The energization time must not exceed 10 seconds;
3, Electrical Parameters: DC12V 2A;
4, Elasticity can be adjusted, suitable for 0.5 ~ 4Kg door, especially suitable for refrigerated cabinet and express cabinets;
5, Size: length 73mm, width 58mm, thickness 13.3mm;
6, Emergency Release: Manually release;
7, Durable: 500,000 times tested
8, Holding Force: 150Kg force, anti-vibration, tamper design
9, Surface treatment: Electroplating electrophoretic paint (neutral smoke test over 200 hours), this product is suitable for high
temperature +60 degrees, low temperature -40 degrees ambient temperature
- Product Details
- {{item.text}}
Quick Details
-
Item:
-
12V Electronic Cabinet lock
-
Door Status feedback:
-
Yes
-
Work mode:
-
Power to Open
-
Electrical Parameters:
-
DC12V 2A
-
Size:
-
73*58*13mm or 63*49*13mm
-
Durable:
-
500,000 times tested
-
Suitable:
-
Small Cabinet/Express Cabinet/files drawer
-
Holding Force:
-
150Kg force
-
OEM:
-
Accept
-
Logo Printing:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XPOTECH
-
Model Number:
-
216C
-
Item:
-
12V Electronic Cabinet lock
-
Door Status feedback:
-
Yes
-
Work mode:
-
Power to Open
-
Electrical Parameters:
-
DC12V 2A
-
Size:
-
73*58*13mm or 63*49*13mm
-
Durable:
-
500,000 times tested
-
Suitable:
-
Small Cabinet/Express Cabinet/files drawer
-
Holding Force:
-
150Kg force
-
OEM:
-
Accept
-
Logo Printing:
-
Yes
Products Description
Product Paramenters
|
Item
|
12V/2A Fail Secure Electric Bolt Door Express Cabinet Drawer Lock with Feedback and Automatic Open and Switch Checking Function
|
|
Model
|
Xpo-216C
|
|
Feedback
|
2 lines without Feedback function; Xpo-216D with feedback function
|
|
Material
|
steel plate/carbon steel internal part
|
|
Size
|
73x58x13mm; or
63x49x13mm
|
|
work mode
|
Power to open
|
|
Current
|
DC 12V/2A(The suction time is less than 200ms)
|
|
Durable
|
500,000 times tested
|
|
Self-elastic design
|
the elastic force can be adjusted, it can be applied to the door self-elastic weighing 0.5-4kg
|
|
Surface
|
Electroplating electrophoretic paint (neutral smoke test over 500 hours)
|
|
Holding force
|
150Kg force, anti-vibration, tamper design
|
|
Work envioment
|
this product is suitable for high temperature +60 degrees, low temperature -40 degrees ambient temperature
|
|
Installation
|
Small size, simple installation, no right or left, positive or negative;And a mechanical emergency lockout position is reserved;
|

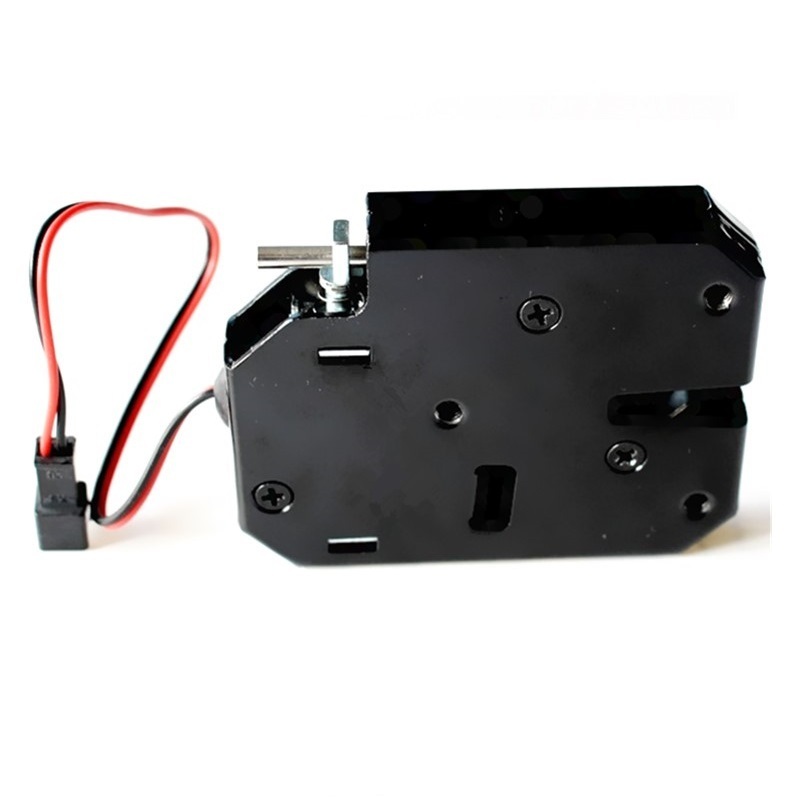

Product Pictures
