Quick Details
-
Brand Name:
-
HORACO
-
Model Number:
-
SW1050
-
Place of Origin:
-
Guangdong, China
-
Condition:
-
Brand-new
-
Ethernet Port:
-
5* 10/100Mbps RJ45 port
-
Dimensions (H x W x D):
-
100*76.5*30mm
-
Power Supply:
-
DC (12-55V)
-
Material:
-
Metal
-
Packet Forwarding Rate:
-
0.744 Mpps
-
Transfer Mode:
-
Storage & forward
-
Packet Cache:
-
448K
-
Jumbo Frame:
-
1536 bytes
-
MAC Address:
-
1K
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1Gbps
-
Brand Name:
-
HORACO
-
Model Number:
-
SW1050
-
Place of Origin:
-
Guangdong, China
-
Condition:
-
Brand-new
-
Ethernet Port:
-
5* 10/100Mbps RJ45 port
-
Dimensions (H x W x D):
-
100*76.5*30mm
-
Power Supply:
-
DC (12-55V)
-
Material:
-
Metal
-
Packet Forwarding Rate:
-
0.744 Mpps
-
Transfer Mode:
-
Storage & forward
-
Packet Cache:
-
448K
-
Jumbo Frame:
-
1536 bytes
-
MAC Address:
-
1K

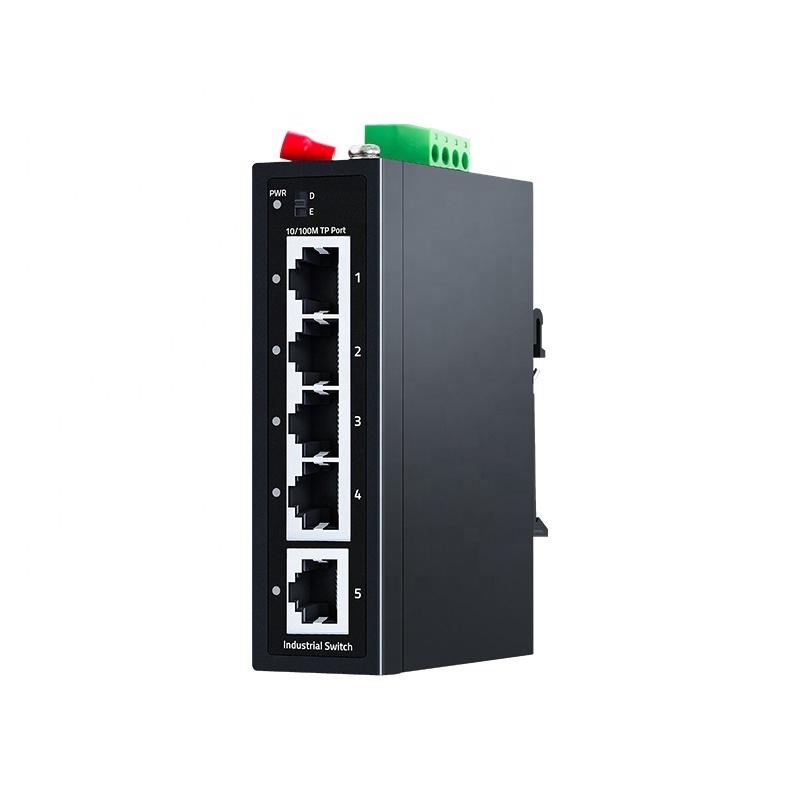

Industrial Ethernet Switch, support 4*10/100M Ethernet ports+ 1* 10/100M Ethernet ports, support DIN-Rail & Wall mounting, support power supply input (DC12-55V),with working temperature -40℃~ +75℃. It can pass the industrial environment certification and comply with FCC and CE standards. The reliable industrial design can ensure your automation system runs stably, and without any interruption.
This series of industrial switches can be widely used in wind, electricity, assembly automation, subway PIS,power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.
[Main Feature]
* 5* 10/100Mbps RJ45 port
* Support IEEE 802.3, IEEE 802.3u, IEEE802.3x Standard
* Support Ethernet Ports 10/100M auto-adaptation
* Industrial grade protection design, -40 to 75°C working temperature
* High strength cast iron housing, DIN35 rail mounting
* Support redundant power supply access, support anti-reverse connection
* Surge Protection: Common Mode 4KV, Differential mode 2KV; ESD: Air 8KV, Contact 6KV
| Power | DC (12-55V) |
| Ethernet Port | 5* 10/100Mbps RJ45 port |
| Bandwidth | 1.0 Gbps |
|
Packet Forwarding
Rate |
0.744 Mpps |
| Packet Cache | 448K |
| MAC Address | 1K |
| Jumbo Frame | 1536 bytes |
| Forwarding Mode | Storage and Forward |
| MTBF | 100000 Hours |
| Network Protocol |
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) |
| Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Network Medium |
10Base-T : Cat 3, 4, 5 or above UTP/STP(≤100m)
100Base-TX : Cat 5 or above UTP/STP(≤100m) |
| Safety Certificate | CE, FCC, RoHS |
|
Working
Environment |
Working Temperature: -40~75°C
Storage Temperature: -40~85°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feet |
| LED Indicator | PWR (Power Indicate),1-5 Green Light(Link & Data) |
| PWR |
On: Power on
Off: Power off |
|
1-5 Green Light (Link
& Data) |
On: Link Connected
Off: Link Disconnect |
| Power Voltage |
Input Voltage :DC 12-55 V
Type of input: 4 PIN Industrial Terminal (block V1+V1- V2+ V2-) |
| Packaging List |
1. Industrial Switch:1 PC
2. User Manual:1PC 3. Certification:1PC 4. Pull-arm : 1 PC |
