Quick Details
-
Dimension(Long * Breadth * High):
-
3330*1800*1950mm
-
Machine Weight:
-
3400 kg, 3400 kg
-
Bucket capacity:
-
0.45m3, 0.45M3
-
Marketing Type:
-
New Product 2023
Quick Details
-
Engine Brand:
-
YANMAR
-
Power:
-
50kw, 50KW
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
3330*1800*1950mm
-
Machine Weight:
-
3400 kg, 3400 kg
-
Bucket capacity:
-
0.45m3, 0.45M3
-
Marketing Type:
-
New Product 2023
Vedio

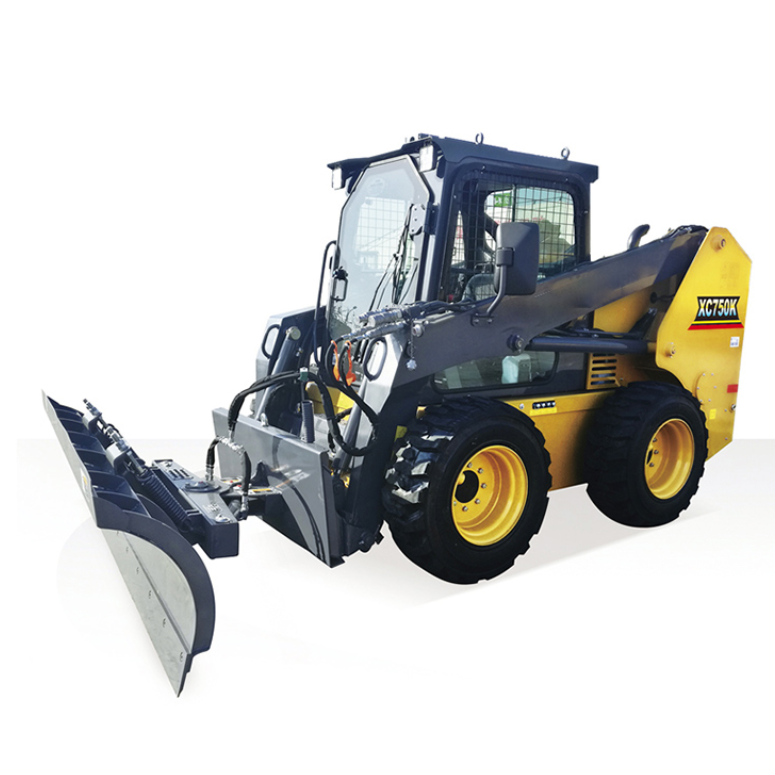

Product Overview
1. Strong power and high energy-conservation and efficiency
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The double speed motor with maximum speed up to 18km/h is installed to achieve high working efficiency. It can complete the site transfer rapidly and efficiently.
* It can respond faster to the needs of emergency working conditions such as rapid snow removing.
* The hydrostatic drive device is applied to realize quick change of appropriate attachments in the operation site.
2. Platform design for high reliability and firmness
* The serialization design is applied for the frame based on the skid- steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.
* The imported high-quality hydraulic parts are applied to realize higher reliability.
3. Multiple Applications: Inclined sweeper/ Snow plough/ Rotary tiller/ Closed sweeper/ Planer/
Manhole cover planer/ Breaking hammer/ Twist drill/ Continuous ditcher
PRODUCT SPECIFICATIONS
|
Description
|
|
Unit
|
XC750K
|
|
|
Engine
|
Rated power
|
(Kw)/rpm
|
50.2/2400
|
|
|
|
|
|
|
|
|
Working hydraulic system
|
Hydraulic flow rate
|
L/min
|
75.9
|
|
|
|
|
|
|
|
|
|
Hydraulic pressure
|
bar
|
210
|
|
|
Traveling System
|
Maximum traveling speed
|
Km/h
|
13.5
|
|
|
|
|
|
|
|
|
|
Tire specification
|
|
10-16.5
|
|
|
Control system
|
Operating weight
|
Kg
|
3400
|
|
|
Loading performance
|
Rated load
|
Kg
|
900
|
|
|
|
Static tipping load
|
Kg
|
1800
|
|
|
|
Breakout force
|
kN
|
20
|
|
|
Overall dimensions
|
Cab roof height
|
mm
|
1950
|
|
|
|
Length with bucket
|
mm
|
3320
|
|
|
|
Dumping angle
|
°
|
40
|
|
|
|
Maximum dumping height
|
mm
|
2375
|
|
|
|
Dumping range
|
mm
|
575
|
|
|
|
Wheelbase
|
mm
|
1027
|
|
|
|
Departure angle
|
°
|
25
|
|
|
|
Ground clearance
|
mm
|
185
|
|
|
|
Wheel tread
|
mm
|
1380
|
|
|
|
Bucket edge width
|
mm
|
1800
|
|
|
|
Bucket capacity (High heap)
|
m3
|
0.45
|
|
