- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YONGNUO
-
Model Number:
-
YNT-03
-
Torque:
-
1200
-
Speed (RPM):
-
custom made
-
Material:
-
Aluminum
-
Port:
-
Ningbo/Shanghai
-
Warranty:
-
1 Year
-
Color:
-
Silver
Quick Details
-
Speed(RPM):
-
4000
-
Continuous Current(A):
-
3A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YONGNUO
-
Model Number:
-
YNT-03
-
Torque:
-
1200
-
Speed (RPM):
-
custom made
-
Material:
-
Aluminum
-
Port:
-
Ningbo/Shanghai
-
Warranty:
-
1 Year
-
Color:
-
Silver
Product Description

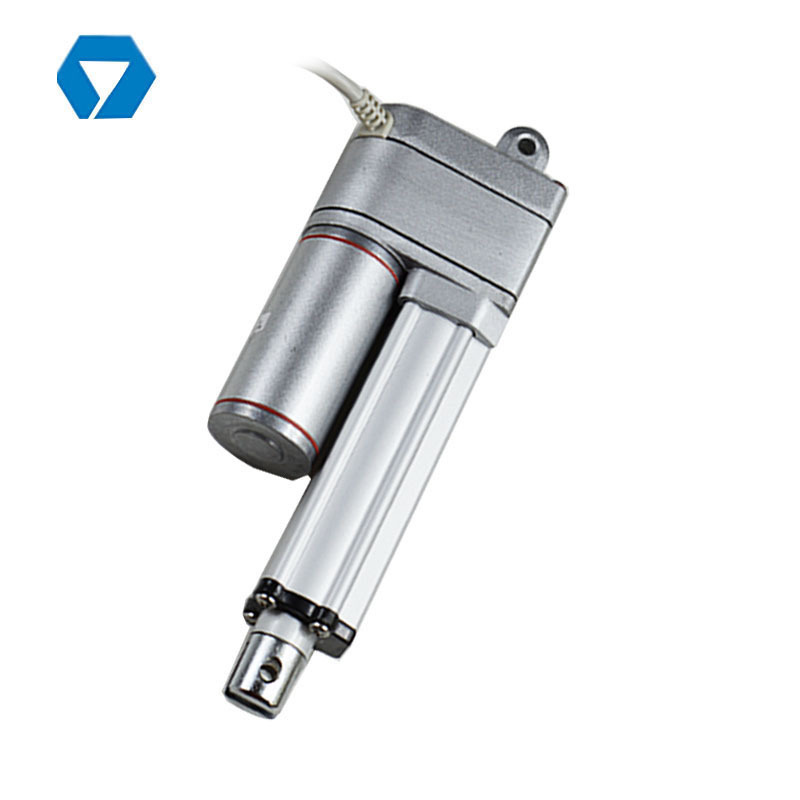

YNT-03-pot linear actuator，Can feedback position signal，10KΩ， brush DC motor, short installation distance, compact result, IP65 ，waterproof and dustproof, widely used in industrial and agricultural machinery, vehicles, doors and windows, etc.
|
Model
|
YNT-03-POT
|
Power
|
30W
|
|
Brand
|
YONGNUO
|
Colour
|
Silver/Black
|
|
IP Grade
|
IP65
|
Stroke
|
Customized Stroke Available
|
|
Duty cycle
|
20%
|
Minimum installation distance
|
stroke+135mm
|
|
Noise level
|
<=70dB
|
Limit switch
|
Built-In
|
|
Feedback signal options
|
Potentiometer
|
Operation temperature
|
-30℃~+65℃
|
|
Dynamic Load Force(N)
|
1200
|
750
|
400
|
300
|
200
|
100
|
50
|
||||||
|
No load speed (Mm/s)
|
5
|
10
|
20
|
25
|
40
|
50
|
60
|
||||||
|
Full load speed (Mm/s)
|
4
|
8
|
16
|
20
|
32
|
40
|
48
|
||||||
|
Voltage(VDC)
|
12V/24V/36V/48V DC
|
|
|
|
|
|
|
||||||
Detailed Images
Front Hole options
Rear base options
DC drive motor,Aluminum alloy inner and outer tube（Can be customized stainless steel inner tube） Aluminum alloy Reducer gearbox,Wear-resistant metal gear wheel,T-type screw +Plastic nuts Compact telescopic rod seal,High waterproof to IP65,surface sandblasting treatment，And Oxidation treatment，smooth，easy to clean
Related Products
Certificate
Packing&Shipping
Company Introduction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How much does shipping cost and what shipping methods do you support?
A: Shipping cost is calculated based on the weight of the order and the distance it is travelling;
Transport of large trucks to the seaport and international transport cooperation
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide customized Functions ?
A: Yes, we can design and program as your requirements.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
