Portable remote control fire monitor water cannons

Portable remote control fire monitor water cannons

FOB Reference Price: Get Latest Price

≥10 Sets

US $7755

≥100 Sets

US $7108

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Description:: fire cannon/monitor

type:: portable with feet

Jetting Pressure:: 0.9 MPa

Flowing Rate:: 80L/s

Cannon-Shot distance:: 80M

Max Spray Angle:: 95 degree

Type:: Upright

Material:: Stainless Steel

Product name:: Mobile fire cannon

Application:: Fire Fighting Emergency Rescue

Quick Details

Place of Origin:: Jiangxi, China

Brand Name:: JJXF

Model Number:: PSKDY80ZB

Description:: fire cannon/monitor

type:: portable with feet

Jetting Pressure:: 0.9 MPa

Flowing Rate:: 80L/s

Cannon-Shot distance:: 80M

Max Spray Angle:: 95 degree

Type:: Upright

Material:: Stainless Steel

Product name:: Mobile fire cannon

Application:: Fire Fighting Emergency Rescue

Product Description

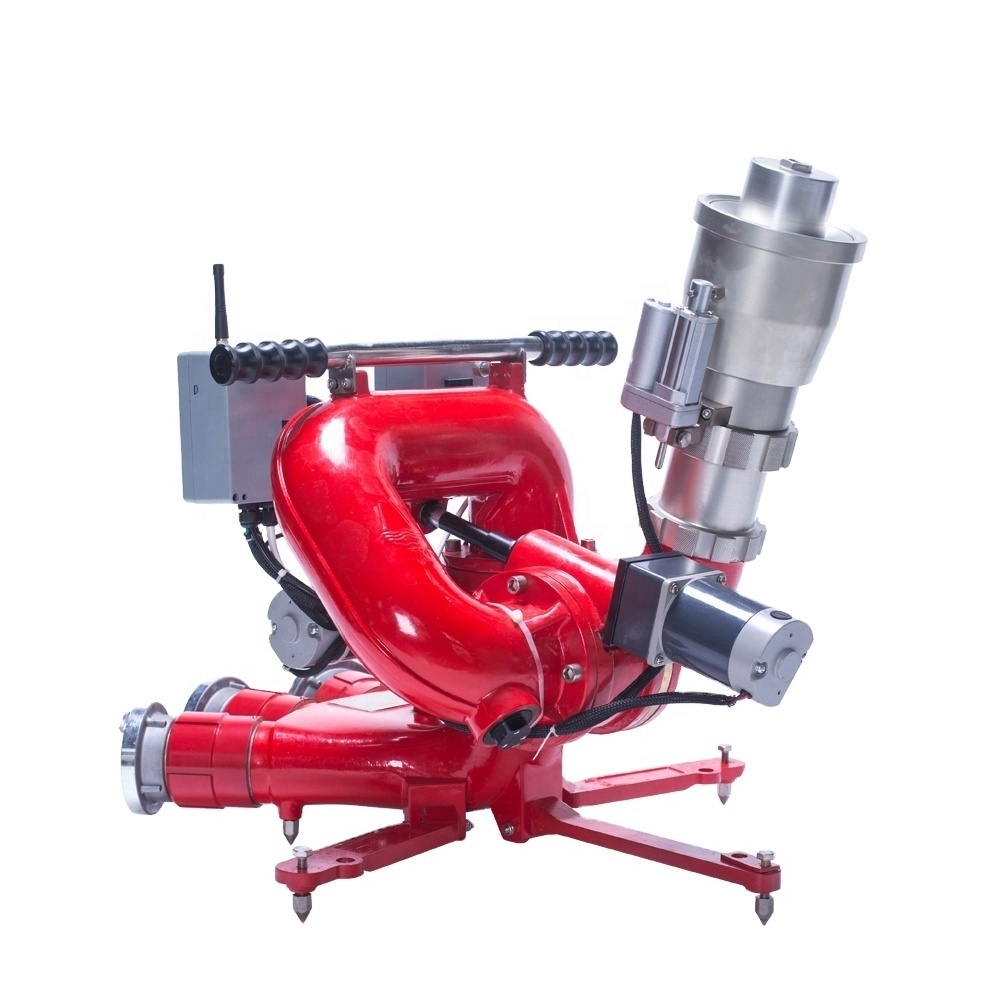

Portable fire monitor, remote control fire water cannons

Comply with GB19156-2003<Remote firefighting monitor general system technical conditions>standard.

Advantages of the fire monitor: small size, light weight, foldable supporting angle, easy operation, convenient transportation & storage. Used in oil field, oil depot, airport, large building, petrochemical tank; old building that fire tank is difficult to enter into, ground market or other toxic flammable and explosive high-risk places.

It is essential fire safety equipment.

Detailed Images

Test Items	Standard	Test results
Appearance	Casting surface should be smooth, no cracks, porosity, shrinkage, trachoma and other effects of intensity and performance defect. Welds shall be smooth, no welding, burn, scar tumour and other damage strength and appearance quality defects. Fire monitor the outer surface of the paint layer shall be smooth, uniform, no bubbles, obvious scar, crack, affecting the appearance quality defects.	Qualified
manoeuvrability	Fire fighting monitor pitching rotation mechanism, horizontal swing mechanism, the control handle ( wheel ) should be flexible operation, safe and reliable transmission mechanism. Fire fighting gun pitching rotation mechanism with self-locking function or a locking device. Portable fire fighting monitor in the whole level rotation angle range minimum elevation angle injection should be stable and reliable, with no sliding and overturning phenomenon.	Qualified
decayresistance	Fire fighting monitor should be adopt corrosion-resistant materials or the materials by the anti-corrosion treatment, so to meet the corresponding use of the environment and medium anti-corrosion.	Qualified
jet pressure (MPa)	≤1.0	0.90
flow rate (L/s)	80×(1±8%)	80
Cannon-Shot distance	≥70	80
wireless remote control distance (m)	≥150	150
Minimum angle of elevation range(°)	+30~+70	+30~+70
Level rotation angle(°)	≥90	90
The maximum spray angle(°)	≥90	95
Hydraulic sealing performance	Fire fighting monitor pressure element (except foam gun barrel ) according to the provisions of the water seal test 7.4, each connecting position should be no leakage phenomenon.	Qualified
Hydrostatic strength	Fire fighting monitor pressure element ( except the foam gun barrel) according to the provisions of the water pressure test for strength7.5, the gun body with no sweat, crack and permanent deformation and other defects. Seal test, each connecting position should be no leakage phenomenon.	Qualified
