Quick Details
-
Panel Dimensions:
-
1909*765*3mm
-
Panel Efficiency:
-
21%, 21%
-
Product name:
-
flexible solar panel
-
Model Number:
-
HET- F300M
-
Solar cell:
-
mono 166*166mm
-
Surface material:
-
ETFE
-
Working voltage [Vmp]:
-
21V
-
Working current [Imp]:
-
11.9A
-
Short circuit current [Isc]:
-
12.4A
-
Warranty:
-
10YEARS
-
Application:
-
RV, boat, cabin, tent, yachts, car, trucks, trailers, etc
Quick Details
-
Cell size:
-
166mmx166mm
-
Brand Name:
-
Hetechpower
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1909*765*3mm
-
Panel Efficiency:
-
21%, 21%
-
Product name:
-
flexible solar panel
-
Model Number:
-
HET- F300M
-
Solar cell:
-
mono 166*166mm
-
Surface material:
-
ETFE
-
Working voltage [Vmp]:
-
21V
-
Working current [Imp]:
-
11.9A
-
Short circuit current [Isc]:
-
12.4A
-
Warranty:
-
10YEARS
-
Application:
-
RV, boat, cabin, tent, yachts, car, trucks, trailers, etc

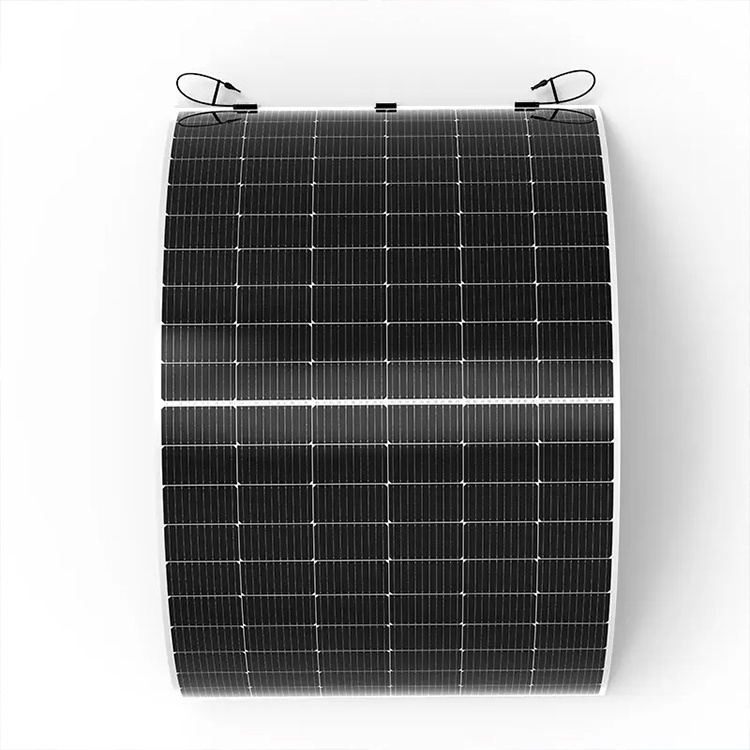

Factory Price Photovoltaic Flexible Panel Solar 300W Etfe Thin Film Flexible Solar Panel 100W 200W 250W 300W Solar Panel 400W
Product features
Application
Product Parameter
|
Maximum Power(Pmax/W)
|
250
|
300
|
360W
|
420W
|
450W
|
500W
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
18.85
|
27.68
|
33.30
|
31.80
|
33.91
|
38.35
|
|||||
|
Maximum Power Current(Lmp/A)
|
13.27
|
10.84
|
10.83
|
13.21
|
13.28
|
13.04
|
|||||
|
Open Circuit Voltage(Voc/V)
|
21.83
|
33.13
|
40
|
37.58
|
40.02
|
45.26
|
|||||
|
Short Circuit Current(Lsc/A)
|
13.97
|
11.33
|
11.57
|
14.10
|
13.88
|
13.63
|
|||||
|
Dimensions(mm)
|
1535*765*3mm
|
1909*765*3mm
|
1755*1038*3mm
|
1722*1134*3mm
|
1903*1134*3mm
|
2094*1134*3mm
|
|||||
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃ AM1.5G
|
|
|
|
|
|
|||||
