Out diameter 3.9mm 720P endocspe camera module is used for CMOS OV9734 1/9″ sensor. Separately from the PCBA : PCB decoder + Camera moudule. Depth of Field can be
10-100mm ). Application for Industrial endoscopic, for Medical endoscope. Like: Endoscopy of digestive tract; Hysteroscopy; Anorectal endoscopy; Urinary endoscopy; Disposable endoscopy and so on. If you want to get diameter 3.5mm 720P endocspe camera module. kindly contact us whether there is raw material inventory.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
ENT, laryngoscope,veterinary, vetinary
-
Series:
-
3.0mm 3.3mm3.5mm
-
Features:
-
1280*720p@30FPS, support mipi interface
-
Mounting Type:
-
Usb interface plug in computer
-
Description:
-
3.9mm 1MP 720P endoscope camera module
-
Keywords:
-
3.9mm endoscope camera module
-
Sensor:
-
1/9"CMOS
-
Out Diameter:
-
3.9mm With Stainless Steel Sleeve
-
Resolution:
-
1280X720P@30FPS
-
FOV(Diagonal):
-
100°
-
Depth of field:
-
10-100mm
-
LED:
-
4PCS
-
Cable length:
-
500-3000MM
-
Separately from the PCBA:
-
Camera Module + PCB
-
Supporting image processing board:
-
USB
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
cbritech
-
Model Number:
-
CBT-720P-E3.9
-
Application:
-
ENT, laryngoscope,veterinary, vetinary
-
Series:
-
3.0mm 3.3mm3.5mm
-
Features:
-
1280*720p@30FPS, support mipi interface
-
Mounting Type:
-
Usb interface plug in computer
-
Description:
-
3.9mm 1MP 720P endoscope camera module
-
Keywords:
-
3.9mm endoscope camera module
-
Sensor:
-
1/9"CMOS
-
Out Diameter:
-
3.9mm With Stainless Steel Sleeve
-
Resolution:
-
1280X720P@30FPS
-
FOV(Diagonal):
-
100°
-
Depth of field:
-
10-100mm
-
LED:
-
4PCS
-
Cable length:
-
500-3000MM
-
Separately from the PCBA:
-
Camera Module + PCB
-
Supporting image processing board:
-
USB
Product Description
|
Product Name
|
3.9mm 720P Endoscope Camera Module
|
|
Sensor
|
1/9”CMOS Sensor
|
|
Resolution
|
1280*720P@30FPS
|
|
FOV（Diagonal）
|
120° (100°)
|
|
Depth of field
|
10-100mm
|
|
LED
|
4PCS
|
|
Cable Length
|
500-3000MM （Only AV output can be 5 meters）
|
|
Waterproof Level
|
IP67
|
|
Separately from the PCBA
|
Camera Module + PCB
|
|
Supporting image processing board
|
USB, AV,AHD
|
|
WIFI
|
Support
|
-
Product performance description
-
Feature:
* 3.9mm out diameter
* OV9734 sensor endoscope
* IP67 waterproof
* suggested DOF is 15-80MM/10-80mm/5-50mm/3-100MM
* Support FOVD 100° , 120°, 140°
* Designed for medical
* High quality image
* UVC compliant, Plug & Play
* Support USB2.0 OTG
* This is seperately endoscope camera module , it can support 3.0mm/3.3mm/3.5mm
* OV9734 sensor endoscope
* IP67 waterproof
* suggested DOF is 15-80MM/10-80mm/5-50mm/3-100MM
* Support FOVD 100° , 120°, 140°
* Designed for medical
* High quality image
* UVC compliant, Plug & Play
* Support USB2.0 OTG
* This is seperately endoscope camera module , it can support 3.0mm/3.3mm/3.5mm
We can offer different types endoscope camera module, show as below:
We can accept OEM Sub assembly flexible endoscope, like Uroscope, Gynecology, Bronchoscopy ,Cranial Endoscopy and so on
Sub assembly flexible endoscope
Video endotracheal intubation
Product Images
Details Images
Diameter 3.9mm endoscope camera module is used for OV9734
CMOS
image sensor , the reslution is 1280*720,
frame rate is 30FPS.
FOV is 100 degree, can be option 90 degree. It can be with 4-6PCS led.
The out diameter is 3.9mm w
ith Stainless Steel Sleeve. The waterproof level is IP67.

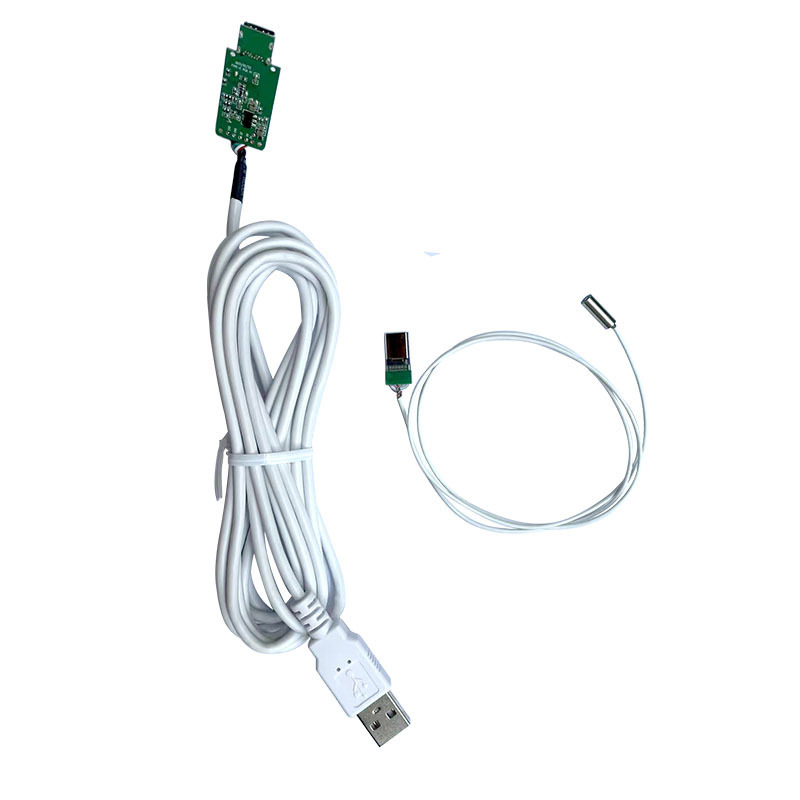

USB Image Processing Board for
3.9mm Endoscope camera module can be support USB output.
Packing&Shipping
100pcs per carton
Company Introduction
Shenzhen Brilliant Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface
cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
Our Services & Strength
R&D Department: 5 people, we can support SDK for USB Camera module
Lable: Different styles lable for your choice
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
