Quick Details
-
Types:
-
variable or fixed
-
color:
-
gary
-
Application:
-
generator testing
-
Package:
-
wooden case
-
Certificates:
-
ISO
-
Material:
-
Enclosure
Quick Details
-
Place of Origin:
-
shenzhen of China
-
Brand Name:
-
ZENITHSUN
-
Cooled Way:
-
By fans or water
-
Types:
-
variable or fixed
-
color:
-
gary
-
Application:
-
generator testing
-
Package:
-
wooden case
-
Certificates:
-
ISO
-
Material:
-
Enclosure

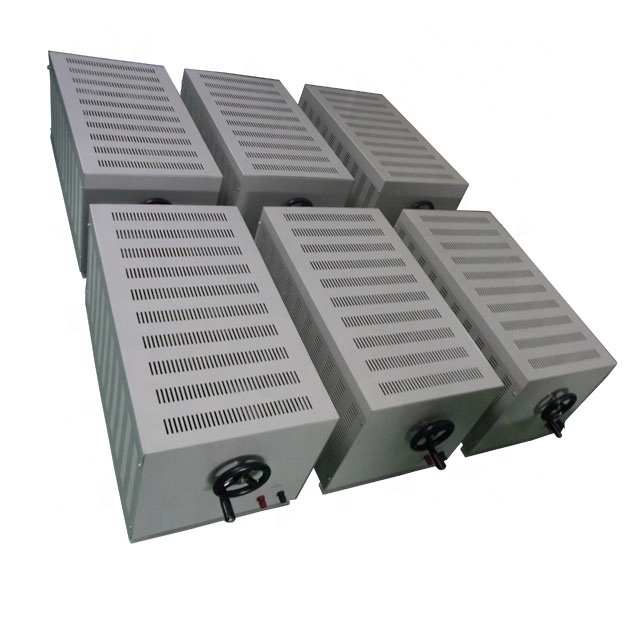

AC Adjustable Resistive Dummy Load Bank 50KW 415V
General:
Ⅰ . Reference standard
A . Internal Resistors/ Heaters
1 . GB5732-1982 Fixed Resistor for Electronic Equipment, chapter 4, Power Resistor
2 . GB5729-1985 General
3 . GB/T5729-2003 General
4 . GB/T5734-1985 Sectional
5 . JB/T 6319-2010 Mechanical Industry Standard The basic technical requirements
B . Electrical Components (Control part)
1 . GB/T5169.11-2006 Fire danger test electrical and electronic products
2 . GB 14048.1-2006 Low voltage switch gear and control equipment
Ⅱ . Main Feature
1. Power:1KW-10MW
2. PF:0.8-1.0
3. Fans cooling or water cooled
4. Inductive / R esistive or non-inductive
5. Manual/PLC remote control
6. Load steps(by switches) / infinite adjust
7. C urrent:0.1A-10000A
8. W orking voltage:DC/AC 1V-1000V
9. Value:0.01Ω-100KΩ
10. Ambient:-40 ℃ ~55 ℃
11. IP class:IP20-IP67
12. E lements:High Power Ceramic Tube Resistors , Stainless Steel Resistor , Heater Resistors or Aluminum Housed Resistors .
ZENITHSUN Advantages:
The same specification or requirement for power is higher than counterparts above 1.2 times, more sufficient power, which ensure long time loading.
Selecting high quality high stable material, and wire diameter is thicker than the counterparts above 1.2 times, which make resistors are not easy to burn out and open circuit, performance is more stable, more endurance.
Small size, light weight which let the load bank easily transport and installation.
Strong professional engineer design team, and the chief engineer personally participated in discussions for each type of design, meet the customers’ requirements omni-directionally.
Comprehensive test systems is to ensure to compliance with customer requirements.
1020 international famous and large customers load bans successful cases, getting the consistent high praise and the continuous purchasing cooperation.
Long warranty:2-15 years.
Customized Load Bank is available, welcome to customize .
