- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJQ5125
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1140*490*275mm
-
Power (kW):
-
0.9
-
Weight (KG):
-
75 KG
-
Marketing Type:
-
New Product 2023
-
Max Drilling Diameter:
-
20mm
-
Motor Power:
-
750/900W
-
Chuck Capacity:
-
5-20mm
-
Spindle Travel:
-
85mm
-
Class Of Speed:
-
12
-
Speed50/60Hz:
-
280-2380/340-2860rpm
-
Swing:
-
352mm
-
Table Size:
-
290*290mm
-
Weight:
-
75kg
-
Power:
-
900
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
20
-
Range of Spindle Speed(r.p.m):
-
280 - 2380 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJQ5125
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1140*490*275mm
-
Power (kW):
-
0.9
-
Weight (KG):
-
75 KG
-
Marketing Type:
-
New Product 2023
-
Max Drilling Diameter:
-
20mm
-
Motor Power:
-
750/900W
-
Chuck Capacity:
-
5-20mm
-
Spindle Travel:
-
85mm
-
Class Of Speed:
-
12
-
Speed50/60Hz:
-
280-2380/340-2860rpm
-
Swing:
-
352mm
-
Table Size:
-
290*290mm
-
Weight:
-
75kg
-
Power:
-
900
Product Description

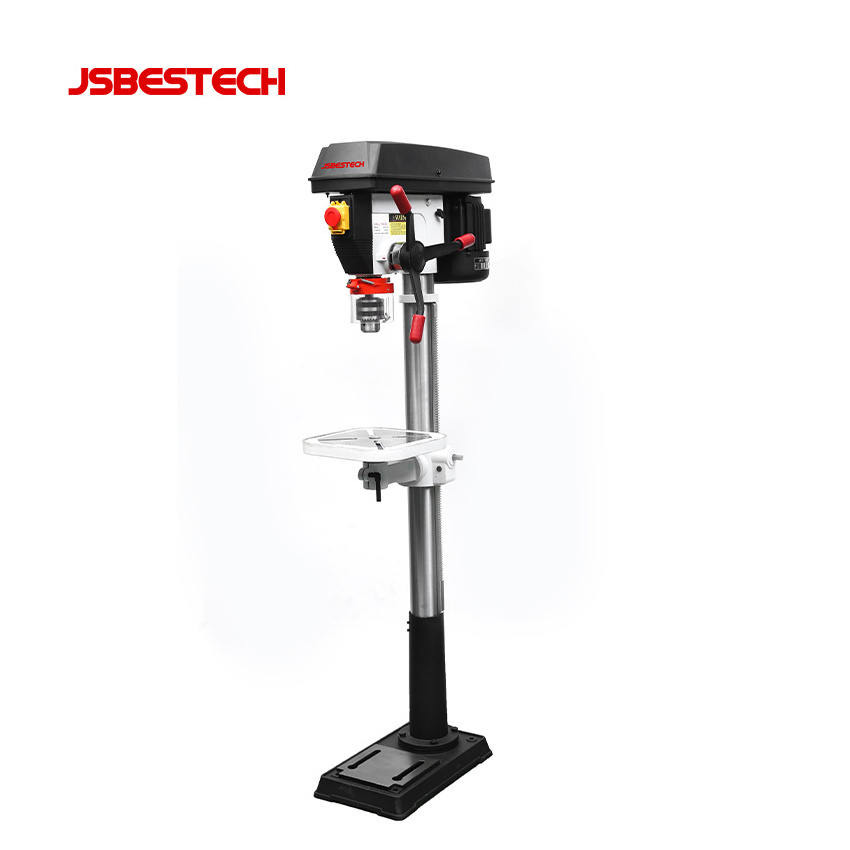

14-inch(25mm) Floor Drill Press
MODEL:ZJQ5125
3/4’’(20mm) Max.Chuck Capac
ity
14’’(352mm) Swing
12 Spindle Speeds
-45°~0°~+45° Table Tilt L&R
Optional Chuck Guard And Micro-switch
For CE Requirement
|
Model
|
ZJQ5125
|
|
Max Drilling Diameter
|
Φ25mm(1'')
|
|
Motor Power
|
750/900w
|
|
Chuck Capacity
|
5-12mm
|
|
Spindle Travel
|
85mm
|
|
Class Of Speed
|
12
|
|
Speed50/60Hz
|
280~2380/340~2860rpm
|
|
Spindle Taper
|
MT3
|
|
Max distance from spindle axis to surface of column
|
176mm
|
|
Max distance from spindle end to surface of table
|
685mm
|
|
Max distance from spindle end to surface of base
|
1175mm
|
|
Swing
|
352mm
|
|
Table Size
|
290mm
|
|
Base Size
|
460×270mm
|
|
Column Diameter
|
Φ80mm
|
|
Height
|
1600mm
|
|
Net Weight/ Gross Weight
|
71/75kg
|
|
Packing Size
|
1140×490×275mm
|
|
STANDARD ACCESSORIES
|
OPTIONAL ACCESSORIES
|
|
Gear rim drill chuck(5-20mm)B16
|
Keyless drill chuck
|
|
Morse taper MT3
|
Machine vice
|
|
Front switch
|
Micro switch
|
|
Wrench set
|
Laser
|
|
Drill Chuck
|
Machine lamp
|
|
Drill chuck guard
|
|
Product packaging
Similar products
Company Profie
BESTECH Industrial Co., Ltd. is one of the professional enterprises in China in the field of machinery and tools. The main
products include Bench Lathes(manual &CNC),Drill Press, Bench Grinder, Drilling and Milling Machine, Table Saw, Band Saw,etc. Most
of the items have been approved by CE,GS& ROHS certificates.
Covering an area of 4000 square meters, our factory now has over 100 employees, including 15 QC engineers and technicians. We are in Jiangsu Province,very near from Shanghai.We may arrange your visit to our factory at your wish onced informed.We are looking forward to friends and new clients.
Certifications
Customer Photos
FAQ
1.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
2.Q:How to choose suitable machine model?
A:You can check the normal technical data in alibaba web.If you have some special OEM requirement,please send your details to our sales and have a discussion.
3.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
4.Q: What is your payment terms?
A:Our payment term is L/C at sight,TT-30%deposit,70%balance aganist B/L copy.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
6.Q: What is your delivery time?
A:Normally we need 30-35 days to prepare standard machine.If we have in stock, we can arrange shipment as soon as we receive the payment.
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
2.Q:How to choose suitable machine model?
A:You can check the normal technical data in alibaba web.If you have some special OEM requirement,please send your details to our sales and have a discussion.
3.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
4.Q: What is your payment terms?
A:Our payment term is L/C at sight,TT-30%deposit,70%balance aganist B/L copy.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
6.Q: What is your delivery time?
A:Normally we need 30-35 days to prepare standard machine.If we have in stock, we can arrange shipment as soon as we receive the payment.
