Quick Details
-
Brand Name:
-
gaoyou
-
Model Number:
-
85
-
Product name:
-
movable interior partitions
-
Thickness:
-
65mm
-
Feature:
-
Soundproof, fireproof, stack easily,rotate 360 degrees
-
Place of using:
-
Restaurant
-
Style:
-
modern or classical
-
Color:
-
Customized
-
finish:
-
soft fabric
-
Function:
-
soundproof
Quick Details
-
Application:
-
Hotel, Office Building, Hospital, School, Mall, Hall, Gym
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gaoyou
-
Model Number:
-
85
-
Product name:
-
movable interior partitions
-
Thickness:
-
65mm
-
Feature:
-
Soundproof, fireproof, stack easily,rotate 360 degrees
-
Place of using:
-
Restaurant
-
Style:
-
modern or classical
-
Color:
-
Customized
-
finish:
-
soft fabric
-
Function:
-
soundproof
|
Description of the whole system |
|
|
Item |
Soundproof Movable partition |
|
Partition Height |
2-17 meters |
|
Sound Transmission Class(STC) |
32-53db |
|
Description of partition accessories |
|
|
Roller |
Imported dupont POM material roller,bearing capacity 225-1300kg |
|
Track System |
Clear anodized 6063-T6 aluminum double track |
|
Surface finish option |
MDF,melamine,HPL,fabric,PU,wood veer |
|
Junction |
"T"junction, "L" juntion, cross/ "X" juntion |
|
Glass wool density inside |
64kg/m3 |
|
Interior profile |
W ooden, aluminum, steel |
|
Application |
Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium |
--------------------------------------------------------------------------------------------------------------------
GaoYou Soundproof Movable partition Features:
1- 65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.
2-Top supported without floor track or guide, only have track on the ceiling.
3- clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4- Sound insulation certificate :STC 32db to 52db, ASTM standard of acoustic tested in HongKong.
5- Available in wide range of finishes, melamine ,fabric/PU leat h er, HPL, printing etc.
6- Fast delivery and Rich experiences in oversea project installation guide & supervision.

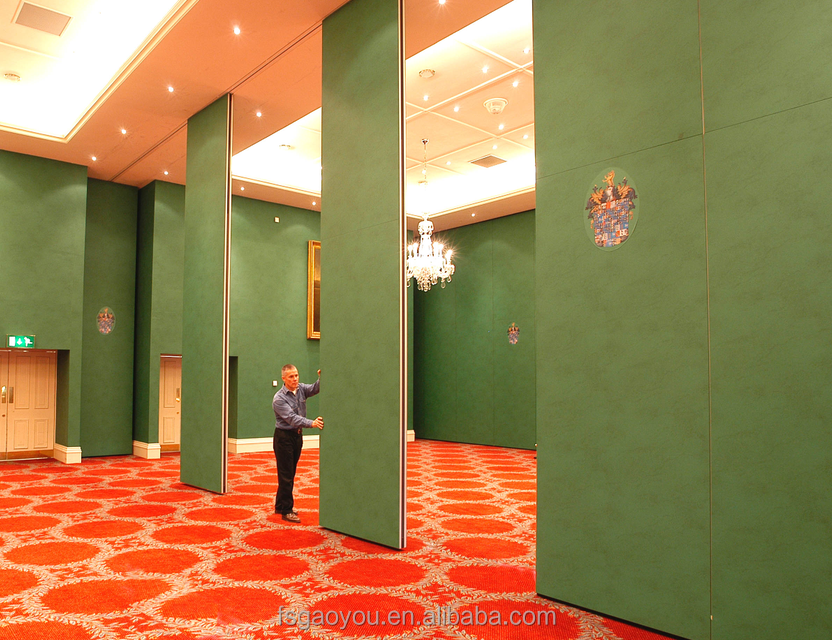

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.
Its high performance per dollar value and the easiest in-field operation makes it very suitable for Hotel, banquet hall, conference room ,ballroom, muti-function hall, restaurant,classroom,office,religion,dance studio ,shopping arcades and many other place where seek for space divide with good soundproof performance .
There are wide of range face finishes are available : melamine faced MDF or
Plywood, fabric, carpet, fabric, artificial, leather,wood veneer, high pressure laminate,Formica ,acoustic panel,white boad ect ., Panels can also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
GaoYou partition works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.
Movable Partition internal structure diagram:
Accessories for operable partitions:
Movable partition parking layout:
How to make the movable partition order?
