Quick Details
-
Brand Name:
-
CSC
-
Dimension(L*W*H):
-
9182*2728*3318
-
Capacity:
-
50,000liters 50cbm 25T
-
Weight:
-
10tons 20tons 25tons
-
Inner Material:
-
Q345R
-
Outer Material:
-
Q345R
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
GB150, ASME
-
Working Temperature(℃):
-
-40 - 55 ℃
-
Name:
-

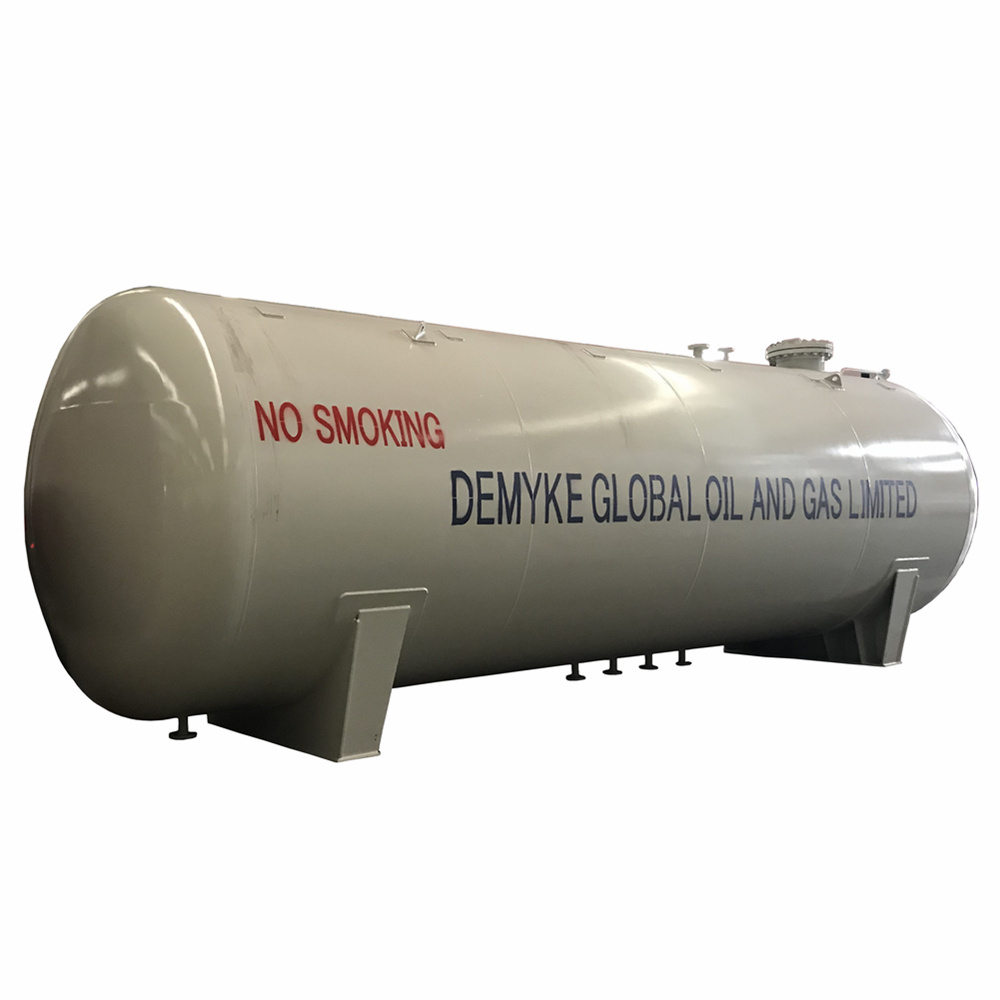

Propane lpg gas storage tank 25tons 50000 l lpg storage tank price
-
loading capacity:
-
25tons 30tons 35tons 40tons 45tons 50tons 55tons 60tons
-
Level Gauge:
-
Rotor Gauge, Magnetic Level Gauge, Rochester Gauge
-
Fiiling Cylinder Device:
-
LPG Filling Scale or LPG Dispenser
-
test pressure:
-
1.77Mpa
-
filling density:
-
550-570kg/m3
-
Safety Accessories:
-
Ball Valve, Level Gauge, Manhole, Thermometer, pressure gauge
-
Certification:
-
ISO9001 ASME SONCAP PC
-
Filling medium:
-
Liquid Petroleum Gas (propane)
-
Application:
-
Lpg Cylinder Refilling, small cars filling
Quick Details
-
Volume (m³):
-
50CBM, 25TONS
-
Max Working Pressure(MPa):
-
2.22 MPa
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CSC
-
Dimension(L*W*H):
-
9182*2728*3318
-
Capacity:
-
50,000liters 50cbm 25T
-
Weight:
-
10tons 20tons 25tons
-
Inner Material:
-
Q345R
-
Outer Material:
-
Q345R
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
GB150, ASME
-
Working Temperature(℃):
-
-40 - 55 ℃
-
Name:
-
Propane lpg gas storage tank 25tons 50000 l lpg storage tank price
-
loading capacity:
-
25tons 30tons 35tons 40tons 45tons 50tons 55tons 60tons
-
Level Gauge:
-
Rotor Gauge, Magnetic Level Gauge, Rochester Gauge
-
Fiiling Cylinder Device:
-
LPG Filling Scale or LPG Dispenser
-
test pressure:
-
1.77Mpa
-
filling density:
-
550-570kg/m3
-
Safety Accessories:
-
Ball Valve, Level Gauge, Manhole, Thermometer, pressure gauge
-
Certification:
-
ISO9001 ASME SONCAP PC
-
Filling medium:
-
Liquid Petroleum Gas (propane)
-
Application:
-
Lpg Cylinder Refilling, small cars filling
Factory selling 50CBM 50000L 50M3 25TONS LPG storage tank 50 CBM 50000 liters 50 M3 25 tons LPG storage tanker , Hot selling ASME 50CBM 50000Liters pressure vessel 25TONS 25 ton 50000 liters 50M3 LPG storage tanker for Nigeria
1)lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l. OR
2.5tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons, 55tons, 60tons.
2) lpg storage tank material
Q345R Q370R Q420R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for LPG gas tank 20tons
|
Item No. |
Parameters |
|
Volume of Tank (cbm) |
80 |
|
Tare Weight (kg) |
17000kg |
|
Filling Capacity (kg) |
40000 kg |
|
Thickness of Shell (mm) |
16 |
|
Thickness of Endplate (mm) |
18 |
|
tank cylinder diameter (mm) |
3100 |
|
External Dimensions (mm) (length×width×height) |
11166*3132*3722 |
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
|
Filling Medium |
Liquefied Petroleum Gas |
|
Design Pressure |
1.77MPa ( 256.65 Psi) |
|
Corrosion Allowance |
1 mm |
|
Medium Density |
550 kg/ cbm |
Safety Accessories for LPG storage tank 40,000liters
|
Accessories List |
|||||
|
Parts No |
Size |
Parts Name |
Model No. |
Quantity |
Unit |
|
a |
DN50 |
Cut-off Valve for Drain Outlet |
J41N-2.5-50 |
1 |
set |
|
b |
DN80 |
Cut-off Valve for Liquid Phase Outlet |
J41N-2.5-80 |
1 |
set |
|
C1-C2 |
DN50 |
Cut-off Valve for Gas Phase Balance Outlet |
J41N-2.5-50 |
2 |
set |
|
d |
DN80 |
Cut-off Valve for Liquid Inlet |
J41N-2.5-80 |
1 |
set |
|
e |
M33*2 |
Thermometer |
WTQ-280 |
1 |
set |
|
f |
|
Rochester Level gauge |
Used on tank dia 2751-3250mm |
1 |
set |
|
g |
M20*1.5 |
Pressure Gauge |
Y-100T |
1 |
set |
|
h |
DN80 |
Cut-off Valve for Safety Valve |
J41N-2.5-80 |
1 |
set |
|
i |
DN80 |
Safety Valve |
A42F-25 |
1 |
set |
|
j |
DN50 |
Cut-off Valve for Air Drain Outlet |
J41N-2.5-50 |
1 |
set |
|
k |
M20×1.5 |
Needle Valve |
J24W-320-DN6 |
1 |
set |
|
Total Quantity |
12 |
set |
|||
LPG tank capacity varies from 2.5tons to 20tons
It contains LPG tank, LPG dispenser/ LPG filling scale, LPG pump, Explosion proof control box,Leakage detection,water cooling system, level meter and valves as complete set on the skid, available for filling the LPG vehicles and LPG cooking/camping cylinder.
LPG Bobtail tank capacity varies from 2.5tons to 10tons
Main parts installed on lpg bobtail: blackmer/corken pump, cylinder filling gun, dispenser filling weight scales, mass flow meter or volumetric flow meter, Pressure Gauge, Rochester Level Gauge etc.
LPG tank Semi Trailer tank capacity varies from 20tons to 30tons
