Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAOSEN
-
Model Number:
-
HSLZLD-400
-
Voltage:
-
Customize the power
-
Dimension(L*W*H):
-
9000*1600*1900mm
-
Weight:
-
5000 KG
-
Marketing Type:
-
Other
-
Max Speed:
-
160 section/min
-
Product name:
-
Three Side Seal Bag Making Machine
-
Bag Size Width:
-
80-540mm
-
Max film speed:
-
60m/min
-
Max bag making speed:
-
160 section/min
-
Temperature control:
-
24ways,0~300°C;
-
Compressed air pressure:
-
0.6Mpa
-
Cooling Water:
-
15L/min
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Without or with zipper three side Seal bag
-
Material:
-
Other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAOSEN
-
Model Number:
-
HSLZLD-400
-
Voltage:
-
Customize the power
-
Dimension(L*W*H):
-
9000*1600*1900mm
-
Weight:
-
5000 KG
-
Marketing Type:
-
Other
-
Max Speed:
-
160 section/min
-
Product name:
-
Three Side Seal Bag Making Machine
-
Bag Size Width:
-
80-540mm
-
Max film speed:
-
60m/min
-
Max bag making speed:
-
160 section/min
-
Temperature control:
-
24ways,0~300°C;
-
Compressed air pressure:
-
0.6Mpa
-
Cooling Water:
-
15L/min
Products Description

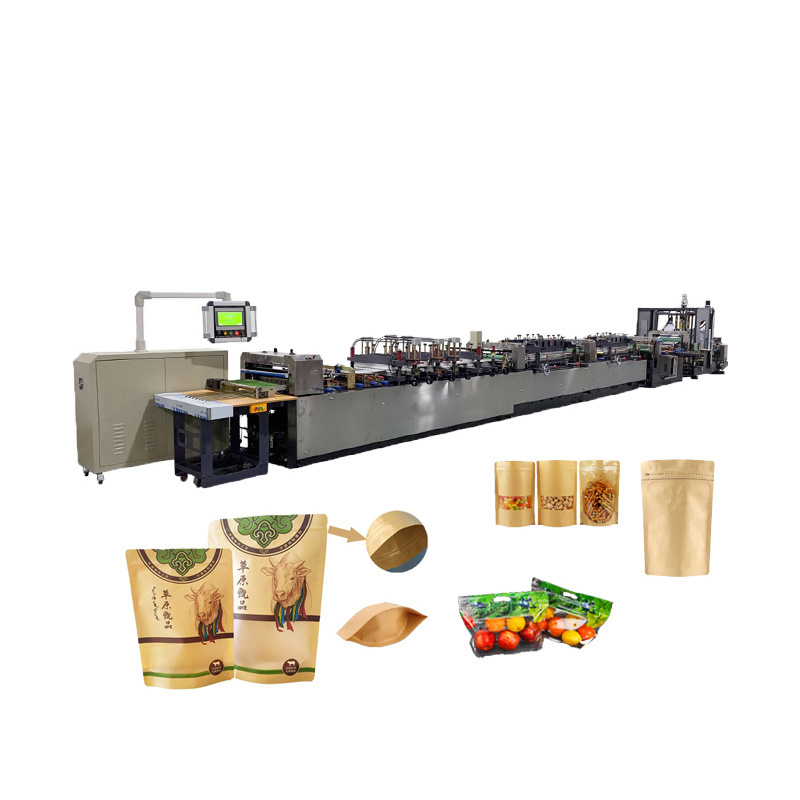

HSLZLD-400
High-speed,three-side-seal,automatic Pouch Making machine.[with stand-up pouch unit]
7 SERVO Stand Up Zipper Pouch Making Machine
Specification
|
Production Speed
|
Max bag making speed :160 section/min Max film speed: 60m/min
|
|
|
||
|
Bag Size
|
Bag width (W):80-540mm
Bag Length(L):240-540mm（Single line 1pc/cycle） Bag Length(L):120-280mm(Double line,2pc/cycle,for bottom inserting type) Depth (G):20-70mm |
|
|
||
|
Raw Material
|
maximum width 1200mm, maximum diameter Ф600mm;film thickness: 0.045mm-0.15mm (single layer)
|
|
|
||
|
Standard configuration of hot sealing & cooling plate
|
Longitudinal heater: (full length 880mm) 2 set
Longitudinal cooling plate: (full length 470mm) 2 set Transverse heater: (full length 640mm, effective 600mm) 3 sets Transverse mold: 1set Transverse cooling plate: (full length 640mm, effective 640mm) 1 set Zipper longitudinal heater(full length 880mm):2set Zipper longitudinal cooling plate (full length 470mm):2set |
|
|
||
|
Temperature contro
|
24 ways,0～300°C
|
Compressed air pressure
|
0.6Mpa
|
||
|
Power
|
Customize the power
|
Cooling Water
|
15L/min
|
||
|
Weight
|
5000kg
|
Overall Dimension
|
9000*1600*1900mm
|
||
|
Other Size
|
HSZLD-500 HSZLD-600 HSLZLD-500 HSLZLD-600
|
|
|
||
Sample Bags
