Quick Details
-
Function:
-
ON-OFF,ON-OFF-ON
-
Material:
-
PA66/PC
-
Color:
-
Red, Yellow, Green, Blue, White
-
Pins:
-
2P\3P\4P\6P
-
Lamp color:
-
Red, Green, Yellow ,Blue
-
Working Temperature:
-
-25℃~+125℃
-
Certificate:
-
CE,CQC,CCC,TUV
-
Application:
-
Electric Equipment
Quick Details
-
Max. Voltage:
-
250v
-
Products name:
-
rocker switch
-
Rating:
-
10A 125VAC; 6A 250VAC
-
Function:
-
ON-OFF,ON-OFF-ON
-
Material:
-
PA66/PC
-
Color:
-
Red, Yellow, Green, Blue, White
-
Pins:
-
2P\3P\4P\6P
-
Lamp color:
-
Red, Green, Yellow ,Blue
-
Working Temperature:
-
-25℃~+125℃
-
Certificate:
-
CE,CQC,CCC,TUV
-
Application:
-
Electric Equipment

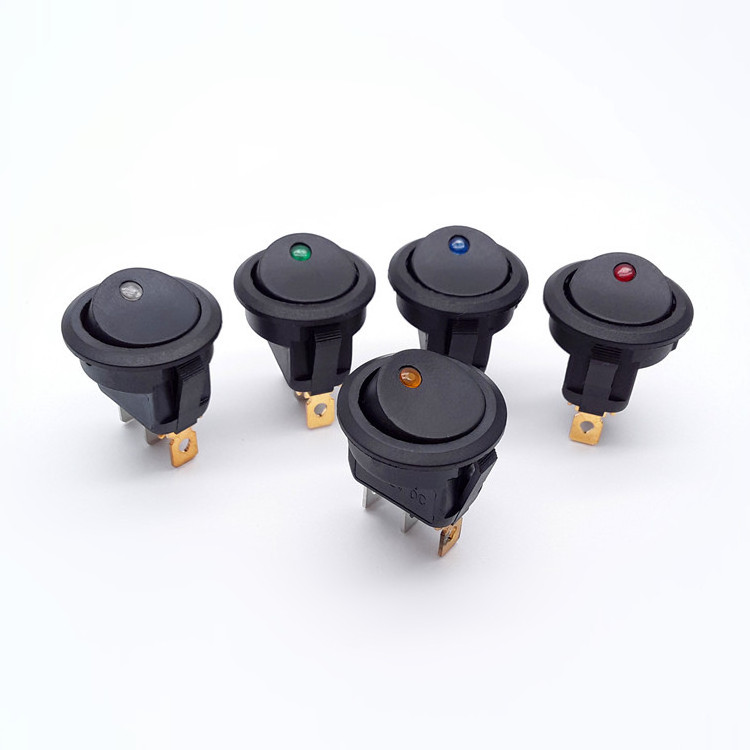

rocker switch t120 round illuminated led light bar rocker switch 12v
Haifei rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switch can be used in a variety of applications, like water dispenser and extension socket and so on
.
| Items | Rocker switch details |
| Housing material | PA66 |
| Button material | PC |
| Contacts material | Copper with compound silver |
| Rating | 3A 6A 10A 15A 250VAC |
| Temperature | -40℃ to 125℃ |
| Dielectric Strength | 1500Vrms min |
| Contact Resistance | <30MΩ |
| Insulation Resistance | >100MΩ |
| Flammability | UL94V0 |
| Eletrical life | 50000 cycles |
| Mechanical life | 50000 cycles |
| Referance standard | EN 61058-1 |
| Approvl marks | CE CQC CCC TUV ROHS ENEC |
