Quick Details
-
Applicable Industries:
-
paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*2100*1900mm
-
Weight:
-
4000 kg
-
Name:
-
die cutting machine
-
Product name:
-
creasing and die cutting machine
-
size:
-
1200*820mm
-
Inside Chase size:
-
47.3"*32.2"
-
Max cutting rule:
-
≤35m
-
Platen size:
-
47.3"*32.2"
-
Impressions per min:
-
20±2
-
package:
-
Wooden case
-
Model:
-
ML1200
-
Function:
-
Creasing
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
20±2 times/min
-
Max. workable width:
-
820mm
-
Applicable Industries:
-
paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*2100*1900mm
-
Weight:
-
4000 kg
-
Name:
-
die cutting machine
-
Product name:
-
creasing and die cutting machine
-
size:
-
1200*820mm
-
Inside Chase size:
-
47.3"*32.2"
-
Max cutting rule:
-
≤35m
-
Platen size:
-
47.3"*32.2"
-
Impressions per min:
-
20±2
-
package:
-
Wooden case
-
Model:
-
ML1200
-
Function:
-
Creasing
Product Appearance
Products Description

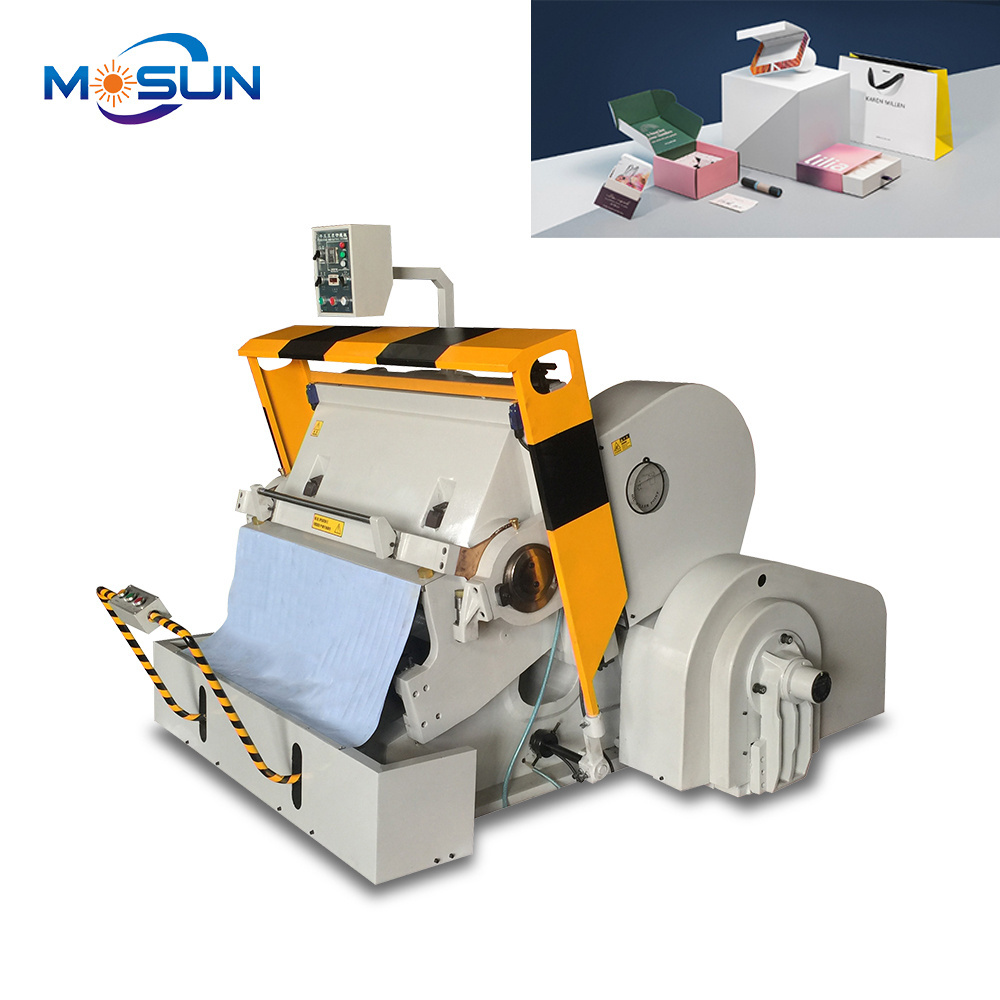

Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on Paper,Linoleum, Cardboard, Corrugated board, Fireboard, Cork, Leather, Plastic and PVC Materials etc. Most Handsome and compact patronized model requires Minimum Floor-Space. Minimum "Make-Ready" Time and provides sufficient hourly production.
ML1200 Best Price Name Card Die Cutting Machine
|
Model
|
Unit
|
ML1200
|
ML1200 CE
|
ML1200 HEATING
|
|||
|
Platen Size
|
mm
|
1200*820
|
|
|
|||
|
Inside Chase Size
|
inch
|
47.2*32.2
|
|
|
|||
|
Platen Size
|
inch
|
47.2*32.2
|
|
|
|||
|
Max Cutting rule
|
m
|
≤35m
|
|
|
|||
|
Impressions Per Min
|
times/min
|
20±2
|
|
|
|||
|
Motor Power
|
kw
|
4
|
|
|
|||
|
Heat Power
|
kw
|
/
|
/
|
15
|
|||
|
Heat Group
|
groups
|
/
|
/
|
3
|
|||
|
Temperature: C(F)
|
℃
|
/
|
/
|
0-170c(338F)
|
|||
|
Heating speed
|
Min
|
/
|
/
|
About 20 min
|
|||
|
N.T
|
kg
|
3900
|
4000
|
4000
|
|||
|
G.T
|
kg
|
4000
|
4100
|
4100
|
|||
|
Dimension
|
mm
|
2050*2220*1750
|
|
|
|||
|
Voltage
|
V
|
220/380/415V 50/60Hz 3Phase
|
|
|
|||
|
Package
|
Wooden case with free fumigation
|
|
|
|
|||
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.
