Quick Details
-
Brand Name:
-
SFLIFT
-
WLL (tonnes):
-
1.5~3tonnes
-
Usage:
-
shaped steel
-
Structure:
-
Screw Cam Clamp
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
4
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SFLIFT
-
WLL (tonnes):
-
1.5~3tonnes
-
Usage:
-
shaped steel
-
Structure:
-
Screw Cam Clamp

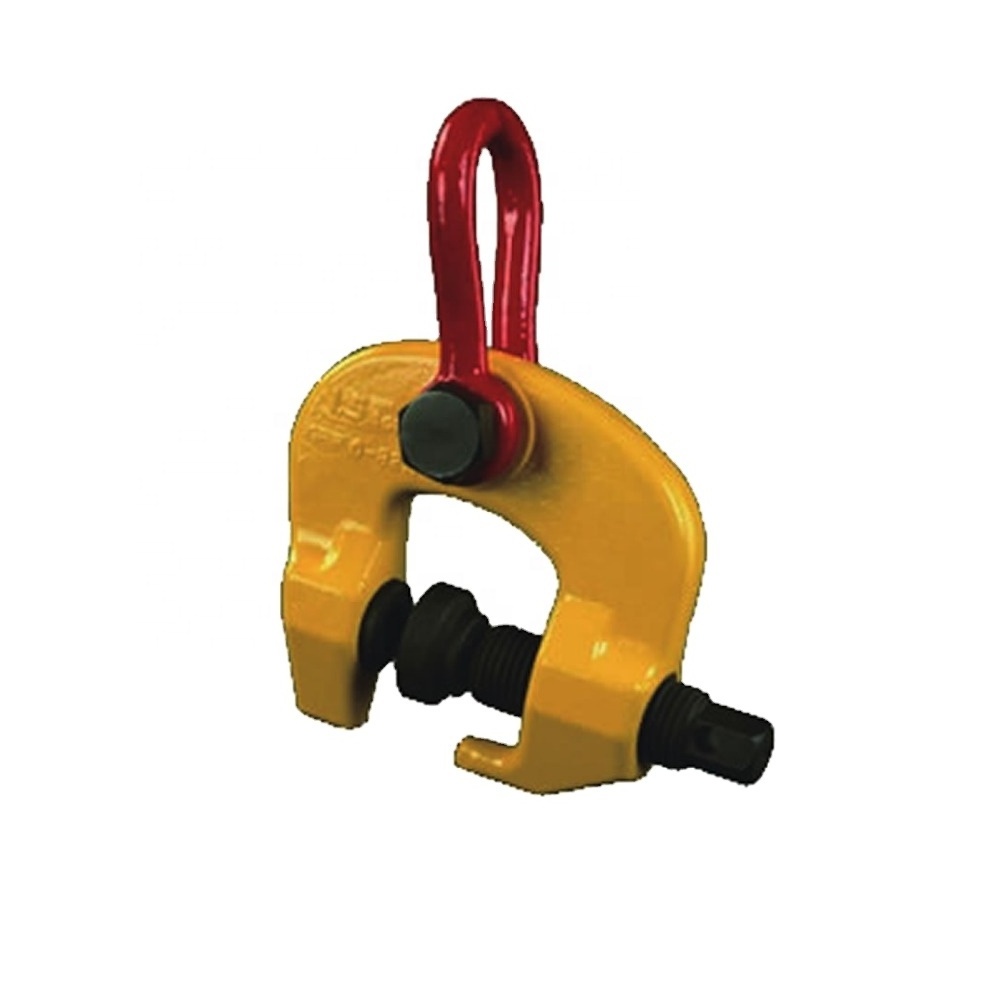

Screw Cam Clamp LRC series
• Suitable for lifting of a large variety of different shaped steel, ranging from steel plates and structured steel
to curved and spherical shaped steels
•
They are designed to be used in conjunction with ratchet lever hoists to align steel structures or fabrications.
•
They are ideally suited for the construction industry.
•
The STC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful
clamping force on the workpiece
•
The articulated lifting eye ensures an effective clamping force in every position.
•
The main body is a baked-on finished.
| Model |
WLL
(tonnes) |
Jaw Opening
(mm) |
Weight
(Kg) |
| LRC1.5 | 1.5 | 0~32 | 4 |
| LRC3 | 3.0 | 0~50 | 6 |
