Quick Details
-
Warranty:
-
1 Years/12 Months
-
Resolution:
-
8K@60Hz
-
color gamut:
-
RGB/YcbCR 4:4:4/YCBCR4:4:4
-
Compliant:
-
HDMI2.1, HDCP2.3 and DVI 1.0.
-
3D Support:
-
1080p@60
-
Signal Speed:
-
48Gbps
-
OperationTemperature:
-
0 ~40°C,32~+104°F
-
Storage Tempareture:
-
-5 ~+70°C,23~+158°F
-
Compatible:
-
DVI to HDMI adapter
-
Power supply:
-
DC 5V
Quick Details
-
Model Number:
-
AXHMSB21
-
Brand Name:
-
Axtron
-
Place of Origin:
-
Henan, China
-
Warranty:
-
1 Years/12 Months
-
Resolution:
-
8K@60Hz
-
color gamut:
-
RGB/YcbCR 4:4:4/YCBCR4:4:4
-
Compliant:
-
HDMI2.1, HDCP2.3 and DVI 1.0.
-
3D Support:
-
1080p@60
-
Signal Speed:
-
48Gbps
-
OperationTemperature:
-
0 ~40°C,32~+104°F
-
Storage Tempareture:
-
-5 ~+70°C,23~+158°F
-
Compatible:
-
DVI to HDMI adapter
-
Power supply:
-
DC 5V

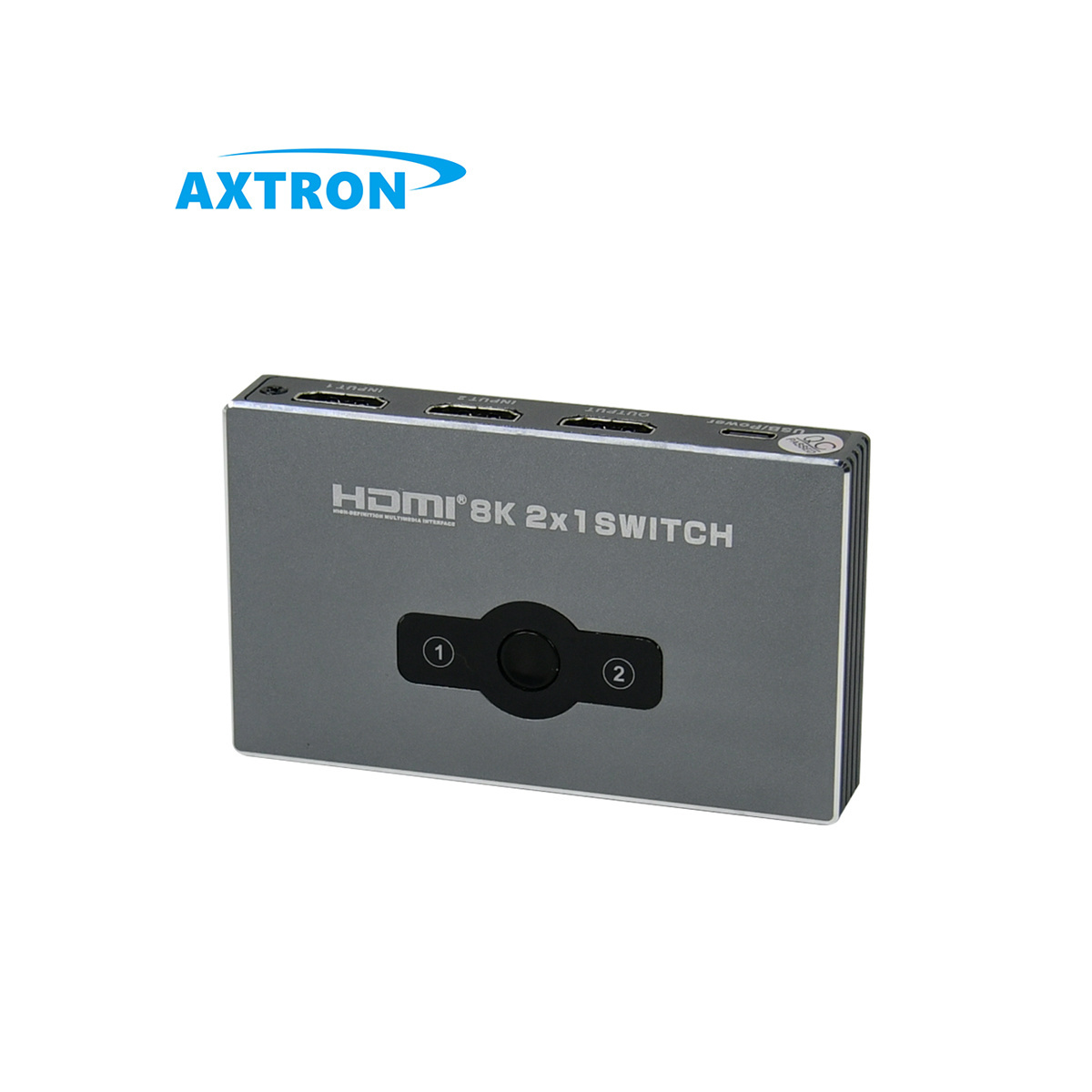

HDMI Switch is a product that can switch multi-group HDMI signals to one high-definition display device such as HDTV by using a manual push button. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.
-
1. To support the simultaneous transmission of two video streams, multiple video signals can be transmitted to the same screen;
2. Switching is done via itself automatically when a signal is present on the ports;
3. Compliant with HDMI2.1, HDCP2.3;
4. Support high resolutions up to 480i/p,576p,720i/p,1080i/p,4K@120Hz,8K@60Hz;
5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;
6. Supports IR and Panel button control;
7. Compatible with DVI by using HDMI TO DVI adapter;
8. Extend the transmission distance and improve the transmission signal;
9. Metal casing design and overall shielding without signal interference;
10.Power supply(Please refer to technical parameter).
HDMI 2x1 switcher-------------------------------------------1PCS
USB Power Cable--------------------------------------------1PCS
Remote control ------------------------------------------------1PCS
User Manual---------------------------------------------------1PCS
Technical parameters
|
Product |
2X1 HDMI SWITCH |
|
HDMI Source Input Port |
2 |
|
Display Device Output Port |
1 |
|
Source Port Connector |
19 PIN HDMI(A TYPE) |
|
Display Device Port Connector |
19 PIN HDMI(A TYPE) |
|
HDCP Compliant |
YES |
|
Source Device Selection |
Push Button IR Remote Control |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC signal |
5 Volts P-P(TTL) |
|
Deep Color |
12bit |
|
Single Link Range |
7680x4320 |
|
HDMI Version |
HDMI2.1 |
|
HDR |
Yes |
|
Signal Speed |
Up to 48Gbps |
|
The length of input cable |
≤5M |
|
The length of output cable |
≤5M |
|
The cable standard |
28AWG HDMI2.1 |
|
Vertical Frequency Range |
60Hz |
|
Power Consumption(max) |
1.5 Watts |
|
Operation Temperature |
0℃ TO 70℃ |
|
Working Voltage |
DC 5V |
|
Power Adaptor |
USB Cable |
|
Net Weight (g) |
110 |
|
Dimension: L×W×H(mm) |
102×60.5×16 |
How long is the warranty on your product?
Our product warranty is 1 years.
Can you accept customized products? OEM and ODM?
We accept customization, our mature R&D team can accept all kinds of customization
About customized products, can I customize them according to the use environment?
Our professional engineering team has provided solutions to many Different use requirements clients.
How can i get a sample?
You can contact us directly and we will arrange samples for you.
Can your products be used in the international rail transit industry?
Yes, we can. Our certificates are certified by formal institutions. Our products guarantee reliability, safety and environmental protection.
Can you provide product inspection report service and online video tracking inspection service?
We provide product test report, you can also directly through the phone video tracking product performance test, we will provide you with test project information. However, please note that long time test items need to make an appointment.
