Quick Details
-
Brand Name:
-
KEYPLUS
-
Model Number:
-
HT-22
-
Material:
-
Zinc Alloy
-
Color:
-
Gold/Black
-
Specification:
-
H310mm*W75mm
-
Unlock Ways:
-
Card/Mechenical keys
-
Registered Cards Number:
-
No Limitation
-
Reading Time:
-
<1s
-
Reading Range:
-
<3cm
-
Card Sensor Frequency:
-
13.56MHz
-
Working Voltage:
-
4PCS 1.5V AA Batteries
-
Door Thickness:
-
40mm-55mm(Available for Others)
-
Certification:
-
CE & FCC & ISO9001
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door, Brass door
-
Network:
-
TCP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEYPLUS
-
Model Number:
-
HT-22
-
Material:
-
Zinc Alloy
-
Color:
-
Gold/Black
-
Specification:
-
H310mm*W75mm
-
Unlock Ways:
-
Card/Mechenical keys
-
Registered Cards Number:
-
No Limitation
-
Reading Time:
-
<1s
-
Reading Range:
-
<3cm
-
Card Sensor Frequency:
-
13.56MHz
-
Working Voltage:
-
4PCS 1.5V AA Batteries
-
Door Thickness:
-
40mm-55mm(Available for Others)
-
Certification:
-
CE & FCC & ISO9001
Product Introduction
Description

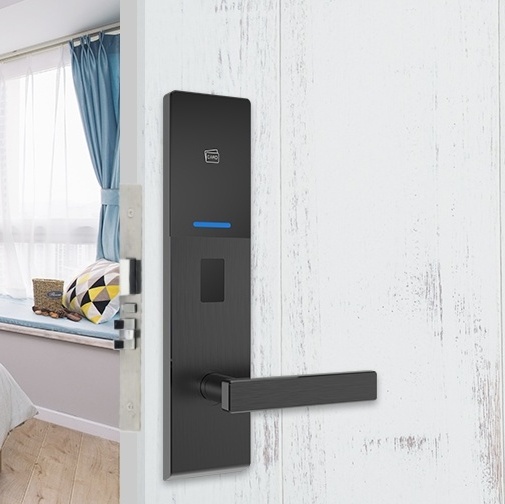

HT-22 is made of aviation aluminum and high precision CNC, with an ultra-thin fashionable design. The Aluminum anodized procedure makes it a smooth texture. The Champagne gold and black color makes it the perfect match for hotel doors.
Features
1. Ultra-thin and cool design
2. Made from aviation aluminum material with high prevision CNC processing
3. USB Emergency power supply to enable lower battery
4. Standard mortise lock
5. Declaration of conformity CE
6. FCC/IC conformity
Functions
1. EU standard lock body, hierarchical management;
2. Made from aviation aluminum material with high prevision CNC processing
3. USB Emergency power supply to enable lower battery
4. Standard mortise lock
5. Declaration of conformity CE
6. FCC/IC conformity
Functions
2. Precise coined panel, no artificial riveting parts;
3. Alarm for unlocking, low power and illegal opening;
4. The lock information will not be lost when power off;
5. A clock inside the lock controls the key card's using time;
6. The circuit has been damp proof and dustproof processed before shipping;
7. Antistatic support;
8. Fit door thickness: 40mm~55mm;
Technical Specifications
|
Product Name
|
Hotel Locks
|
|
Brand
|
KEYPLUS
|
|
Model Number
|
HT-22
|
|
Ways to Unlock
|
Mifare Card/Mechenical keys
|
|
Size
|
H310mm*W75mm
|
|
Material
|
Zinc Alloy
|
|
Color
|
Gold/Black
|
|
Registered Cards Number
|
No limitation
|
|
Reading Time
|
<1s
|
|
Reading Range
|
<3cm
|
|
Opening Records
|
1000
|
|
M1 Sensor Frequency
|
13. 56MHZ
|
|
Static Current
|
<15μA
|
|
Dynamic Current
|
<120mA
|
|
Lower Voltage Warning
|
<4. 8V (250 times at least)
|
|
Working Temperature
|
-10ºC~50ºC
|
|
Working Humidity
|
20%~80%
|
|
Working Voltage
|
4PCS LR6 Alkaline Batteries
|
|
Door Thickness Request
|
40mm~55mm (available for others)
|
|
Door Type
|
Wood door, Steel door, Stainless Steel door, Brass door
|
Product Details Pictures
|
Basic (necessary) components of hotel lock system include
|
|
|
|
Computer
|
It is used to install lock management software, prepared by hotel.
|
|
|
Software
|
Send you for free.It is management system. Work on window XP, 7, 8, and 10.Compatible with most of the common property management
systems(PMS) interface. |
|
|
Card Reader/Authorize Card
|
It is used to read and encode(issue) the card. USB port.
|
|
|
M1 Cards
|
One Lock need at least one pcs card, for open door.
|
|
|
Locks
|
Install on to the door. Independent, wireless, battery-operated. It stores latest 250 events.Perfect reading. Advanced security
performance. |
|
|
Optional components:
|
|
|
|
Handset
|
Data collector It is used to collect the unlocking records from the locks, and read on the computer.
|
|
|
Power-saving switch
|
Device allow the key card to turn on the lighting system and air controller of the room.
|
|
|
Elevator controller
|
Elevator using
|
|
