Quick Details
-
ESC:
-

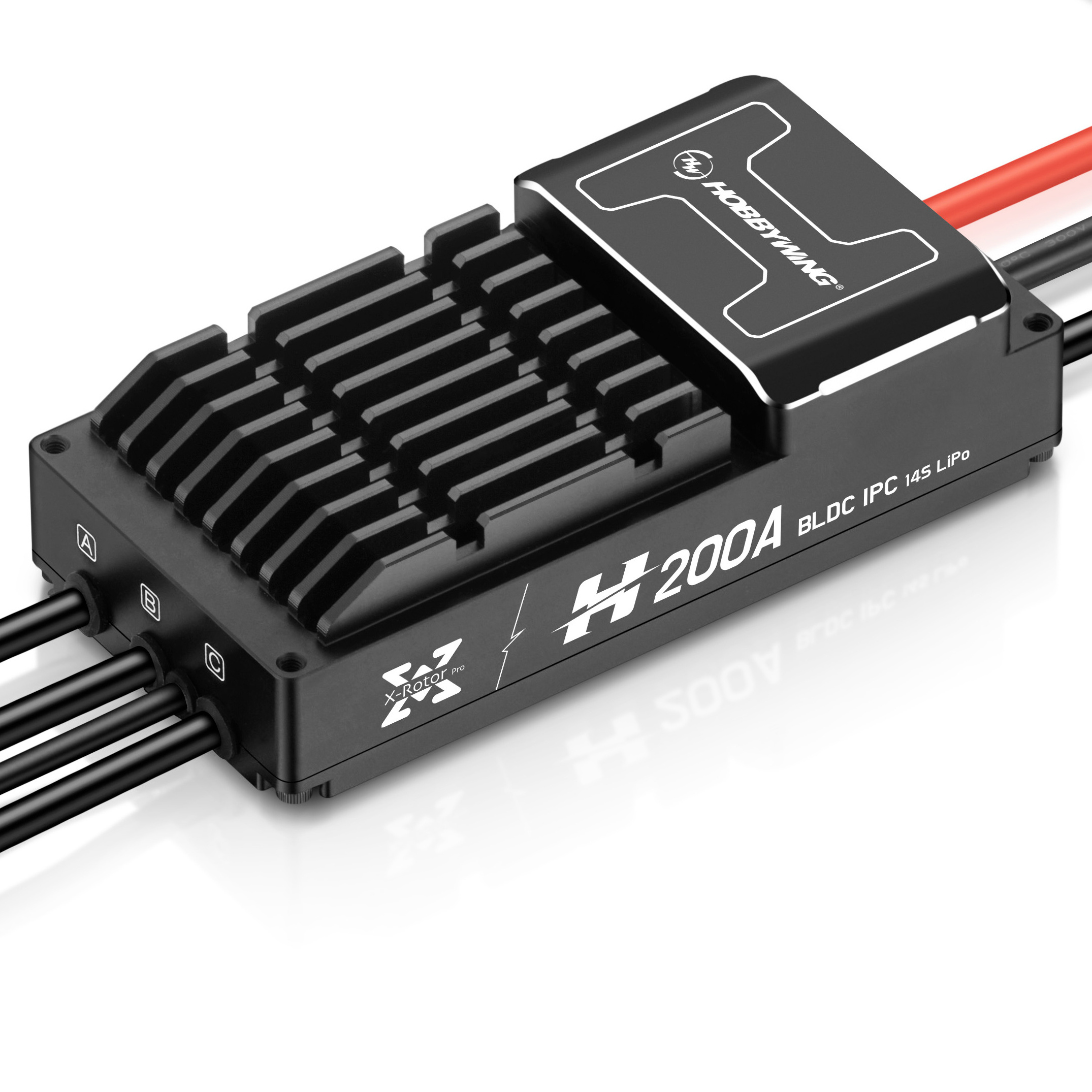

XRotor Pro-H200A-14S-BLDC
-
Input Voltage:
-
6-14S(18-65V)
-
Continuous Current:
-
100A(Good heat dissipation)
-
Peak Current (3 seconds):
-
250A (3S)
-
Operating Temperature:
-
-40℃~65℃
-
Propeller Positioning:
-
Optional
-
Double Throttle Signal:
-
Support(CAN and PWM)
-
Waterproof Rating:
-
IP55(Custom IP67)
-
Operating Pulse Width:
-
1100-1940μS
-
Firmware Upgrade:
-
Support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hobbywing
-
Model Number:
-
XRotor Pro-H200A-14S-BLDC
-
ESC:
-
XRotor Pro-H200A-14S-BLDC
-
Input Voltage:
-
6-14S(18-65V)
-
Continuous Current:
-
100A(Good heat dissipation)
-
Peak Current (3 seconds):
-
250A (3S)
-
Operating Temperature:
-
-40℃~65℃
-
Propeller Positioning:
-
Optional
-
Double Throttle Signal:
-
Support(CAN and PWM)
-
Waterproof Rating:
-
IP55(Custom IP67)
-
Operating Pulse Width:
-
1100-1940μS
-
Firmware Upgrade:
-
Support
Specification
|
ESC
|
XRotor Pro-H200A-14S-BLDC
|
|
Input Voltage
|
6-14S（18-65V）
|
|
Continuous Current
|
100A（Good heat dissipation）
|
|
Peak Current （3 seconds）
|
250A （3S）
|
|
Operating Temperature
|
-40℃~65℃
|
|
Communication Protocol
|
CAN(Custom Serial port)
|
|
Throttle Signal Isolated Mode
|
Throttle And Communication Isolation
|
|
Firmware Upgrade
|
Support
|
|
Digital Throttle
|
Support(CAN)
|
|
PWM Input Signal Level
|
5V/3.3V
|
|
Throttle Signal Frequency
|
50-500Hz
|
|
Operating Pulse Width
|
1100-1940μS
|
|
Double Throttle Signal
|
Support(CAN and PWM)
|
|
Propeller Positioning
|
Optional
|
|
Waterproof Rating
|
IP55(Custom IP67)
|
|
Weight（Without Cable）
|
270g
|
|
Size
|
116*56*31.5mm
|
|
Cable Specification
|
Input: Silicone cable-10AWG-260MM *2
Output: Silicone cable-10AWG-200MM *3
Signal: Shielded cable - 5pin - 450MM * 1
JR-3Pin male connector * 2
|
