Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYB Jintai OEM
-
Model Number:
-
DU DX JDB WB800 WB802 WB700 WB702 JF800 FU
-
Lubricating:
-
Oilless,Dry,Carbon,Covered,Graphie,SL-4,Oil Grease,
-
Bush types:
-
Roll,Roller,Pipe,Solid,Split,Tube,Washer Ring,Plate
-
Standard:
-
DIN 1494, ISO2795, ISO/TS16949
-
Application 1:
-
Water Pump,Engine,Metallurgy,Farm Equipment,Forest Machine
-
Application 2:
-
Motor,Car,Truck,Plane,Fixed Bearings,Furniture,Truck,Updated
-
Application 3:
-
oil and gas industry Auto Parts Bushing,plumbing,machine part,pump
-
Features:
-
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
-
Finishing:
-
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
-
Other products:
-
Oiles Bushing,Ball Cage,Bimtel,Wrapped Bronze Bushing,Cast Brass
-
Samples:
-
charged or free samples, small order acceptable
Quick Details
-
Applicable Industries:
-
Building Material Shops, Machinery Repair Shops, Retail
-
Type:
-
flanged,sleeve,thrust washer,slide pad,plain,skateboard
-
Material:
-
Brass,Graphite,Bimetal,SS,Copper,Steel,PTFE,Bronze
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYB Jintai OEM
-
Model Number:
-
DU DX JDB WB800 WB802 WB700 WB702 JF800 FU
-
Lubricating:
-
Oilless,Dry,Carbon,Covered,Graphie,SL-4,Oil Grease,
-
Bush types:
-
Roll,Roller,Pipe,Solid,Split,Tube,Washer Ring,Plate
-
Standard:
-
DIN 1494, ISO2795, ISO/TS16949
-
Application 1:
-
Water Pump,Engine,Metallurgy,Farm Equipment,Forest Machine
-
Application 2:
-
Motor,Car,Truck,Plane,Fixed Bearings,Furniture,Truck,Updated
-
Application 3:
-
oil and gas industry Auto Parts Bushing,plumbing,machine part,pump
-
Features:
-
Wear,Dry,Low Resistance bush,Harden,Maintenance free bushing
-
Finishing:
-
bronze-plating bush or tin-plating bushing,no Pb,lead free bushing
-
Other products:
-
Oiles Bushing,Ball Cage,Bimtel,Wrapped Bronze Bushing,Cast Brass
-
Samples:
-
charged or free samples, small order acceptable
bimetal bearing sae 799 bronze bushing CuPb24Sn4 bronz alloy CuPb10Sn10 sae 797 CuPb30 sae 48 AlSn20Cu sae 783 jf bi metal bush
bimetal bearing sae 799 bronze bushing CuPb24Sn4 bronz alloy CuPb10Sn10 sae 797 CuPb30 sae 48 AlSn20Cu sae 783 jf bi metal bush

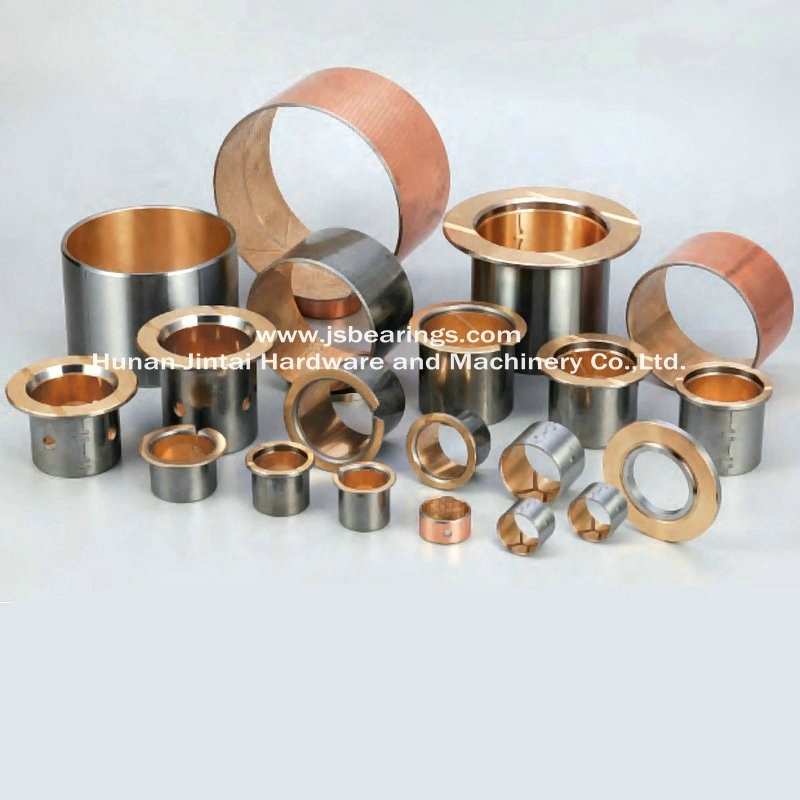

BIMETAL BUSHING
|
Material: 1. Steel + Bronze alloy (CuPb10Sn10) + PTFE 2. Steel + Bronze alloy (CuPb10Sn10) 3. Steel + Bronze alloy (CuSn4Pb24) 4. Steel + Bronze alloy (CuPb24Sn) 5. Steel + Alloy stage (AlSn20Cu) 6. Steel + Bronze alloy (CuPb30) |
Application: Mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment. Construction machines,chassis,apron wheels etc .
Get
CATALOGUE
or
PRICE
, please contact by e -
DU SF-1 BUSHING (PTFE)
|
Material: 1. Steel + Bronze powder + PTFE + Pb + Polymer 2. Steel + Bronze powder + PTFE + Polymer - Normally Used 3. Bronze + Bronze powder + PTFE + Polymer 4. Stainless steel + Bronze powder + PTFE + Polymer 5. Stainless steel + PTFE + Polymer 6. Carbon steel + Sintered bronze powder + PTFE + MoS2 |
|
Structure
|
PTFE with lead/Cu/Fibre : 0.01-0.03mm |
|
Porous bronze : 0.2-0.3mm |
|
|
Steel backing : 0.7-2.3mm |
|
|
Tin-plating 0.005mm or copper plating 0.008mm |
|
Type |
Load capacity(N/mm2) |
PV limit(N/mm2*m/s) |
Speed limit (in oil) |
Temp.limit |
μ Frictio Coef. |
Themal conductivity |
Linear expansion |
|||
|
Static |
Dynamic |
Oscillating |
Oil |
Dry |
(m/s) |
(℃) |
(W/MK) |
|||
|
SF-1X |
250 |
140 |
60 |
50 |
3.6 |
5.0 |
-195~270 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1T |
250 |
140 |
60 |
60 |
4.3 |
10 |
-195~260 |
0.03~0.18 |
13 |
11*10(-6)/k |
|
SF-1P |
250 |
140 |
60 |
50 |
1.8 |
2.5 |
-195~270 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1W |
250 |
140 |
60 |
50 |
3.6 |
5.0 |
-195~300 |
0.04~0.20 |
13 |
11*10(-6)/k |
|
SF-1B |
250 |
140 |
60 |
60 |
4.3 |
5.0 |
-195~270 |
0.04~0.18 |
18 |
21*10(-6)/k |
|
SF-1D |
250 |
140 |
60 |
50 |
3.8 |
3.0 |
-195~270 |
0.04~0.18 |
16 |
15*10(-6)/k |
|
SF-1S |
250 |
140 |
60 |
50 |
3.6 |
4.5 |
-195~270 |
0.04~0.20 |
16 |
15*10(-6)/k |
|
SP-1SS |
250 |
140 |
60 |
40 |
3.0 |
2.5 |
-195~270 |
0.04~0.25 |
13 |
15*10(-6)/k |
Application:
Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.
DX SF-2 BUSHING (POM)
|
Material: 1. Steel + Bronze powder + POM + Pb 2. Steel + Bronze powder + POM - Normally Used |
|
Structure
|
POM with/without lead : 0.3-0.5mm |
|
Porous bronze : 0.2-0.3mm |
|
|
Steel backing : 0.4-2.2mm |
|
|
Tin-plating 0.005mm or copper plating 0.008mm |
Application:
Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.
BRONZE GRAPHITE BUSHING
Material:
1. CuZn25Al6Fe3Mn3 + Graphite
2. ZCuAl9Fe4Ni4Mn2 + Graphite
3. ZCuSn5AlPb5Zn5 + Graphite
4. ZCuSn10Zn2 + Graphite
5. HT250# Cast Iron + Graphite
6. CuZn25Al6Fe3Mn3 (High-stress Brass)
Application: solid brass bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc
WRAPPED BRONZE BUSHING
Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
3. CuZn31Si
4. Bronze(graphite inside)
5 . All kinds of brass,copper,bronze material
Industrial: Widely used in construction machinery, agricultural machinery and so on.
SINTERED BRONZE BUSHING MOTOR FAN BUSHING CAST IRON BEARING
|
Performance index |
Data |
|
Maximum load capacity |
150 N/mm2 |
|
Temperature range |
-60~+200 ℃ |
|
Maximum sliding speed |
2.5 m/s |
|
Alloy material |
CuSn6-6-3 |
|
Maximum PV value |
2.45 N/mm2*m/s |
OTHER SLIDE BEARING
